Rear
Panel
BNC
Connectors
DESCRIPTION
The
electrical
characteristics
and
requirements
of
the
rear
panel
BNC
connectors
are
listed
in
this
Figure.
PANEL
LAYOUT
0.5V/GHZ
FREQUENCY
STANDARD
SWEEP
OUTPUT
PEN
LIFT
OUTPUT
10MHz
REF
OUTPUT
NEG
Z-AXIS
BLANK
BLANK/MKRS
STOP
SWP
IN/OUT
EXT
TRIGGER
INPUT
8755C
ALT
SWP
INTERFACE
FUNCTIONS
0.5V/GHz
outputs
a
voltage
that
is
proportional
to
the
RF
output
frequency,
with
a
ratio
of
0.5
volt
output
per
1
GHz
RF
frequency.
Load
impedance
should
be
>4
kft.
Accuracy
is
0.5
V/GHz±1%±2
mV.
An
output
voltage
ratio
of
1
volts/GHz,
to
a
maximum
of
19V,
can
be
achieved
by
adding
two
jumpers
on
the
A28
SYTM
board
(see
Section
VIII).
SWEEP
OUTPUT
is
provided
by
a
rear
panel
BNC
connector,
and
an
identical
front
panel
BNC
connector.
The
output
voltage
range
for
this
connector
is
0
to
+
10
volts
dc.
When
the
HP
8340B/41B
is
sweeping,
the
SWEEP
OUTPUT
is
0
Vdc
at
the
beginning
of
the
sweep
and
+10
Vdc
at
the
end
of
the
sweep
regardless
of
sweep
width.
In
CW
mode,
the
SWEEP
OUTPUT
ranges
from
0
Vdc
at
the
10
MHz
minimum
frequency
of
the
HP
8340B/41B,
to
10
Vdc
at
the
26.5
GHz
maximum
frequency
(20
GHz
with
HP
8341B),
with
a
proportional
voltage
for
frequencies
between
10
MHz
-
26.5
GHz
(20
GHz
with
HP
8341B).
Pressing
[CW]
then
[MANUAL]
locks
the
CW
frequency
but
allows
a
full-range
voltage
output
from
the
SWEEP
OUTPUT,
controlled
by
the
rotary
[KNOB]
(useful,
for
example,
when
scaling
an
X-Y
recorder).
The
output
impedance
at
this
SWEEP
OUTPUT
connector
is
nominally
1
kft.
Figure
3-13
also
describes
SWEEP
OUTPUT.
10
MHz
REF
OUTPUT
provides
a
0
dBm,
10
MHz
signal
derived
from
the
internal
frequency
standard
of
the
HP
8340B/41B.
Test
instruments
are
connected
to
this
50
ft
BNC
connector
while
the
10
MHz
crystal
oscillator
is
being
adjusted
(as
described
in
Section
V,
Adjustments,
of
this
Manual),
or
this
can
be
the
master
clock
reference
output
for
a
network
of
instruments.
Figure

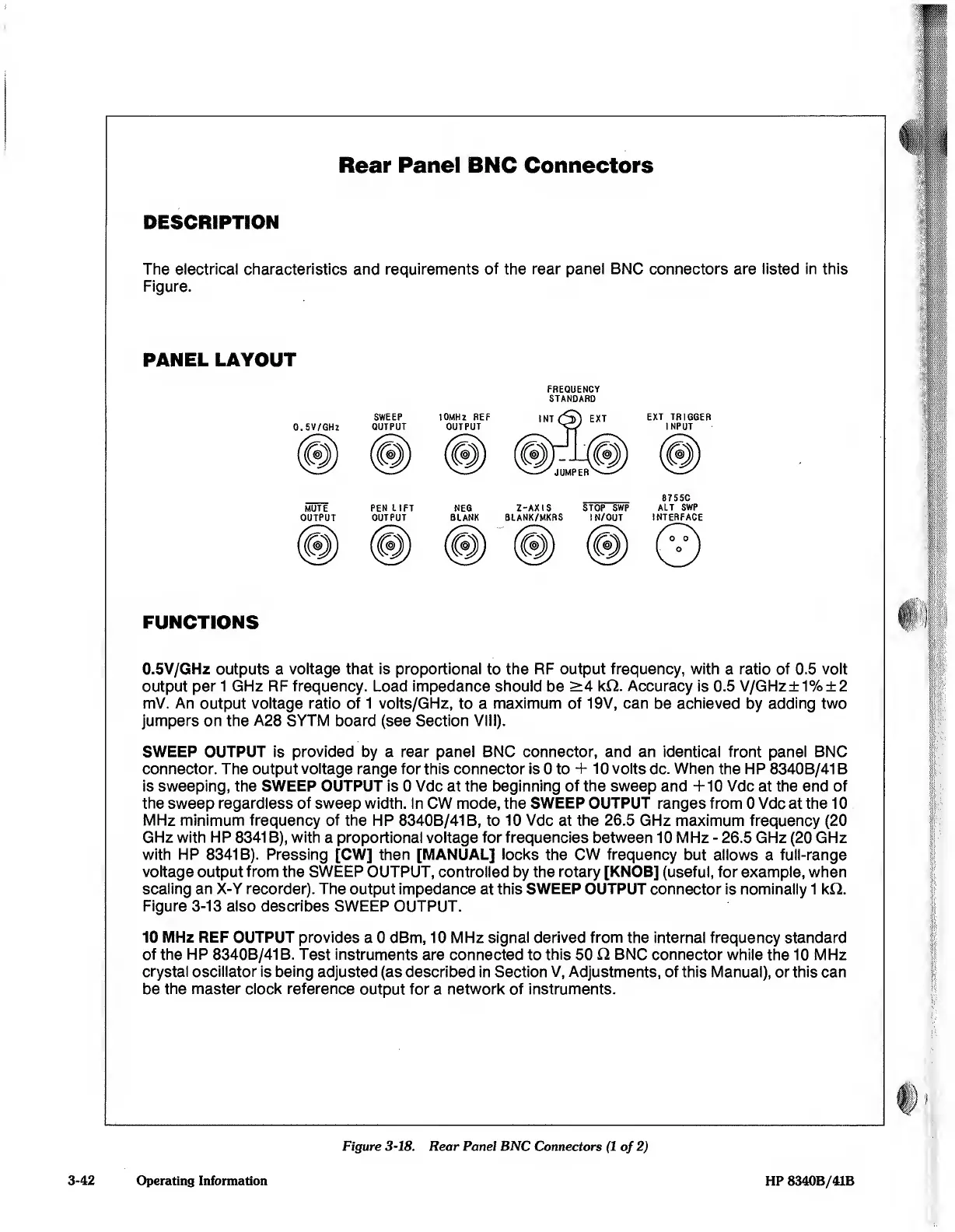

3-18.
Rear
Panel
BNC
Connectors
(1
of
2)
3-42
Operating
Information
HP
8340B/4IB

Table of Contents
