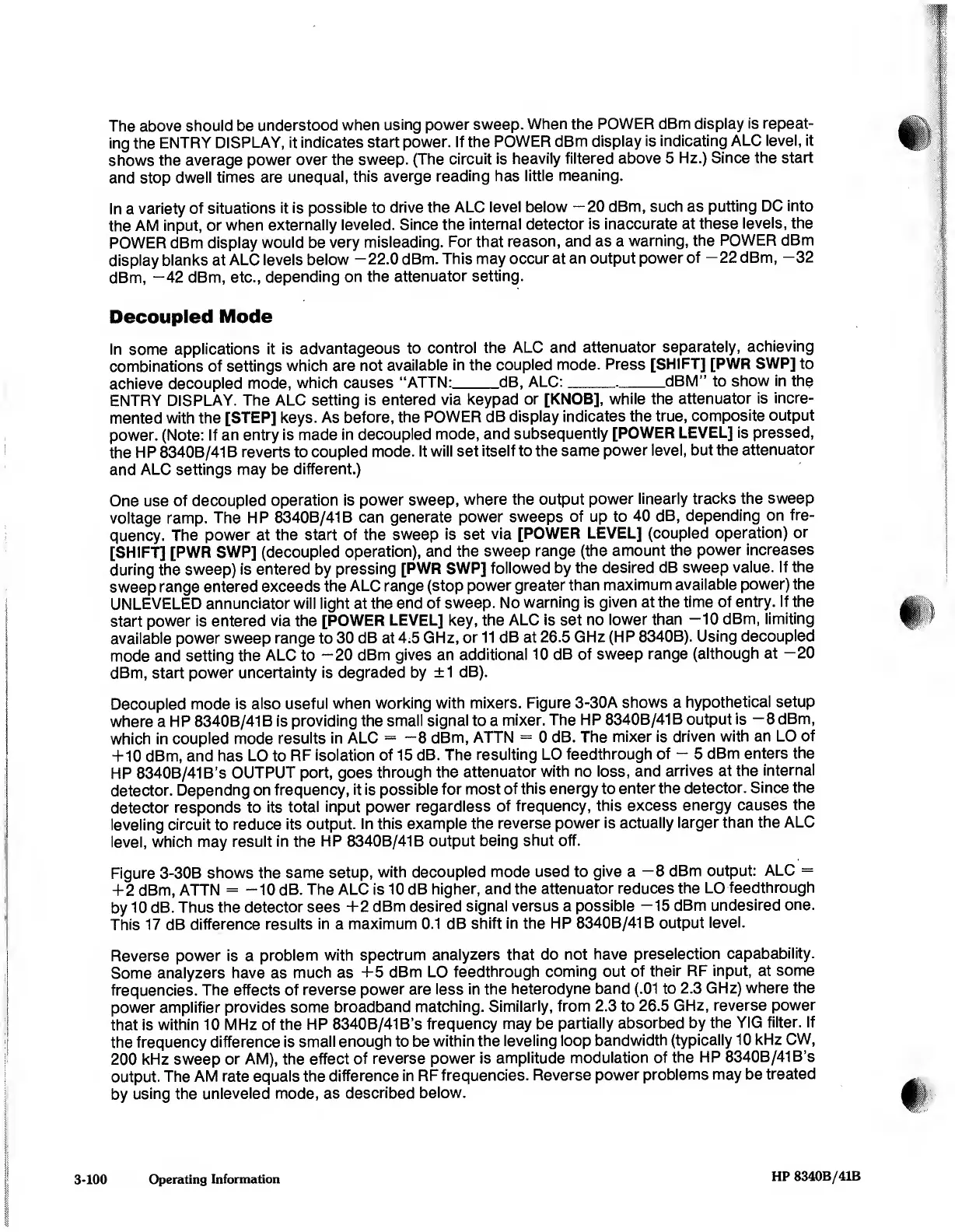

The
above
should
be
understood
when
using
power
sweep.
When
the
POWER
dBm
display
is
repeat¬
ing
the
ENTRY
DISPLAY,
it
indicates
start
power.
If
the
POWER
dBm
display
is
indicating
ALC
level,
it
shows
the
average
power
over
the
sweep.
(The
circuit
is
heavily
filtered
above
5
Hz.)
Since
the
start
and
stop
dwell
times
are
unequal,
this
averge
reading
has
little
meaning.
In
a
variety
of
situations
it
is
possible
to
drive
the
ALC
level
below
-20
dBm,
such
as
putting
DC
into
the
AM
input,
or
when
externally
leveled.
Since
the
internal
detector
is
inaccurate
at
these
levels,
the
POWER
dBm
display
would
be
very
misleading.
For
that
reason,
and
as
a
warning,
the
POWER
dBm
display
blanks
at
ALC
levels
below
-22.0
dBm.
This
may
occur
at
an
output
power
of
-22
dBm,
-32
dBm,
-42
dBm,
etc.,
depending
on
the
attenuator
setting.
Decoupled
Mode
In
some
applications
it
is
advantageous
to
control
the
ALC
and
attenuator
separately,
achieving
combinations
of
settings
which
are
not
available
in
the
coupled
mode.
Press
[SHIFT]
[PWR
SWP]
to
achieve
decoupled
mode,
which
causes
“ATTN:_dB,
ALC:__._dBM’’
to
show
in
the
ENTRY
DISPLAY.
The
ALC
setting
is
entered
via
keypad
or
[KNOB],
while
the
attenuator
is
incre¬
mented
with
the
[STEP]
keys.
As
before,
the
POWER
dB
display
indicates
the
true,
composite
output
power.
(Note:
If
an
entry
is
made
in
decoupled
mode,
and
subsequently
[POWER
LEVEL]
is
pressed,
the
HP
8340B/41B
reverts
to
coupled
mode.
It
will
set
itself
to
the
same
power
level,
but
the
attenuator
and
ALC
settings
may
be
different.)
One
use
of
decoupled
operation
is
power
sweep,
where
the
output
power
linearly
tracks
the
sweep
voltage
ramp.
The
HP
8340B/41B
can
generate
power
sweeps
of
up
to
40
dB,
depending
on
fre¬
quency.
The
power
at
the
start
of
the
sweep
is
set
via
[POWER
LEVEL]
(coupled
operation)
or
[SHIFT]
[PWR
SWP]
(decoupled
operation),
and
the
sweep
range
(the
amount
the
power
increases
during
the
sweep)
is
entered
by
pressing
[PWR
SWP]
followed
by
the
desired
dB
sweep
value.
If
the
sweep
range
entered
exceeds
the
ALC
range
(stop
power
greater
than
maximum
available
power)
the
UNLEVELED
annunciator
will
light
at
the
end
of
sweep.
No
warning
is
given
at
the
time
of
entry.
If
the
start
power
is
entered
via
the
[POWER
LEVEL]
key,
the
ALC
is
set
no
lower
than
—10
dBm,
limiting
available
power
sweep
range
to
30
dB
at
4.5
GHz,
or
11
dB
at
26.5
GHz
(HP
8340B).
Using
decoupled
mode
and
setting
the
ALC
to
—20
dBm
gives
an
additional
10
dB
of
sweep
range
(although
at
—20
dBm,
start
power
uncertainty
is
degraded
by
±1
dB).
Decoupled
mode
is
also
useful
when
working
with
mixers.
Figure
3-30A
shows
a
hypothetical
setup
where
a
HP
8340B/41B
is
providing
the
small
signal
to
a
mixer.
The
HP
8340B/41B
output
is
—8
dBm,
which
in
coupled
mode
results
in
ALC
=
8
dBm,
ATTN
=
0
dB.
The
mixer
is
driven
with
an
LO
of
+10
dBm,
and
has
LO
to
RF
isolation
of
15
dB.
The
resulting
LO
feedthrough
of
5
dBm
enters
the
HP
8340B/41B’s
OUTPUT
port,
goes
through
the
attenuator
with
no
loss,
and
arrives
at
the
internal
detector.
Dependng
on
frequency,
it
is
possible
for
most
of
this
energy
to
enter
the
detector.
Since
the
detector
responds
to
its
total
input
power
regardless
of
frequency,
this
excess
energy
causes
the
leveling
circuit
to
reduce
its
output.
In
this
example
the
reverse
power
is
actually
larger
than
the
ALC
level,
which
may
result
in
the
HP
8340B/41B
output
being
shut
off.
Figure
3-30B
shows
the
same
setup,
with
decoupled
mode
used
to
give
a
—8
dBm
output:
ALC
=
+2
dBm,
ATTN
=
—10
dB.
The
ALC
is
10
dB
higher,
and
the
attenuator
reduces
the
LO
feedthrough
by
10
dB.
Thus
the
detector
sees
+2
dBm
desired
signal
versus
a
possible
-15
dBm
undesired
one.
This
17
dB
difference
results
in
a
maximum
0.1
dB
shift
in
the
HP
8340B/41B
output
level.
Reverse
power
is
a
problem
with
spectrum
analyzers
that
do
not
have
preselection
capabability.
Some
analyzers
have
as
much
as
+5
dBm
LO
feedthrough
coming
out
of
their
RF
input,
at
some
frequencies.
The
effects
of
reverse
power
are
less
in
the
heterodyne
band
(.01
to
2.3
GHz)
where
the
power
amplifier
provides
some
broadband
matching.
Similarly,
from
2.3
to
26.5
GHz,
reverse
power
that
is
within
10
MHz
of
the
HP
8340B/41B’s
frequency
may
be
partially
absorbed
by
the
YIG
filter.
If
the
frequency
difference
is
small
enough
to
be
within
the
leveling
loop
bandwidth
(typically
10
kHz
CW,
200
kHz
sweep
or
AM),
the
effect
of
reverse
power
is
amplitude
modulation
of
the
HP
8340B/41B’s
output.
The
AM
rate
equals
the
difference
in
RF
frequencies.
Reverse
power
problems
may
be
treated
by
using
the
unleveled
mode,
as
described
below.
3-100
Operating
Information
HP
8340B/41B
