Local port operation 21
Keystroke Description
Right or Left arrows Moves the cursor between columns. When editing a text box, these keys move
the cursor within the column.
Page Up or Page Down Pages up and down through Name and Port lists.
Ctrl + Ctrl, Shift + Shift
or Alt + Alt
Activates OSD.
Home or End Moves the cursor to the top or bottom of a list.
Backspace Erases characters in a text box.
Delete Deletes current selection in the Scan dialog box or characters in a text box.
Shift, Delete Deletes from current selection to all lines below it when editing a scan list.
Numbers Adds numbers from the keyboard or keypad.
Caps Lock Disables the user. (Use the Shift key to change case.)
Configuring the Setup dialog box

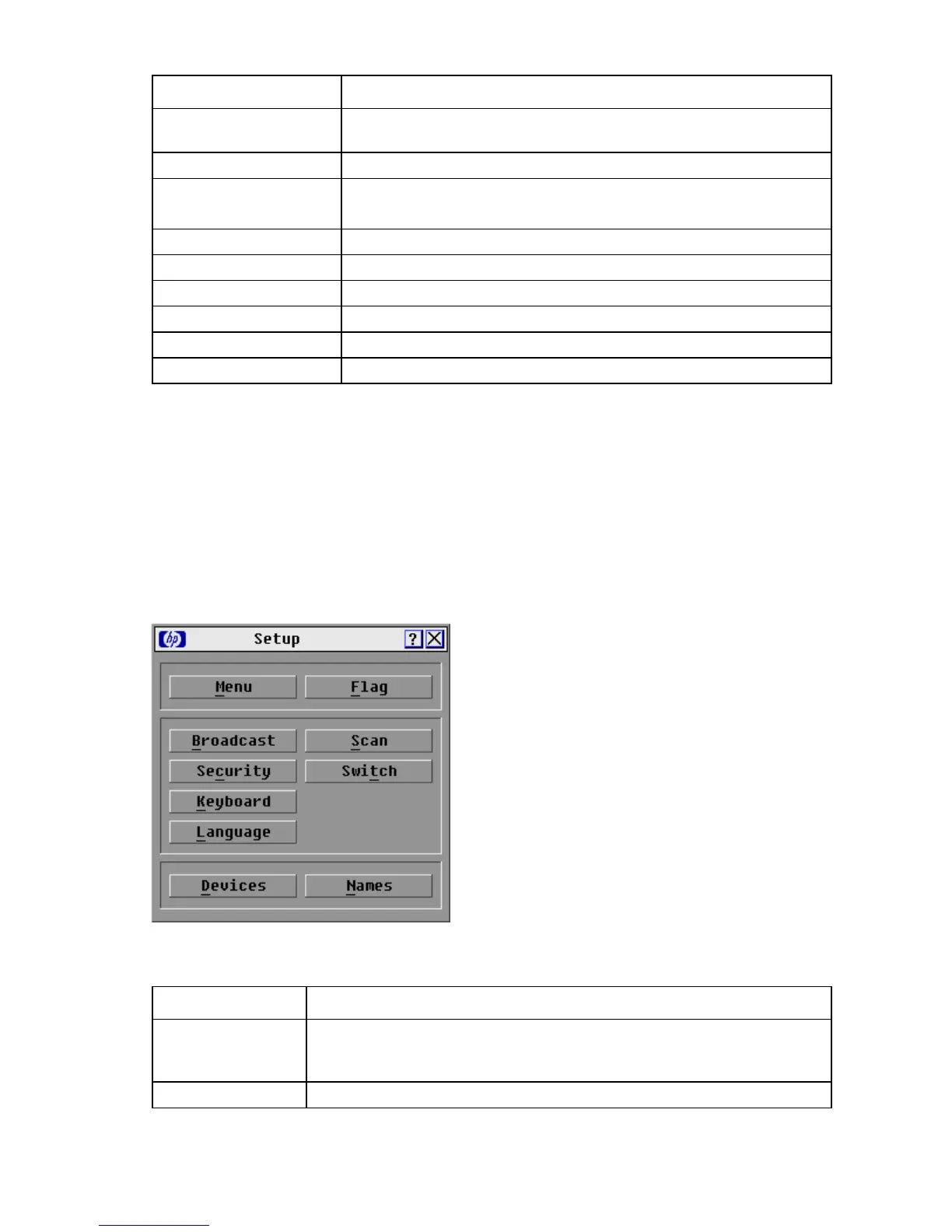

You can configure the console switch and manage routine tasks for your servers from the Setup dialog
box ("Accessing the Setup dialog box" on page 21) within the OSD.
Accessing the Setup dialog box
From the Main dialog box ("Accessing the Main dialog box" on page 17), click Setup. The Setup dialog
box appears.
Managing routine tasks for servers
Button Function
Menu Changes the server listing between numerically by port or EID number and
alphabetically by name. After you press Print Scrn, changes the delay time before
the Main dialog box appears.
Flag Changes the display, timing, color, and location of the status flag.
