HP Compaq Elite 8300 User Manual

Replacing drives
Replacing the hard disc drive with a 3.5-inch hard disc drive or a single
2.5-inch drive
The hard disc drive is located behind the access panel on the left side of the computer (when viewed
from behind). The drive is housed in a removable cage.

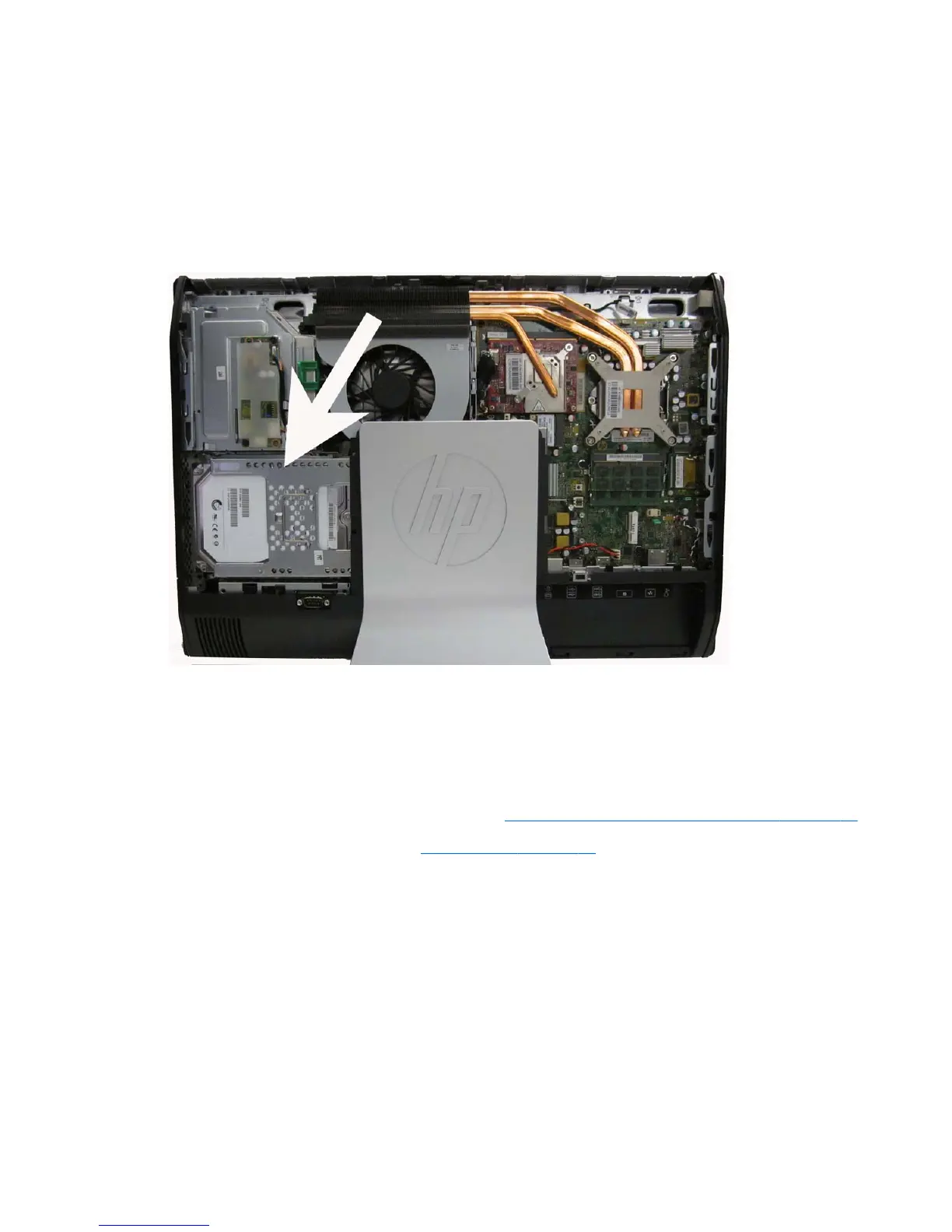

Figure 7-16 Hard drive location
If you choose to install an optional 2.5-inch solid state drive (SSD) or self-encrypting drive (SED), you
will need a drive adapter. The drive adapter is not included in the 2.5-inch SSD spare parts kits.
The first hard drive data cable connects to the SATA0 and SATA PWR0 system board connectors.
The second hard drive data cable connects to the SATA1 and SATA PWR1 system board
connectors.
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 38).
2. Remove the access panel (see
Access panel on page 42).
Replacing drives 49

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
