HP Compaq Elite 8300 User Manual

Memory
Memory modules are located on the right side of the computer (viewed from behind). The computer
has two memory slots.

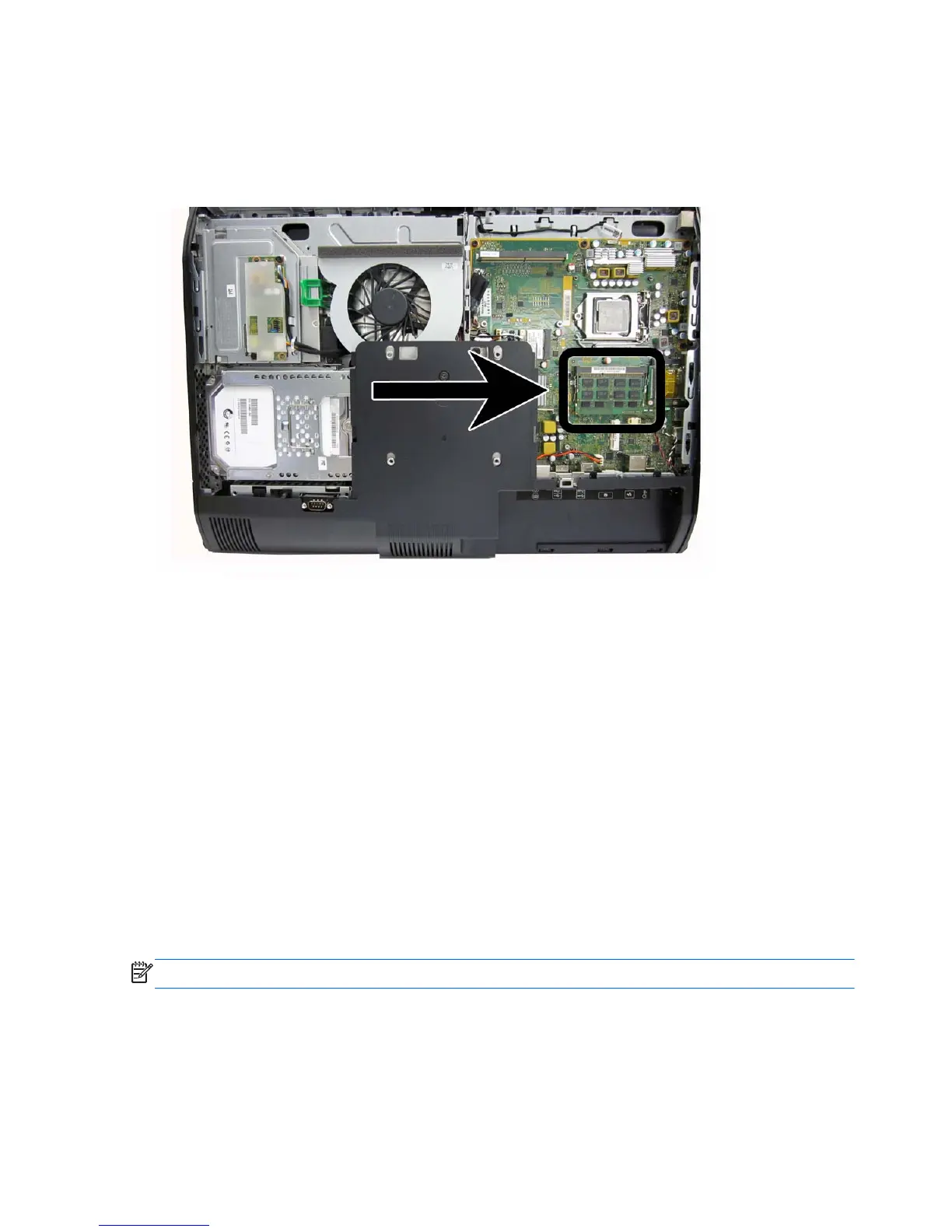

Figure 7-28 Memory module location
For proper system operation, the SODIMMs must be:
●
industry-standard 204-pin
●
unbuffered non-ECC PC3-10600 DDR3-1600 MHz-compliant
●
1.5 volt DDR3-SDRAM SODIMMs
The DDR3-SDRAM SODIMMs must also:
●
support CAS latency 11 DDR3 1600 MHz (11-11-11 timing)
●
contain the mandatory Joint Electronic Device Engineering Council (JEDEC) specification
In addition, the computer supports:
●
1-Gbit, 2-Gbit, and 4-Gbit non-ECC memory technologies
●
single-sided and double-sided SODIMMS
●
SODIMMs constructed with x8 and x16 SDRAMs; SODIMMs constructed with x4 SDRAMs are
not supported
NOTE: The system will not operate properly if you install unsupported SODIMM memory.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the SODIMMs are installed. Refer to the following table to identify the SODIMM
channel locations.
56 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
