Side panels
The side panels are located one each side of the computer. They are secured with tabs, and the
removal procedures are similar for both panels.

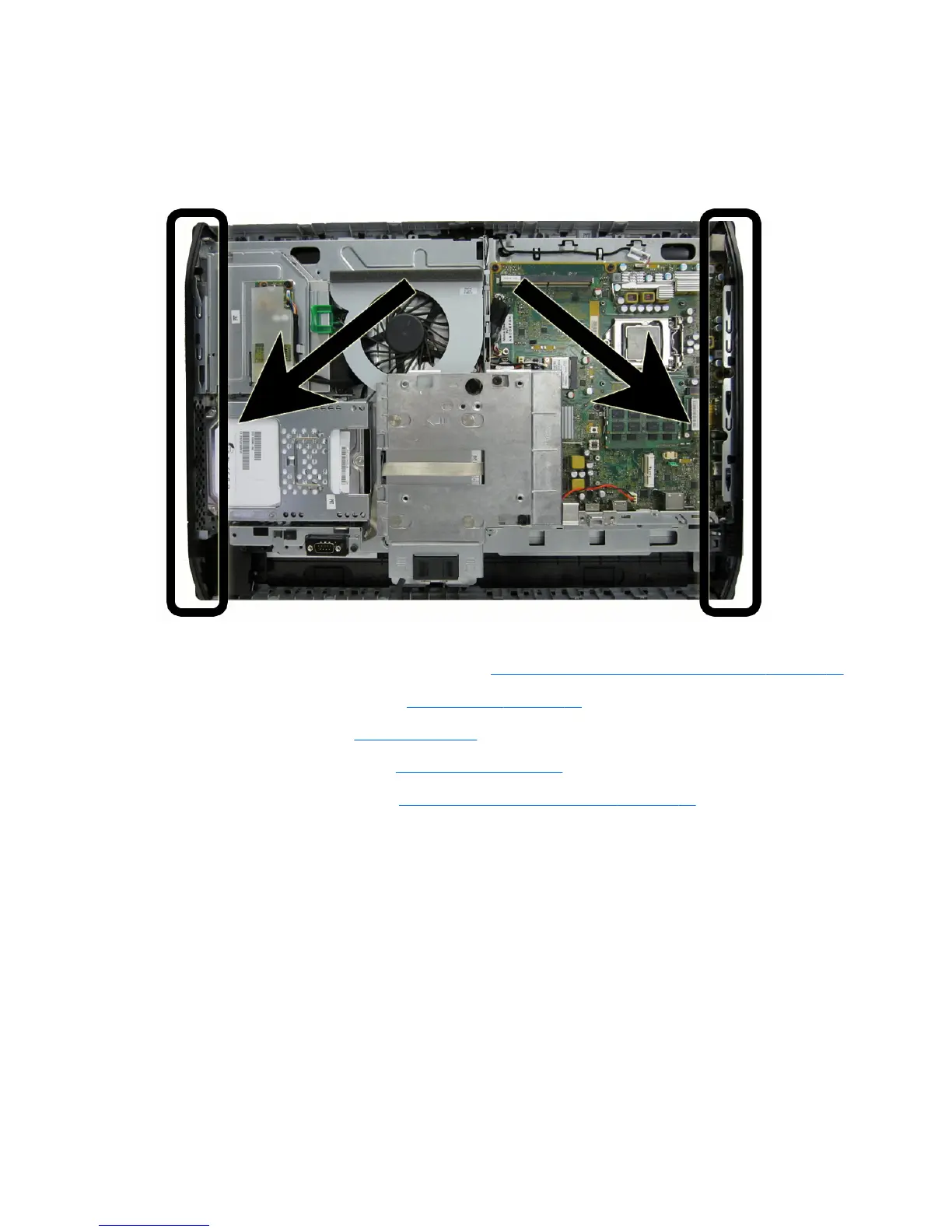

Figure 7-59 Side panel locations
To remove the side panels:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 38).
2. Remove the access panel (see
Access panel on page 42).
3. Remove the stand (see
Stand on page 44).
4. Remove the lower panel (see
Lower panel on page 46).
5. Remove the optical drive (see
Replacing the optical disc drive on page 53).
6. Push the side panel out from the bottom (1).
84 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
