Touch sensor board
NOTE: The touch sensor board is located on the right side of the computer (viewed from behind)
above the system board. It is secured with one Torx screw and has three connectors.
Touch sensor boards are spared with the touch panel spare part kit. Be sure to replace the touch
sensor board when replacing a touch display panel.

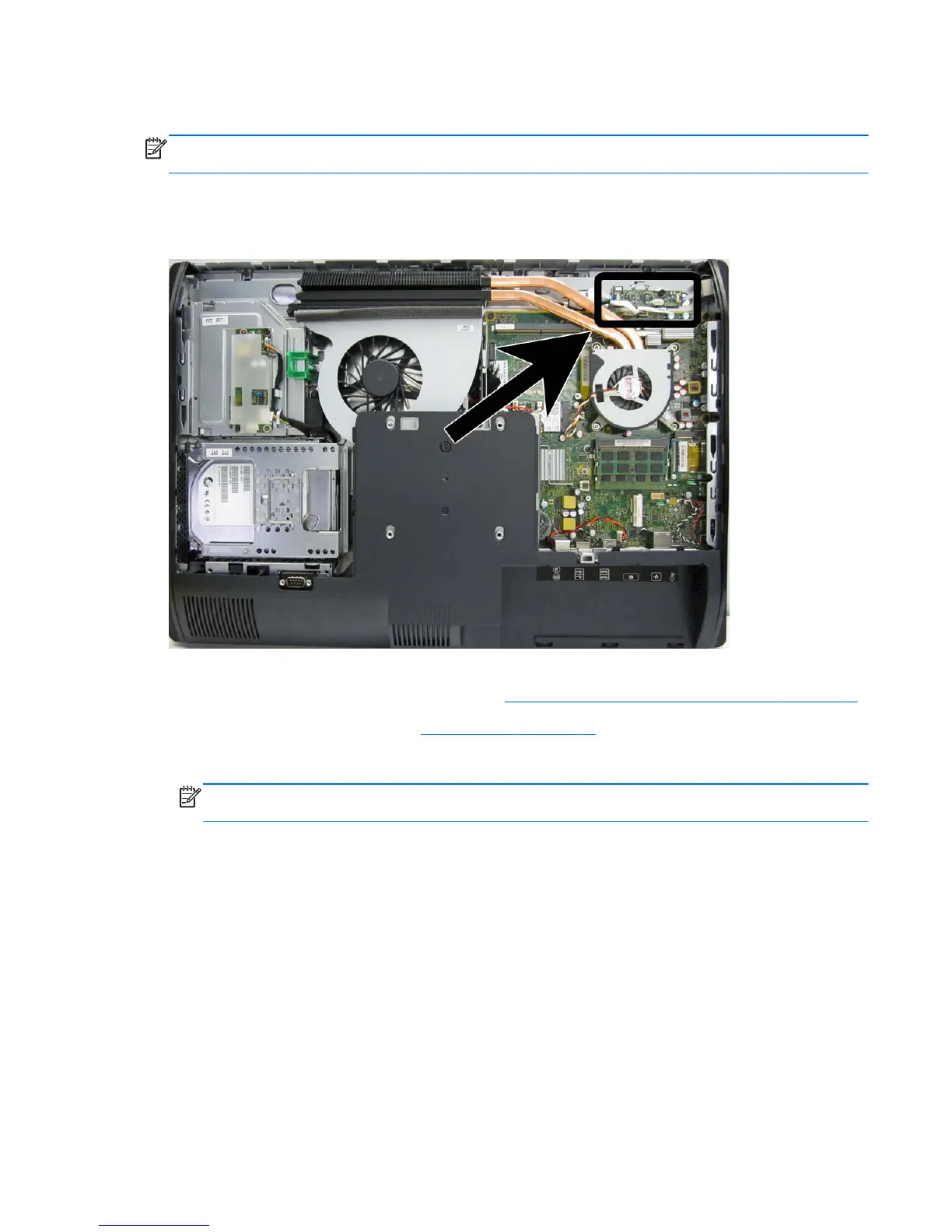

Figure 7-42 Touch sensor board location
To remove the touch sensor board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 38).
2. Remove the access panel (see
Access panel on page 42).
3. Disconnect the cables from the three connectors on the board (1).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires or cables.
Touch sensor board 69

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
