HP Compaq Elite 8300 User Manual

Heat sinks – Graphics board and processor
Separate heat sinks cool the discrete graphic board (select models only) and the processor. If
installed, you must remove the smaller graphics heat sink before you can remove the larger
processor heat sink.
The graphics heat sink is secured with three Torx screws – two captured, one not captured. The heat
sinks share the one non-captured screw.
The processor heat sink is secured with five Torx screws – four captured, one shared, not captured.
Model 8300 may include a fan attached to the heat sink.

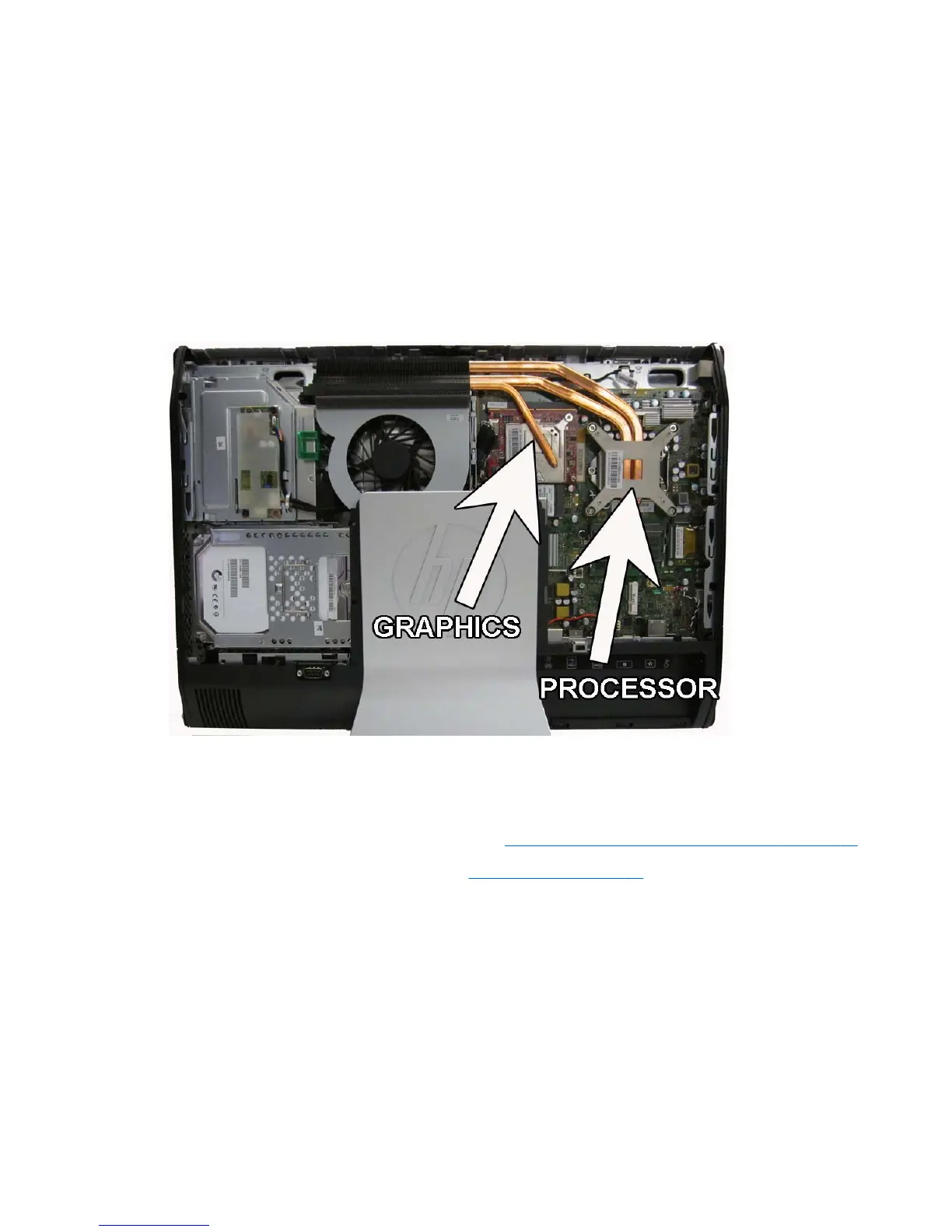

Figure 7-44 Heat sink locations
Graphics heat sink
To remove the heat sink:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 38).
2. Remove the center access panel (see
Access panel on page 42).
3. Remove the black Torx screw from the top of the heat sink (1).
Heat sinks – Graphics board and processor 71

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
