HP Compaq Elite 8300 User Manual

Converter board
The converter board is located on the left side of the computer (viewed from behind) under the main
rear cover. It is secured with two Torx screws and has two connectors.
Use the same converter spare part for all display panels; however, you must change jumper settings
on the board based on the display panel.

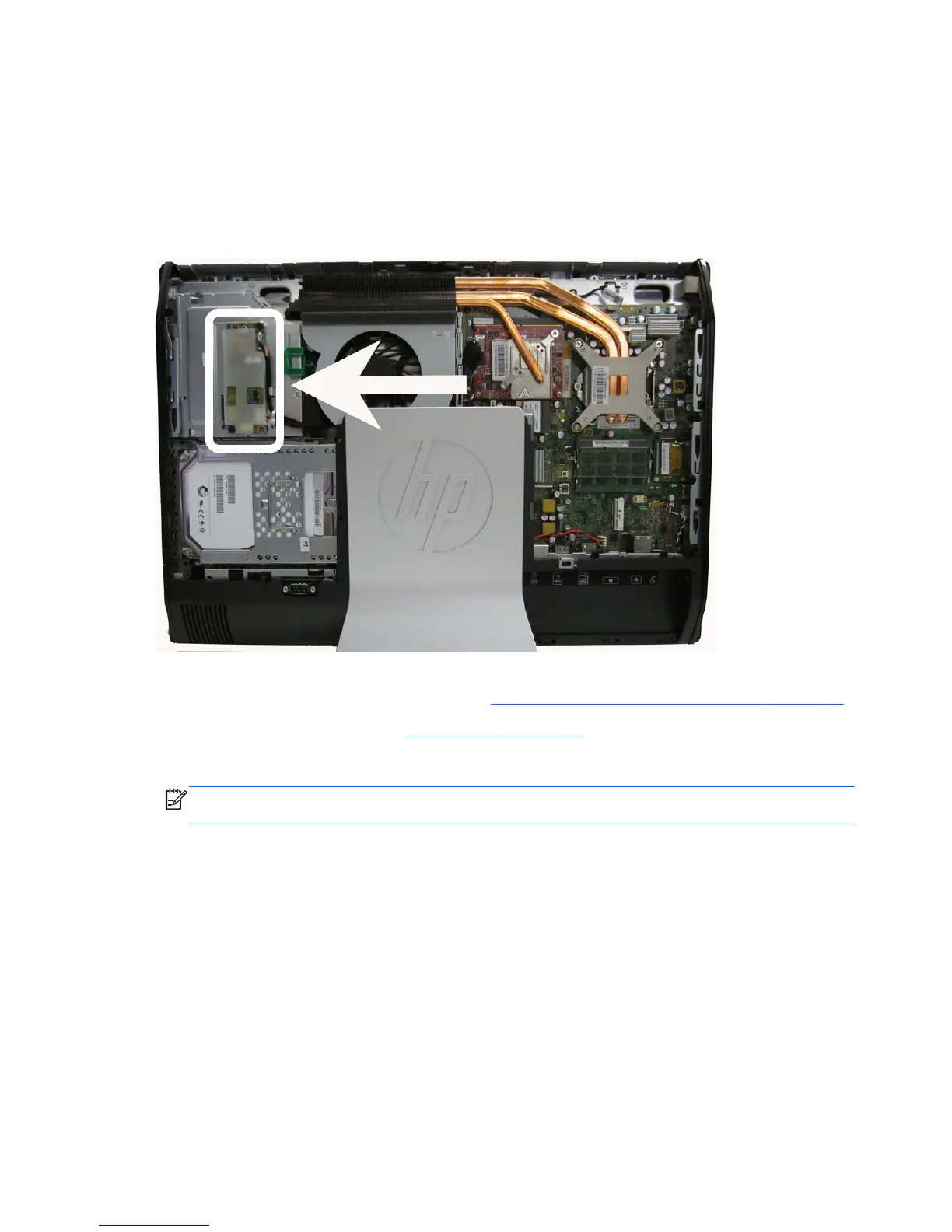

Figure 7-40 Converter board location
To remove the converter board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 38).
2. Remove the access panel (see
Access panel on page 42).
3. Disconnect the two cables from the board (1).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires.
66 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 Specifications

General

Operating temperature (T-T)	10 - 35 °C
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
HDD size	3.5 \
Dimensions (WxDxH)	178 x 445 x 448 mm
Microphone in	Yes
HDMI ports quantity	0
PS/2 ports quantity	2
USB 2.0 ports quantity	6
PCI slots	3
Chassis type	Mini-Tower
Product type	PC barebone
Product color	Gray
Audio system	HD
Motherboard chipset	Intel® Q77 Express
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Power supply	320 W
Operating system installed	No
Processor model	-
Processor family	Intel

Weight and Dimensions

Weight	11200 g
