6–14 Maintenance and Service Guide
Removal and Replacement Procedures
6.8 External Memory Module
1. Prepare the computer for disassembly (refer to Section 6.3).
2. Position the computer with the front panel toward you.
3. Loosen the PM1.5×4.0 screw 1 that secures the memory
module compartment cover to the computer.
4. Lift the right side of the cover 2 up and swing it to the left.
5. Remove the memory module compartment cover.
✎
The memory module compartment cover is included in the
Miscellaneous Plastics Kit, spare part number 379812-001.

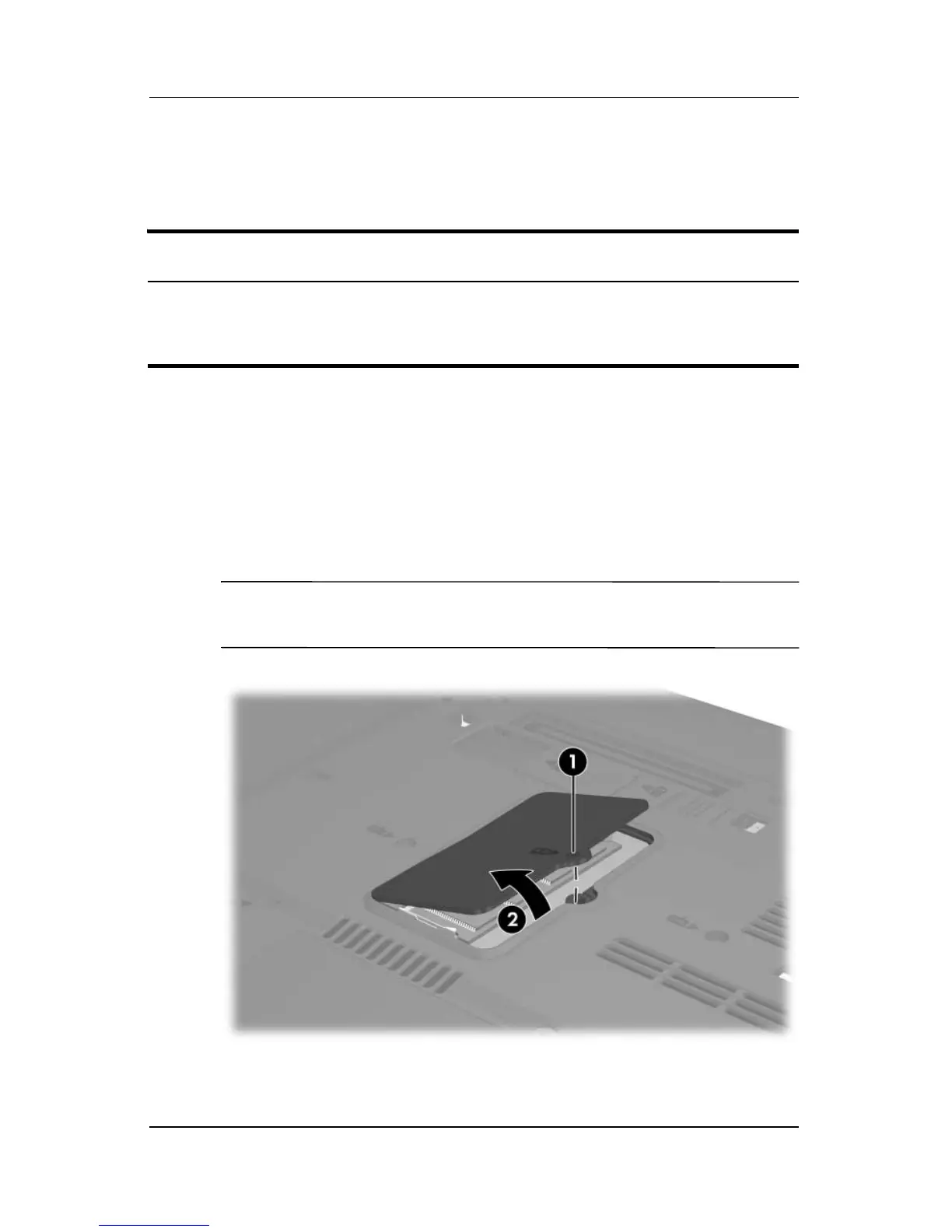

Removing the Memory Module Compartment Cover
Memory Module Spare Part Number Information
1024 MB
512 MB
256 MB
373121-001
373120-001
373119-001
To Next Page
