HP E2620 User Manual

1-12
Introducing the Switch
Back of the Switch
Console Port
This port is used to connect a console to a E2620 Switches by using the
RJ-45 to DB9 cable, supplied with the switch. This connection is described
under “8. (Optional) Connect a Console to the Switch” on page 25 in chapter
2, “Installing the Switch.” The console can be a PC or workstation running a
VT-100 terminal emulator, or a VT-100 terminal.
Back of the Switch

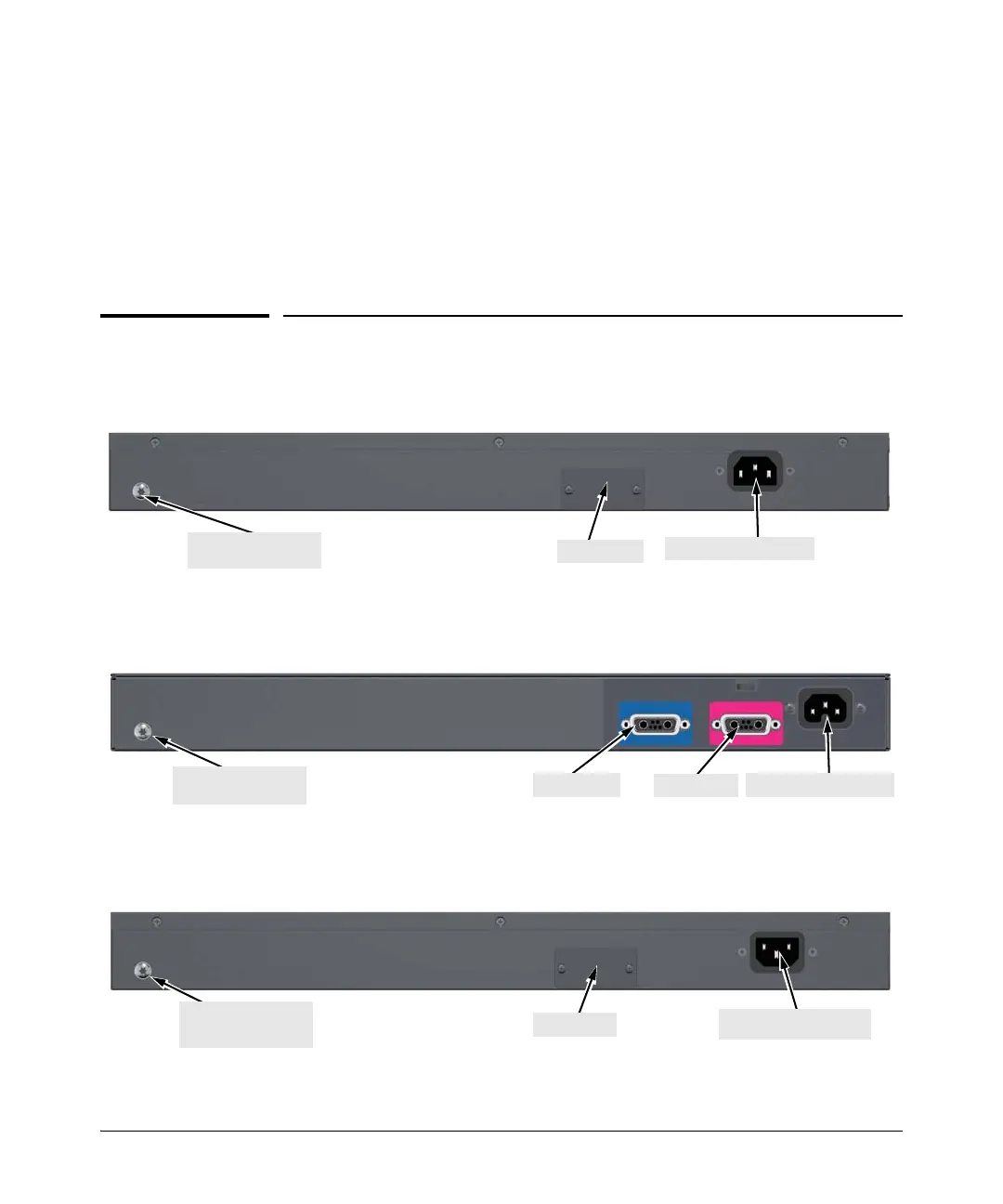

Figure 1-4. HP Switch E2620-24 and E2620-48 non-PoE+
Figure 1-5. HP Switch E2620-24-PoE+ and E2620-48-PoE+
Figure 1-6. HP Switch 2620-24-PPoE+
AC power connector
Attach grounding lug
(optional)
RPS Input
AC power connector
RPS Input
Attach grounding lug
(optional)
EPS Input
AC power connector
RPS Input
Attach grounding lug
(optional)
