Installing the Switch
Installation Procedures
Flat Wall Mounting (non-PoE+ models only)
You can mount the non-PoE+ 2620 models on a wall. They should be mounted
with the RJ-45 ports facing up as shown in Figure 2-9.
WARNING For safe operation do not install the switch with either side vent holes
facing downward.
Caution The switch should be mounted only to a wall or wood surface that is at least
1/2-inch (12.7 mm) plywood or its equivalent.
1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
2. Attach the switch to the wall or wood surface with two 5/8-inch number
12 wood screws (not included).

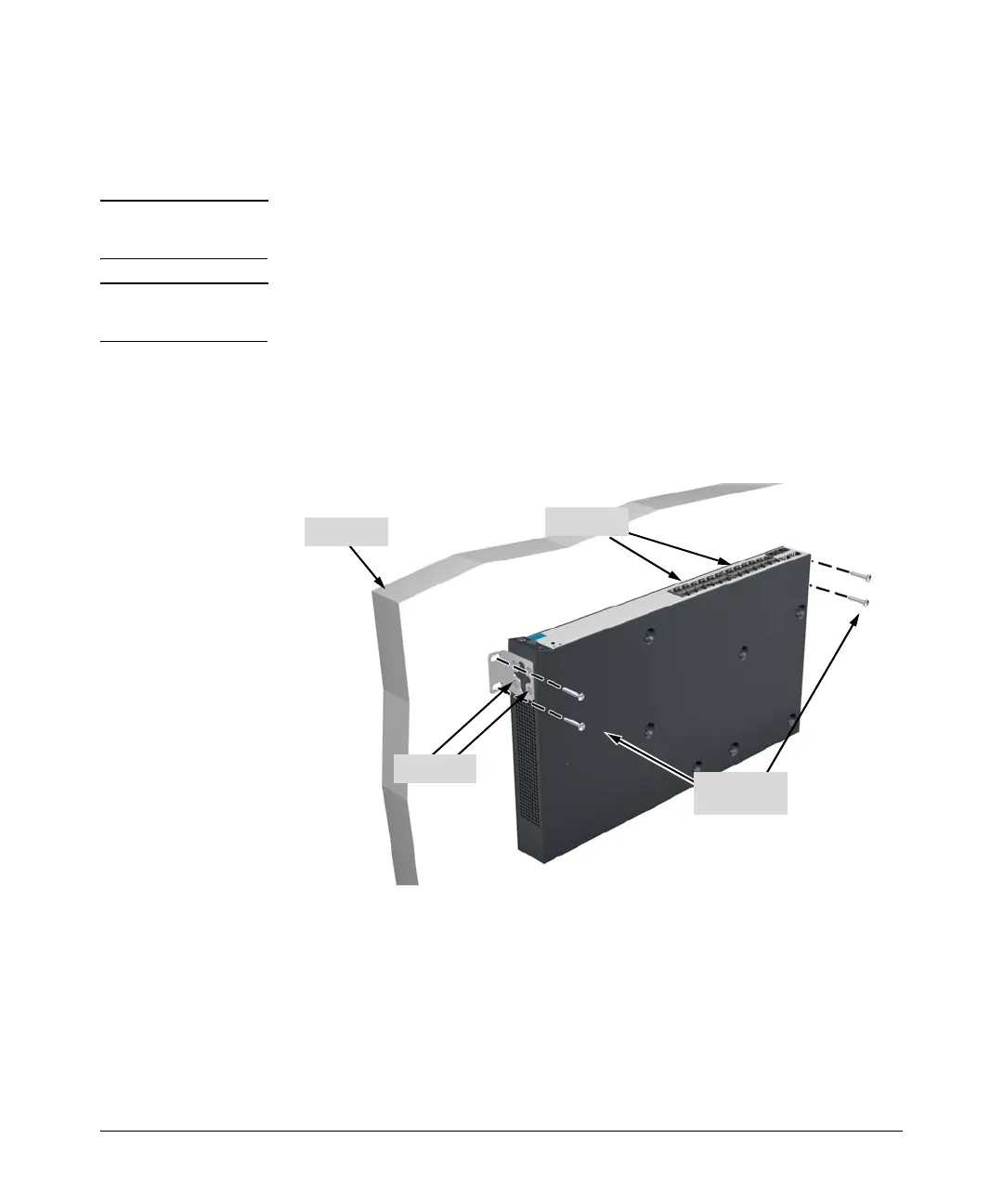

Figure 2-9. Wall mounting RJ-45 ports facing up
M4 screws
Wall
5/8-inch
wood screws
RJ-45 Ports
