Display assembly

NOTE: Display assemblies are spared at the subcomponent level only. For display assembly spare part

information, see the individual removal subsections.

To remove the display assembly and access display assembly subcomponents, follow these steps:

1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the bottom cover (see Bottom cover on page 29).

5. Remove the battery (see Battery on page 31).

Remove the display assembly:

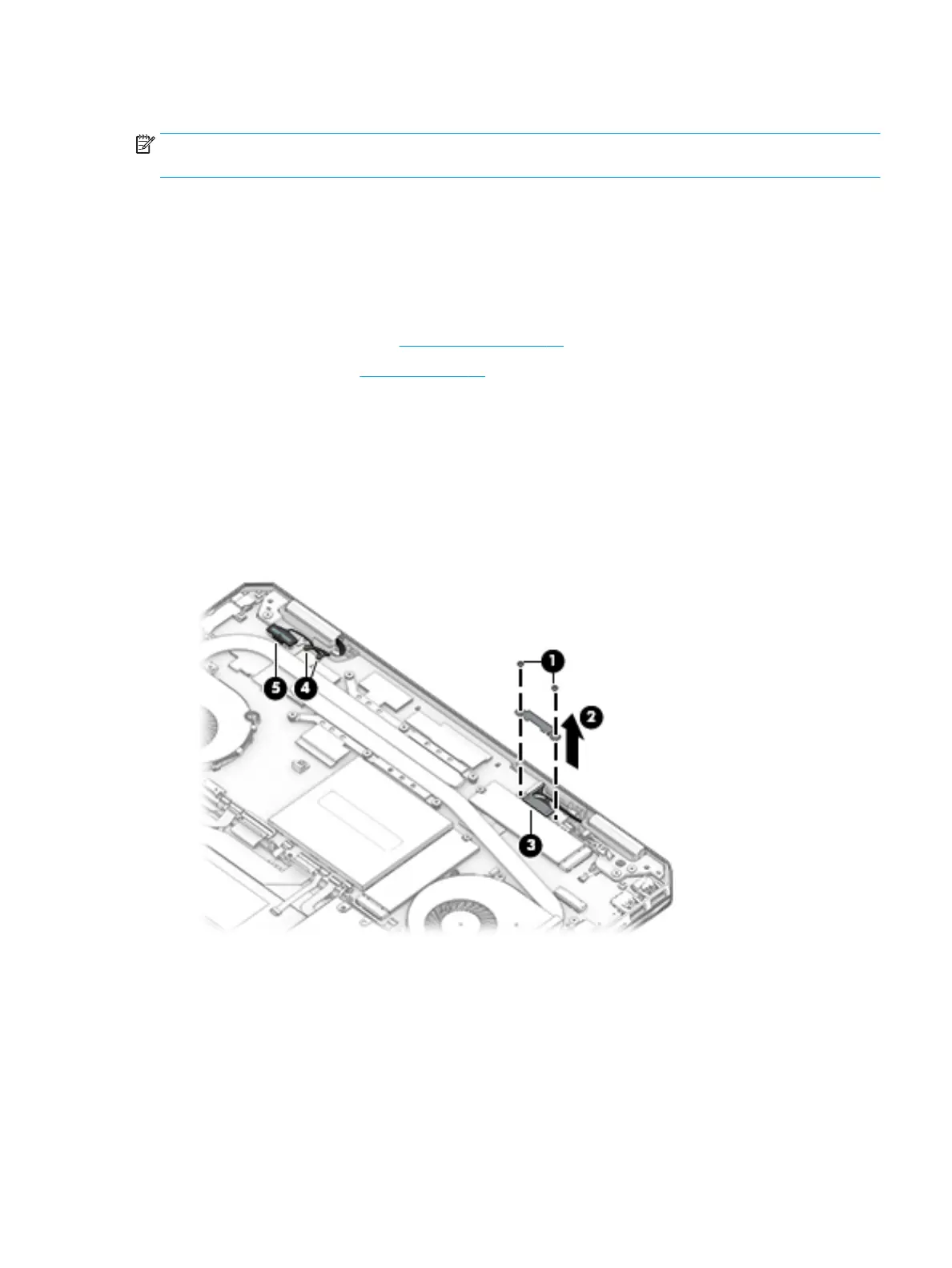

1. Remove the two Phillips M2.0×3.0 screws (1) from the display cable connector bracket.

2. Remove the bracket (2), and then disconnect the display cable from the system board (3).

3. Disconnect the antennas from the WLAN antenna posts (4).

4. Disconnect the camera cable from the system board (5).

Brackets are available in the Bracket Kit using spare part number L28674-001.

5. Remove the ve Phillips M2.5×4.5 screws (1) that secure the display to the computer.

6. Open the computer as far as possible (2).

Component replacement procedures 57
