mSATA Solid-State Drive

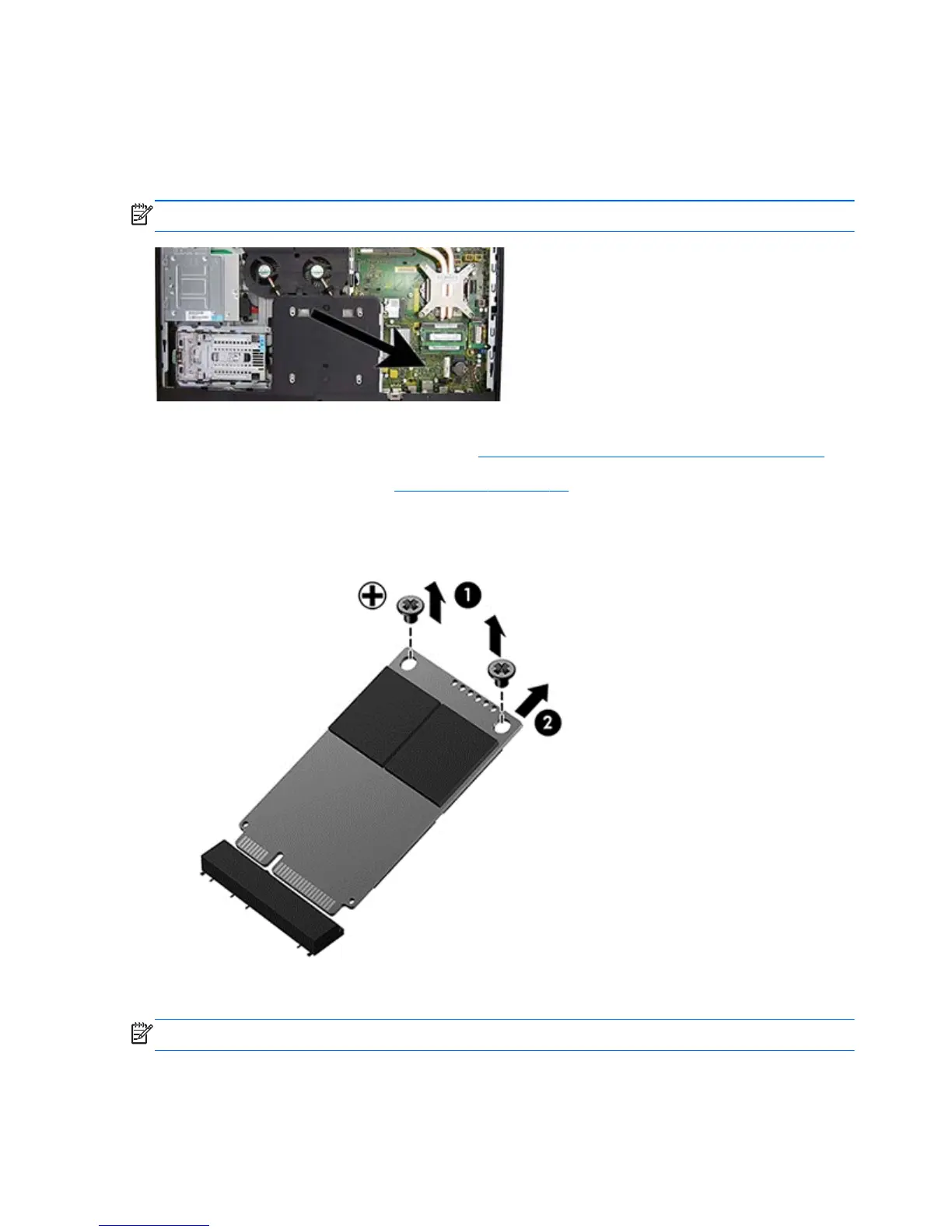

The mSATA SSD is located near the bottom of the system board. The drive is secured with two Phillips
screws.
NOTE: In the following image, the mSATA SSD is not shown.
To remove the mSATA SSD:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 34).
2. Remove the access panel (see
Access panel on page 40).
3. Remove the two Phillips screws (1) that secure the SSD to the computer.
4. Lift the SSD to a 45-degree angle, and then pull it away to remove it from the socket (2).
To install the mSATA SSD, reverse the removal procedures.
NOTE: mSATA SSD are designed with a notch to prevent incorrect insertion.
50 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis
