Power supply
Description Spare part number
Power supply, 200W 733490-001

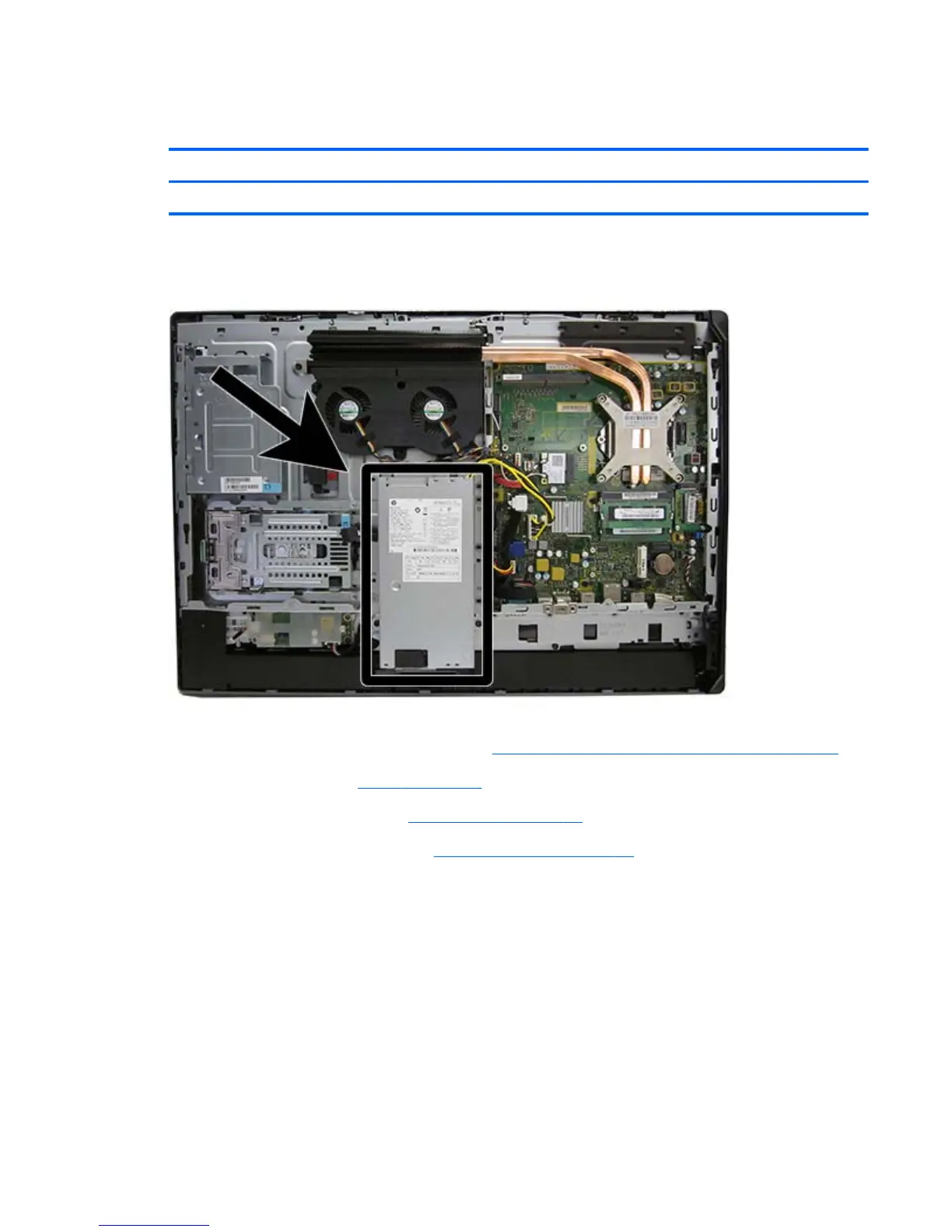

The power supply is located in the middle of the computer under the VESA mounting plate. It is secured
with two Torx screws and has one connector routed to the system board.
To remove the power supply:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 34).
2. Remove the stand (see
Stand on page 36).
3. Remove the access panel (see
Access panel on page 40).
4. Remove the lower rear panel (see
Lower rear panel on page 73).
5. Disconnect the cable from the system board connector (1).
6. Remove the two Torx screws (2) that secure the power supply to the computer.
Power supply
85
