3.

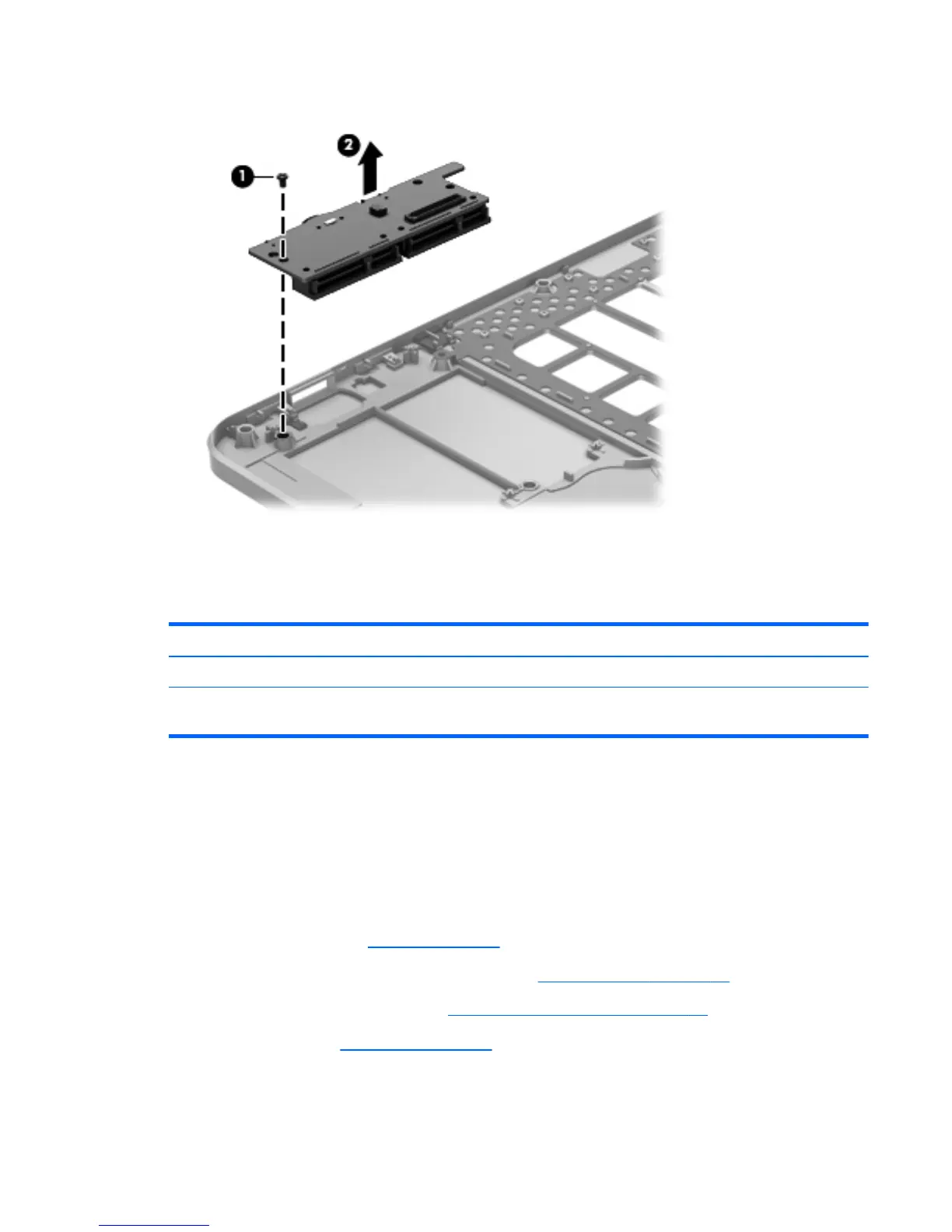

Remove the solid-state drive connector board (2).
Reverse this procedure to install the solid-state drive connector board.
Card Reader board
Description Spare part number
Card Reader board 675511-001
NOTE: The Card Reader board spare part kit does not include the Card Reader board cable. The Card Reader board cable
is included in the Cable Kit, spare part number 672006-001.
Before removing the Card Reader board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 31), and then remove the following components:
a. Solid-state drive connector board cable (see
Solid-state drive on page 33)
b. Card Reader board cable (see
Card Reader board cable on page 35)
c.
Top cover (see
Top cover on page 38)
Component replacement procedures
43
