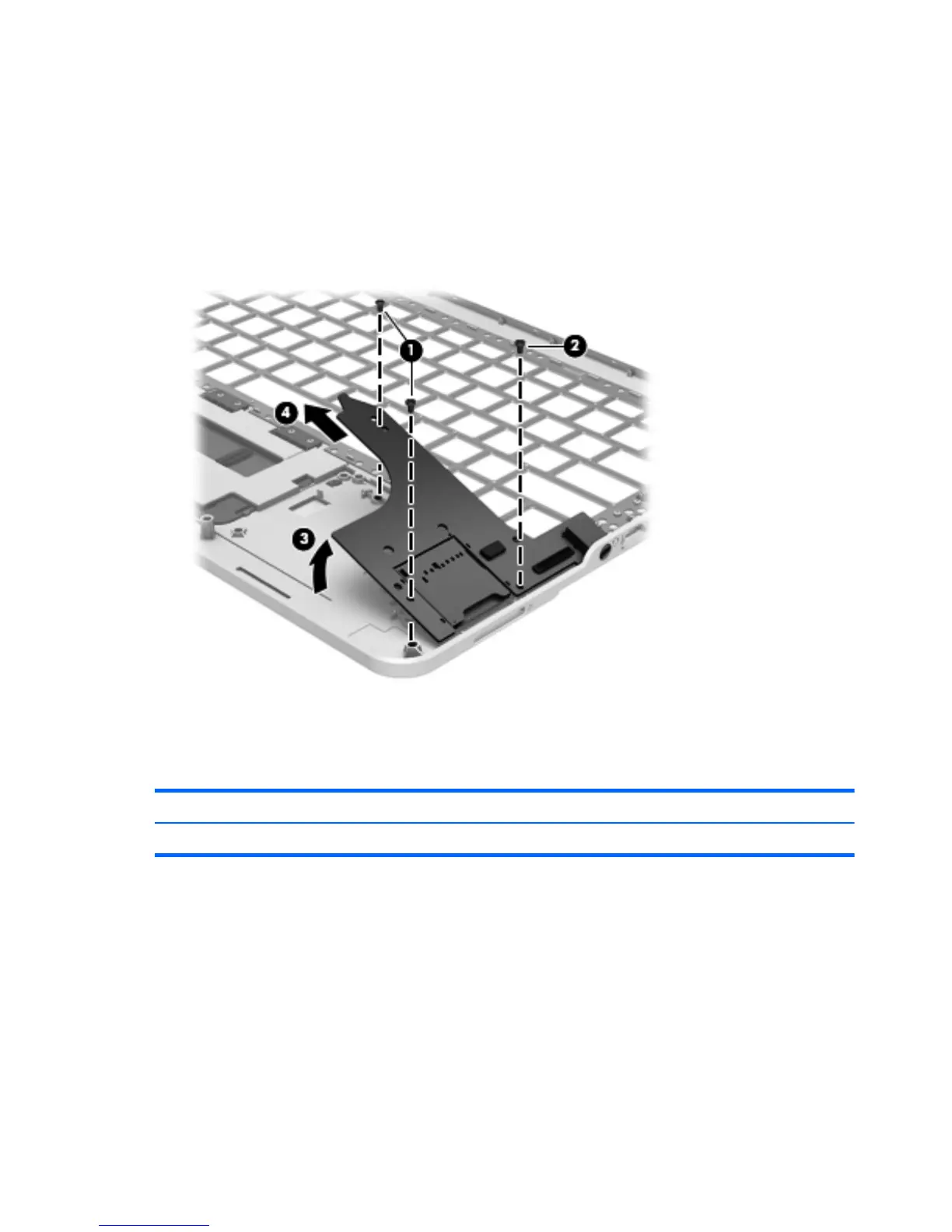

Remove the Card Reader board:
1. Turn the top cover upside down, with the front toward you.
2.
Remove the two Phillips PM2.0×3.6 screws (1) and the Phillips PM2.0×3.2 screw (2) that secure
the Card Reader board to the top cover.
3.
Lift the left side of the Card Reader board (3) until it rests at an angle.
4.
Remove the Card Reader board (4) by sliding it up and to the left at an angle.
Reverse this procedure to install the Card Reader board.
Power button board
Description Spare part number
Power button board (includes cable) 675510-001
Before removing the power button board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
44 Chapter 4 Removal and replacement procedures
