5.

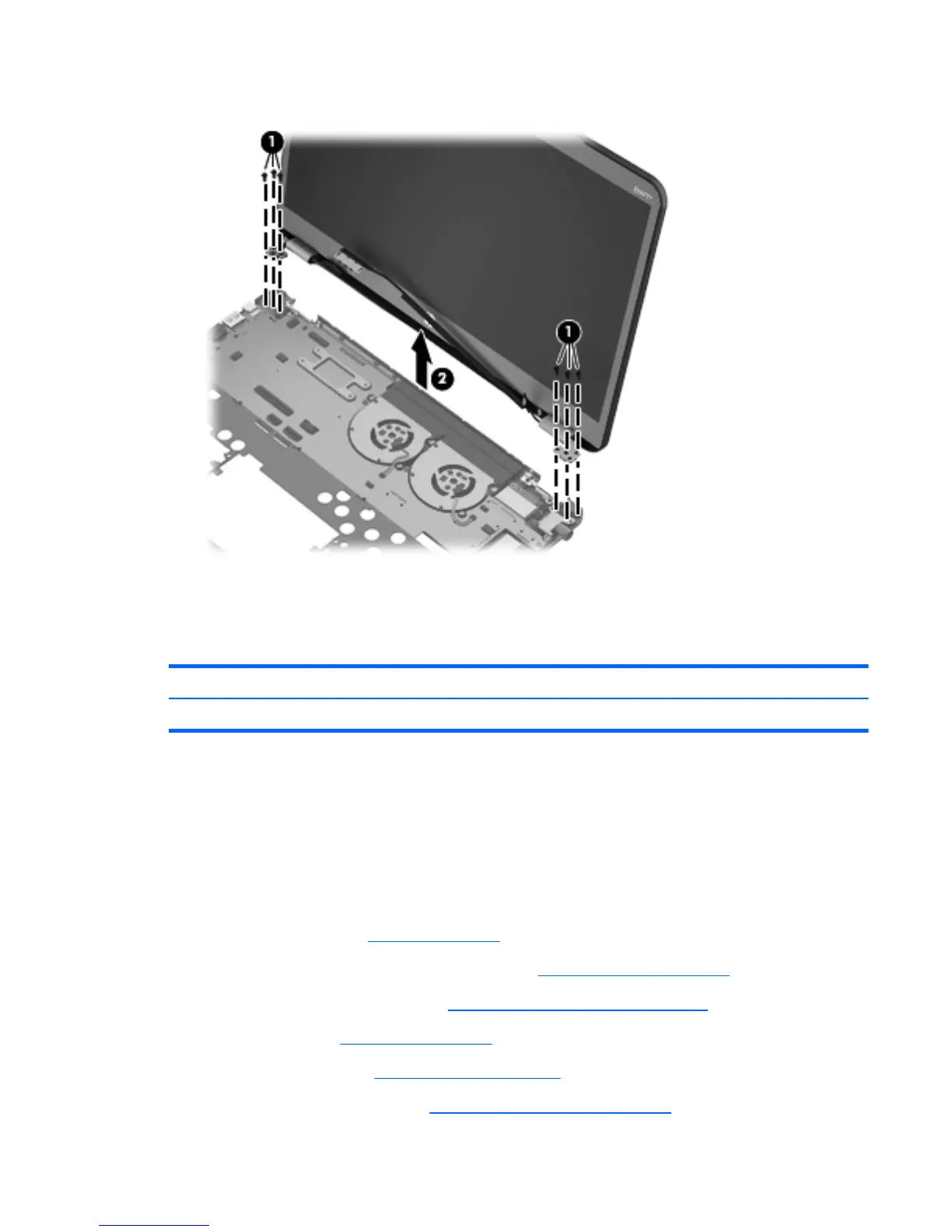

Remove the display assembly (2).
Reverse this procedure to install the display assembly.
Power connector cable
Description Spare part number
Power connector cable 672014-001
Before removing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 31), and then remove the following components:
a. Solid-state drive connector board cable (see
Solid-state drive on page 33)
b. Card Reader board cable (see
Card Reader board cable on page 35)
c. Top cover (see
Top cover on page 38)
d.
WLAN module (see
WLAN module on page 51)
e. Wireless audio module (see
Wireless audio module on page 49)
Component replacement procedures
65
