Item Component Description
(4) USB 3.0 ports Connect optional USB 3.0 devices and provide
enhanced USB power performance.
CAUTION: While there are multiple USB ports on the
same side, only one USB port will be able to support a
high power device at a time.
(5) Audio-out (headphone) jack/Audio-in
(microphone) jack
Connects optional powered stereo speakers,
headphones, earbuds, a headset, or a television audio
cable. Also connects an optional computer headset
microphone, stereo array microphone, or monaural
microphone. The jack does not support optional
microphone-only devices.
WARNING! To reduce the risk of personal injury,
adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information,
refer to the Regulatory, Safety, and
Environmental Notices..
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-
conductor connector that supports both audio-out
(headphone) and audio-in (microphone).

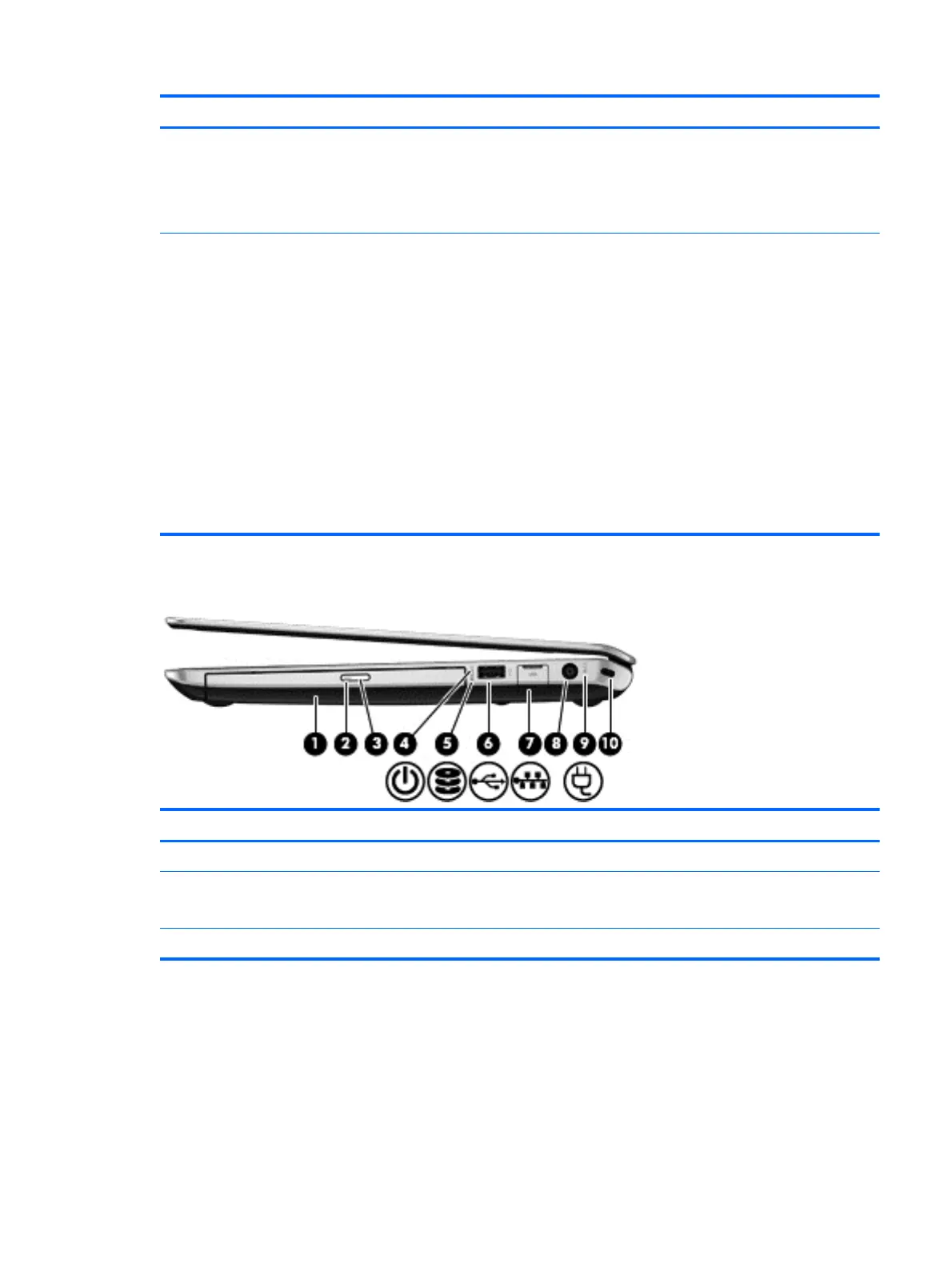

Right side
Item Component Description
(1) Optical drive Reads and writes (select models only) to an optical disc.
(2) Optical drive light ● Green: The optical drive is being accessed.
●
Off: The optical drive is idle.
(3) Optical drive eject button Releases the disc tray.
Right side 11
