Hard drive
NOTE: The hard drive spare part kit does not include the hard drive bracket, hard drive connector
cable, or screws. These components are included in the Hard Drive Hardware Kit, spare part number
698081-001.
Description Spare part number
1-TB, 5400-rpm, 9.5-mm 676521-001
750-GB, 7200-rpm, 9.5-mm 633252-001
750-GB, 5400-rpm, 9.5-mm 634250-001
640-GB, 5400-rpm, 9.5-mm 669300-001
500-GB, 7200-rpm, 9.5-mm 634925-001
500-GB, 5400-rpm, 9.5-mm 669299-001
500-GB, 5400-rpm, 9.5-mm 683802-001
Before removing the hard drive, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery).
Remove the hard drive:

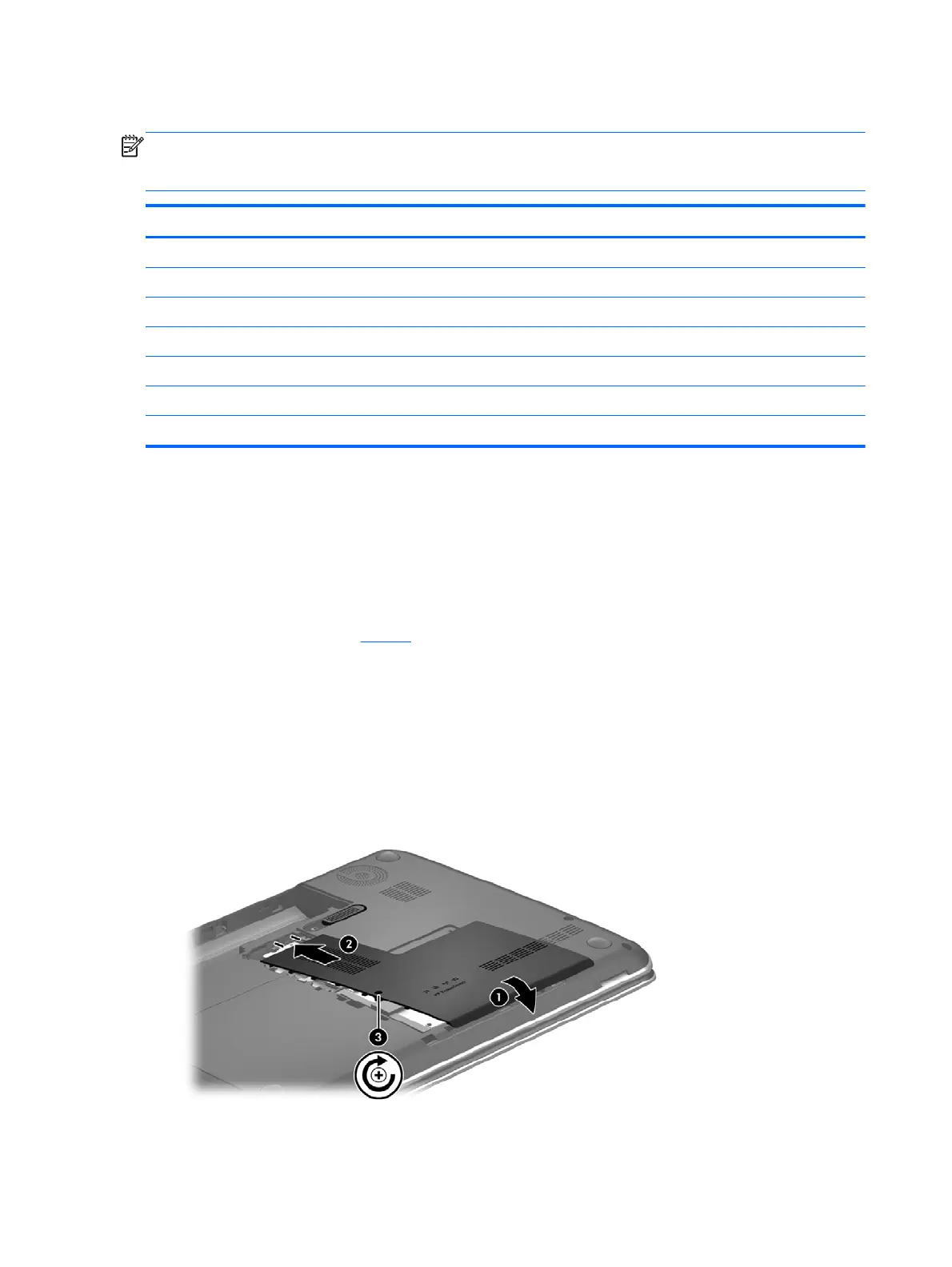

1. Loosen the Phillips PM2.5×4.5 captive screw (1) that secures the service cover to the computer.
2. Slide the battery release latch (2) to release the service cover.
3. Slide the service cover (3) toward the front of the computer.
4. Remove the service cover (4).
The service cover is included in the Service Cover Kit, spare part number 698086-001.
5. Disconnect the hard drive connector cable (1) from the system board.
32 Chapter 4 Removal and replacement procedures
