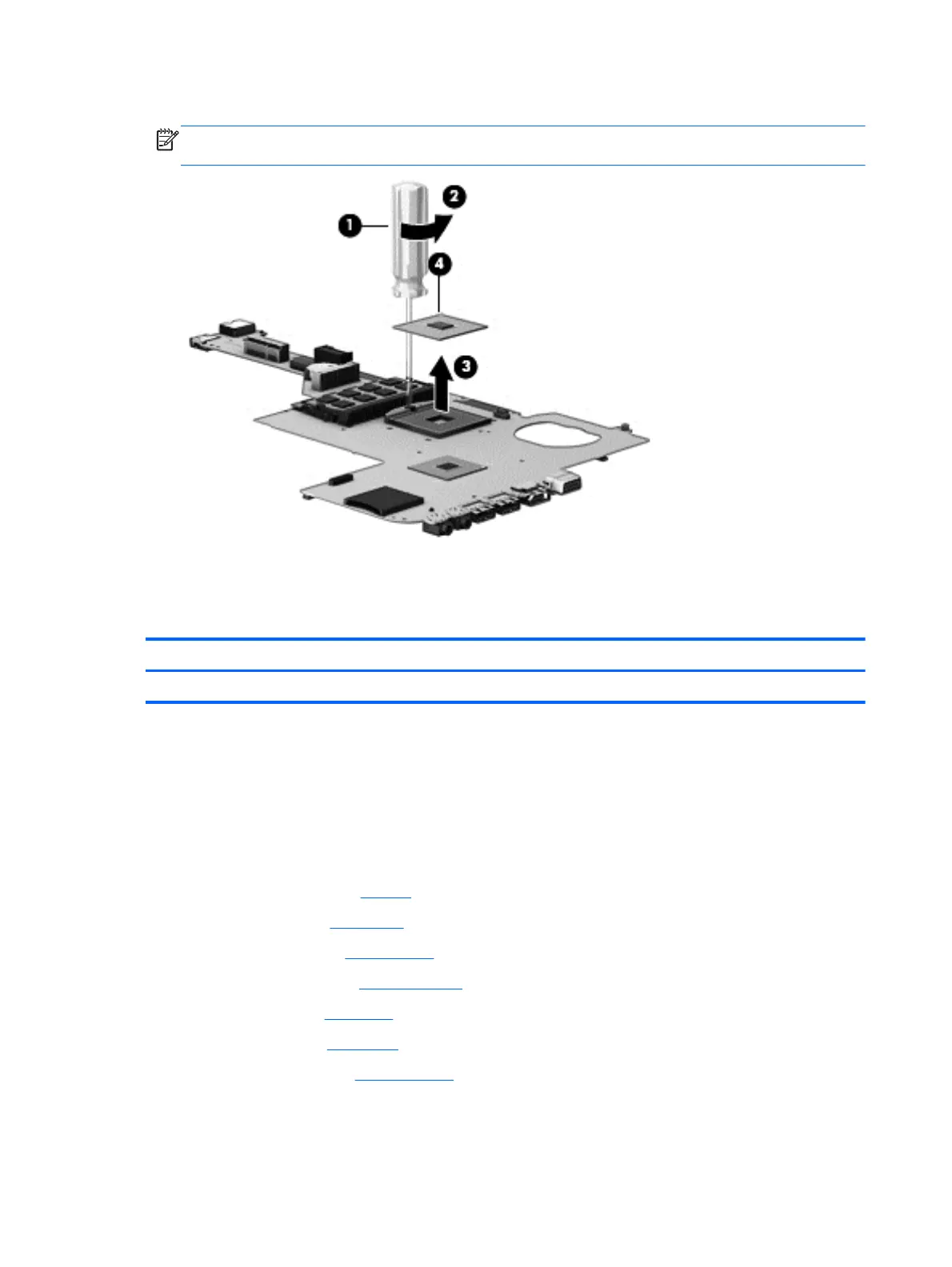

2. Lift the processor (3) straight up and remove it.
NOTE: The gold triangle (4) on the processor must be aligned with the triangle icon embossed
on the processor socket when you install the processor.
Reverse this procedure to install the processor.
Power connector cable
Description Spare part number
Power connector cable (includes bracket) 698078-001
Before removing the optical drive connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery), and then remove the following components:
a. Hard drive (see
Hard drive)
b. Optical drive (see
Optical drive)
c. WLAN module (see
WLAN module)
d. Keyboard (see
Keyboard)
e. Top cover (see
Top cover)
f. System board (see
System board)
60 Chapter 4 Removal and replacement procedures
