WLAN module
Description Spare part number
Atheros WB225 1×1 802.11b/g/n Bluetooth Combo Adapter 675794-001
Intel Centrino Advanced-N 6235 WLAN module 690019-001
Intel Centrino Wireless-N 2230 WLAN module 670290-001
Ralink RT3290LE 802.11b/g/n 1×1 WiFi and Bluetooth 4.0 Combo Adapter 690020-001
Ralink RT5390R 802.11b/g/n 1×1 WiFi Adapter 691415-001
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery).
5. Remove the service cover (see
Hard drive).
Remove the WLAN module:

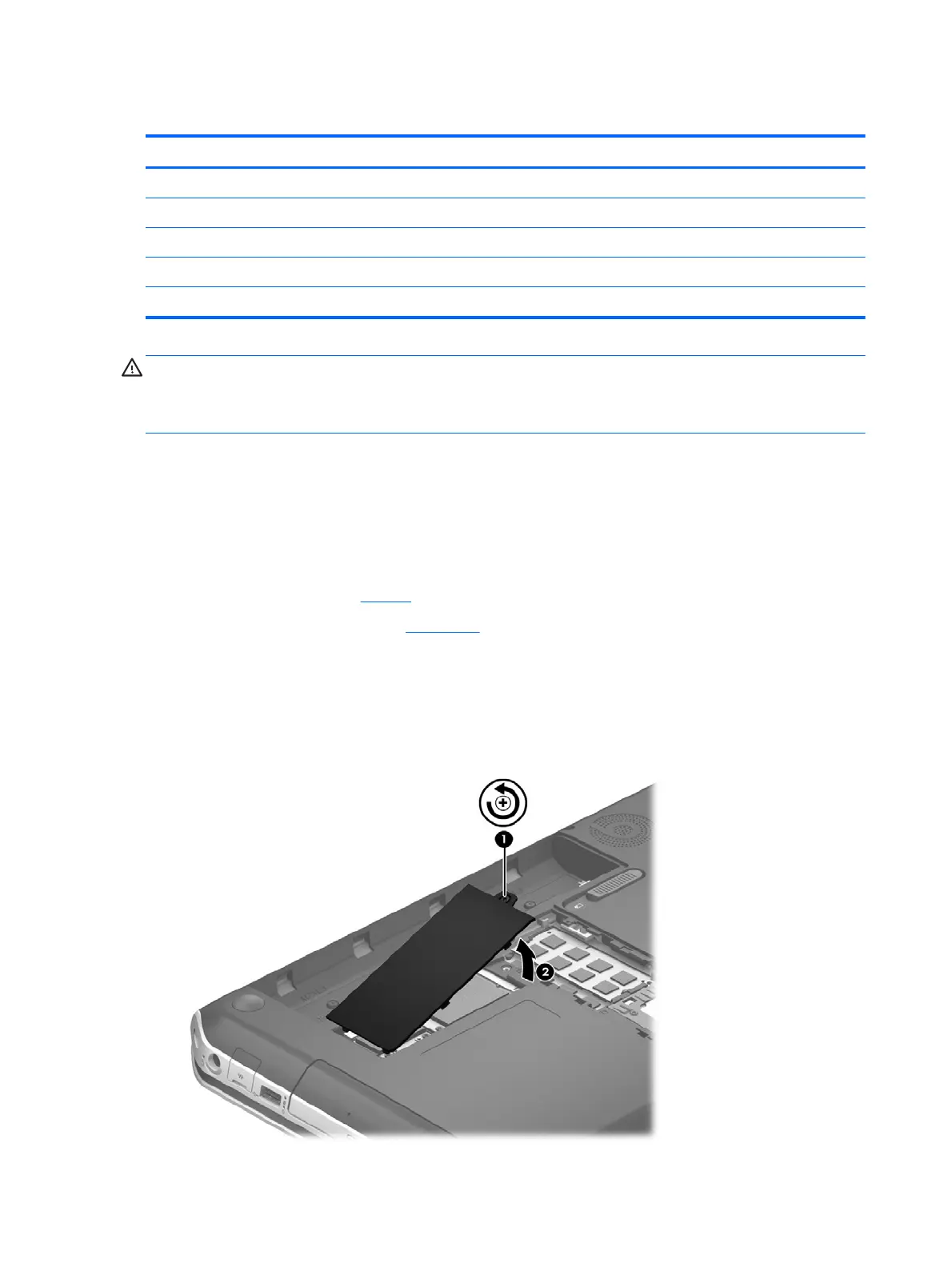

1. Loosen the Phillips PM2.5×4.5 captive screw (1) that secures the wireless module compartment
cover to the computer.
2. Lift the right side of the wireless module compartment cover (2) until the cover detaches from
the computer.
38 Chapter 4 Removal and replacement procedures
