2-12
Using the ProCurve Web Browser Interface
Web Configuration
Using the ProCurve Web
Browser Interface

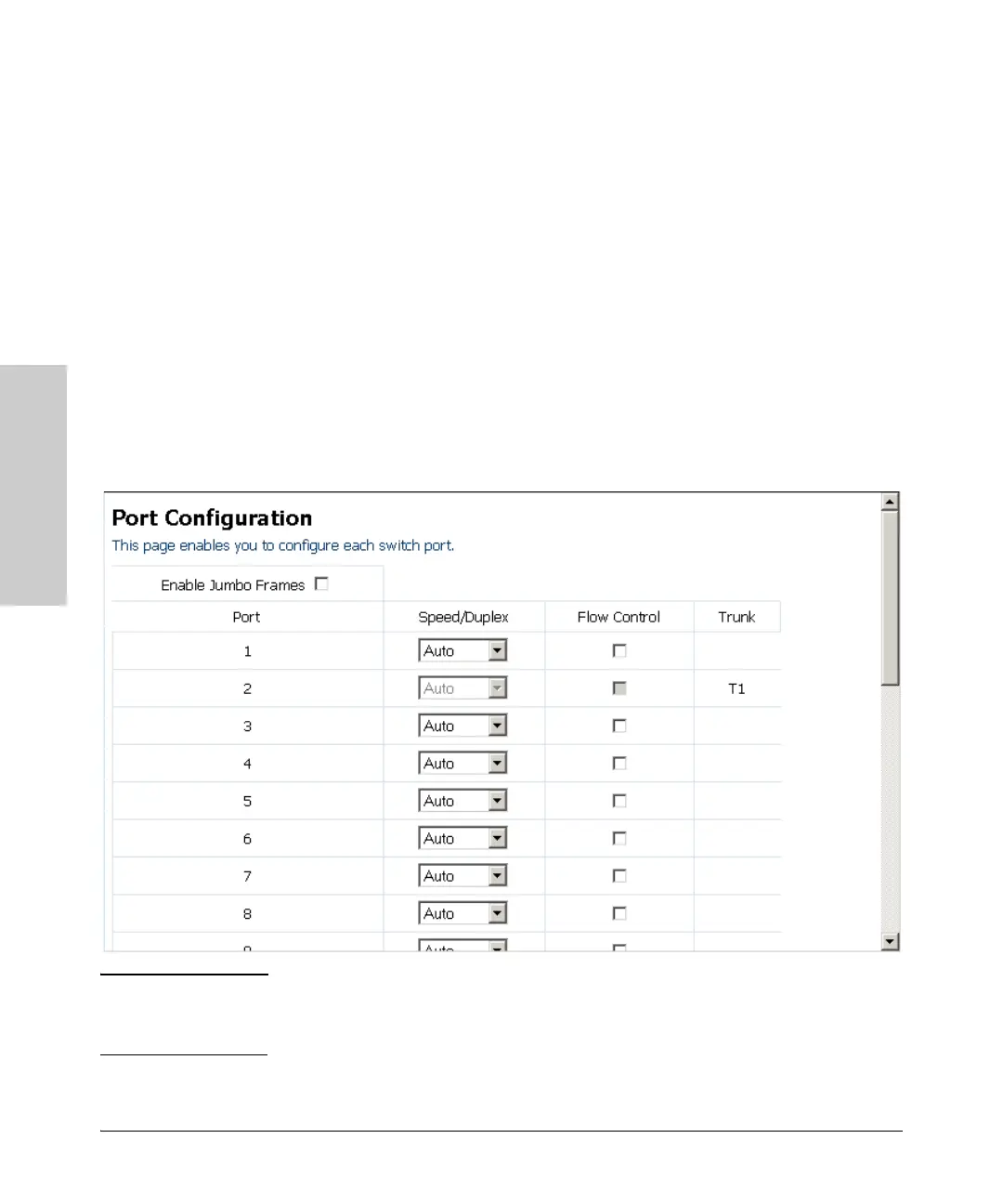

Port Configuration
You can use the Port Configuration page to manually set the speed, duplex
mode, and flow control. You can enable jumbo frames to support data packets
9216 bytes in size.
Field Attributes
• Enable Jumbo Frames – Click box to enable jumbo frames.
•Port – The port number.
• Speed/Duplex – Allows you to manually set the port speed and
duplex mode.
• Flow Control – Allows flow control to be enabled or disabled. When
the box is checked, flow control is enabled.
• Trunk – Indicates if a port is a member of a trunk.
Web – Click Ports, Configuration.
Note Ports within a trunk cannot be configured individually. However, you can use
the Trunk Configuration page to manually set the same speed, duplex mode,
and flow control for every port in a trunk.
