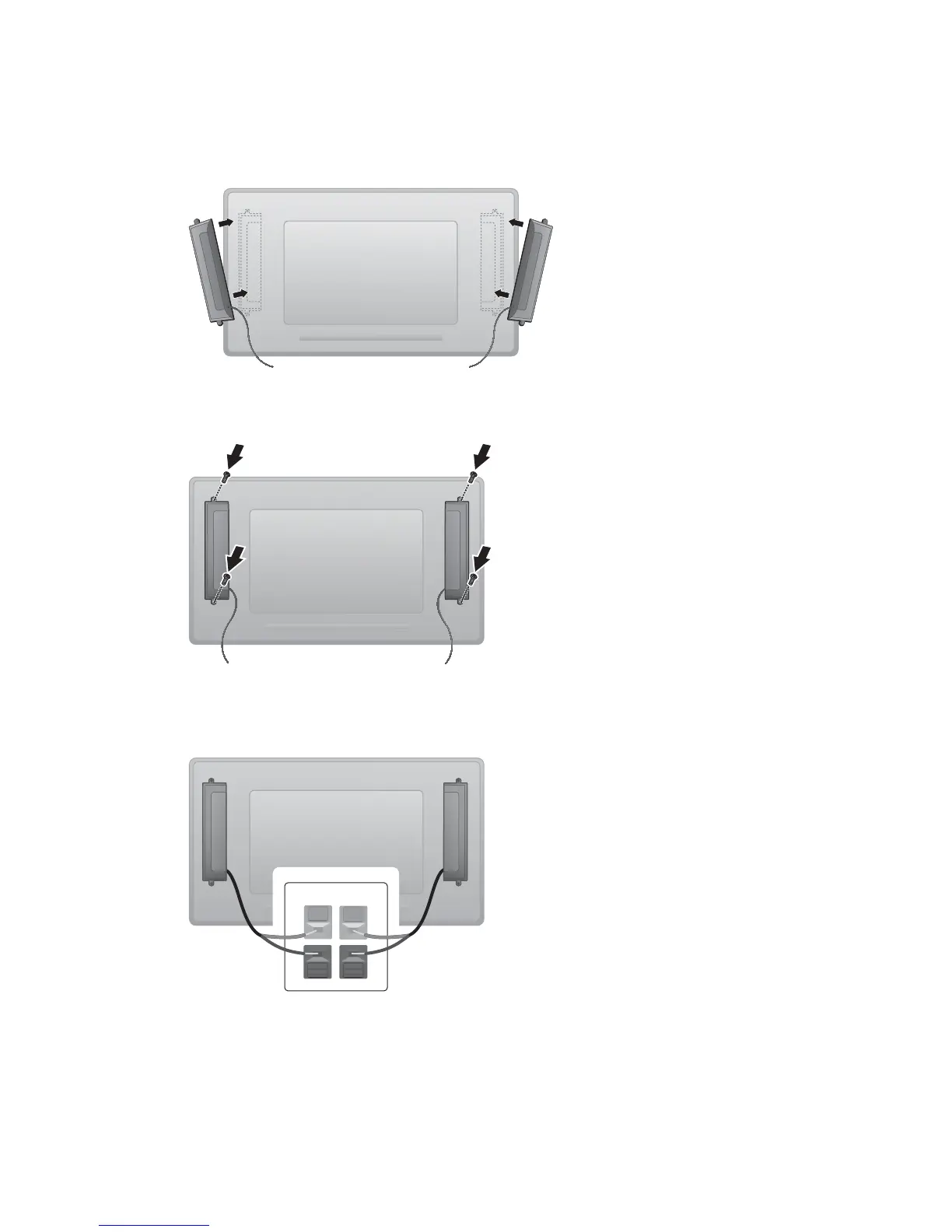

Connecting the speakers (sold separately)
1. Mount the speakers onto the display.
Figure 3-2 Mounting the speakers
2. Use the four Taptite D3 x 12 mm (0.47 in) screws to secure the speakers to the display.
Figure 3-3 Securing the speakers to the display
3. After installing the speakers, connect to the SPEAKER input terminal by connecting the proper
color match for the left and right speakers.
Figure 3-4 Connecting to the input terminal
8 Chapter 3 Setting up the display ENWW
