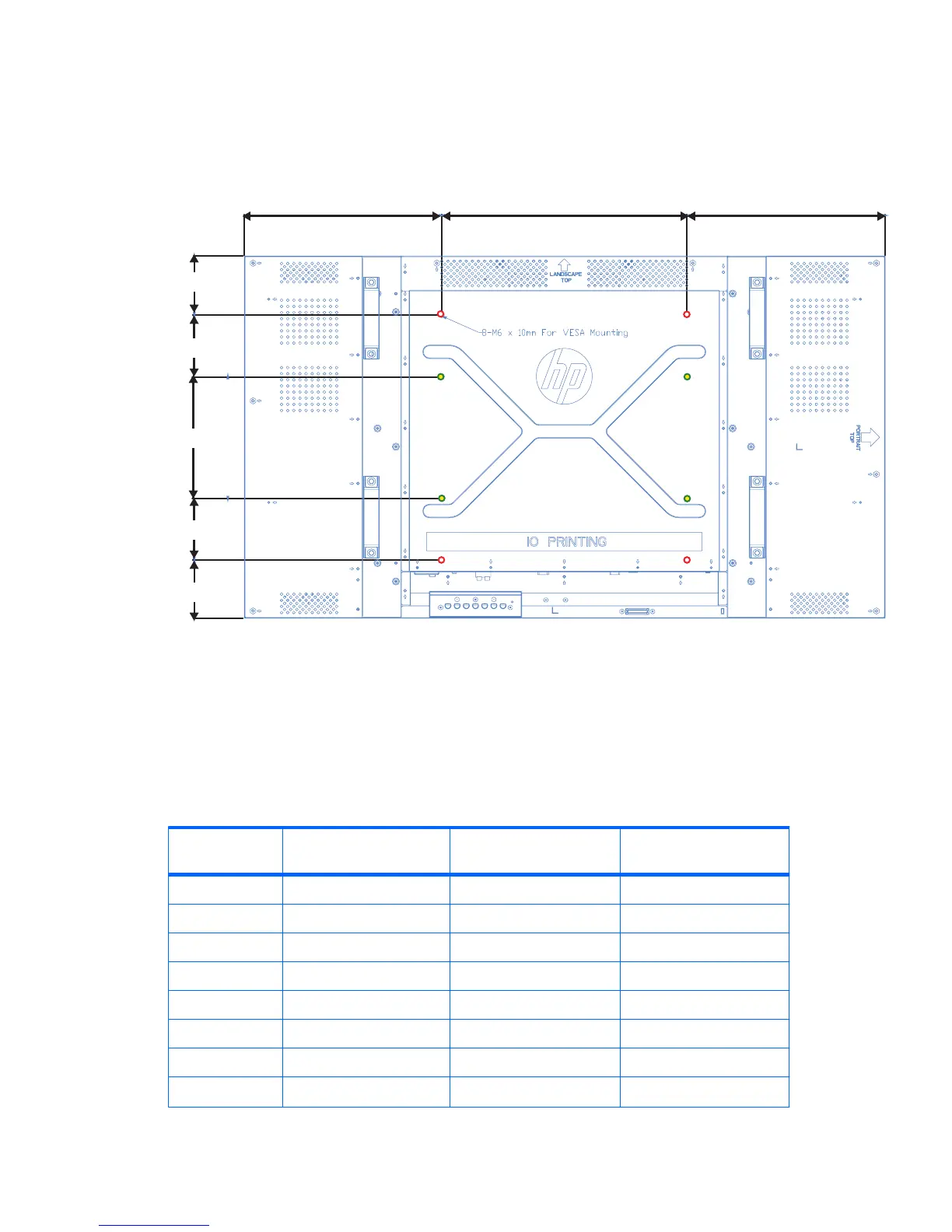

Locations of the VESA mounting holes are shown below. All units are mm.
Figure B-1 VESA mounting holes
322.7
324.2
400
200
100
95.1
96.6
100
Recognizing preset display resolutions
The display resolutions listed below are the most commonly used modes and are set as factory
defaults. This display automatically recognizes these preset modes and they will appear properly
sized and centered on the screen.
Preset display modes
Table B-2 Factory preset display modes
Preset Pixel format Horizontal frequency
(kHz)
Vertical Frequency (Hz)
1 640 x 480 31.469 59.940
2 640 x 480 37.861 72.809
3 640 x 480 37.500 75.000
4 720 x 400 31.469 70.087
5 800 x 600 37.879 60.317
6 800 x 600 48.077 72.188
7 800 x 600 46.875 75.000
8 832 x 624 49.726 74.551
ENWW Recognizing preset display resolutions 57
