Fingerprint sensor assembly
Table 5-11 Fingerprint sensor assembly descriptions and part numbers
Description Spare part number
Fingerprint sensor assembly L77229-001
Fingerprint sensor bracket (included in Bracket Kit) L77264-001
Fingerprint sensor cable (included in the Cable Kit) L77263-001
Fingerprint sensor insert (included in Plastics Kit; for use in models without a ngerprint sensor) L77265-001
Before removing the ngerprint sensor assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 29).
2. Place the computer in Battery Safe mode (Battery Safe mode on page 29).
3. Remove the following components:
a. Bottom cover (Bottom cover on page 30).
b. Battery (Battery on page 31).

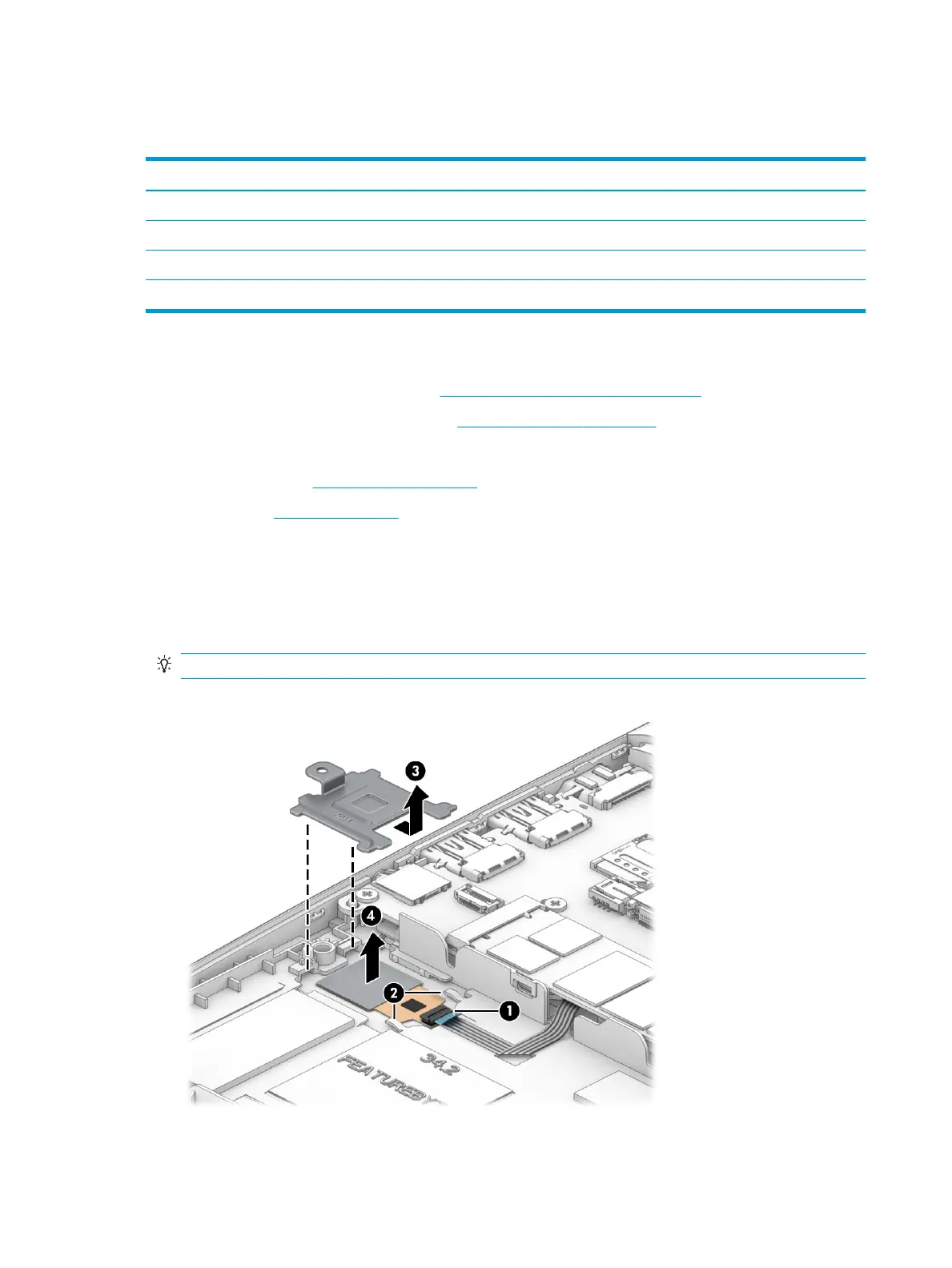

Remove the ngerprint sensor assembly:
1. Disconnect the cable from the ZIF connector on the ngerprint sensor (1).
2. Lift the two plastic tabs that hold the bracket in place (2).
3. Slide the bracket toward the inside of the computer, and then lift it o the ngerprint sensor board (3).
TIP: You might need a tool to release the bracket.
4. Remove the ngerprint sensor from the computer (4).
Reverse this procedure to install the ngerprint sensor assembly.
42 Chapter 5 Removal and replacement procedures for authorized service provider parts
