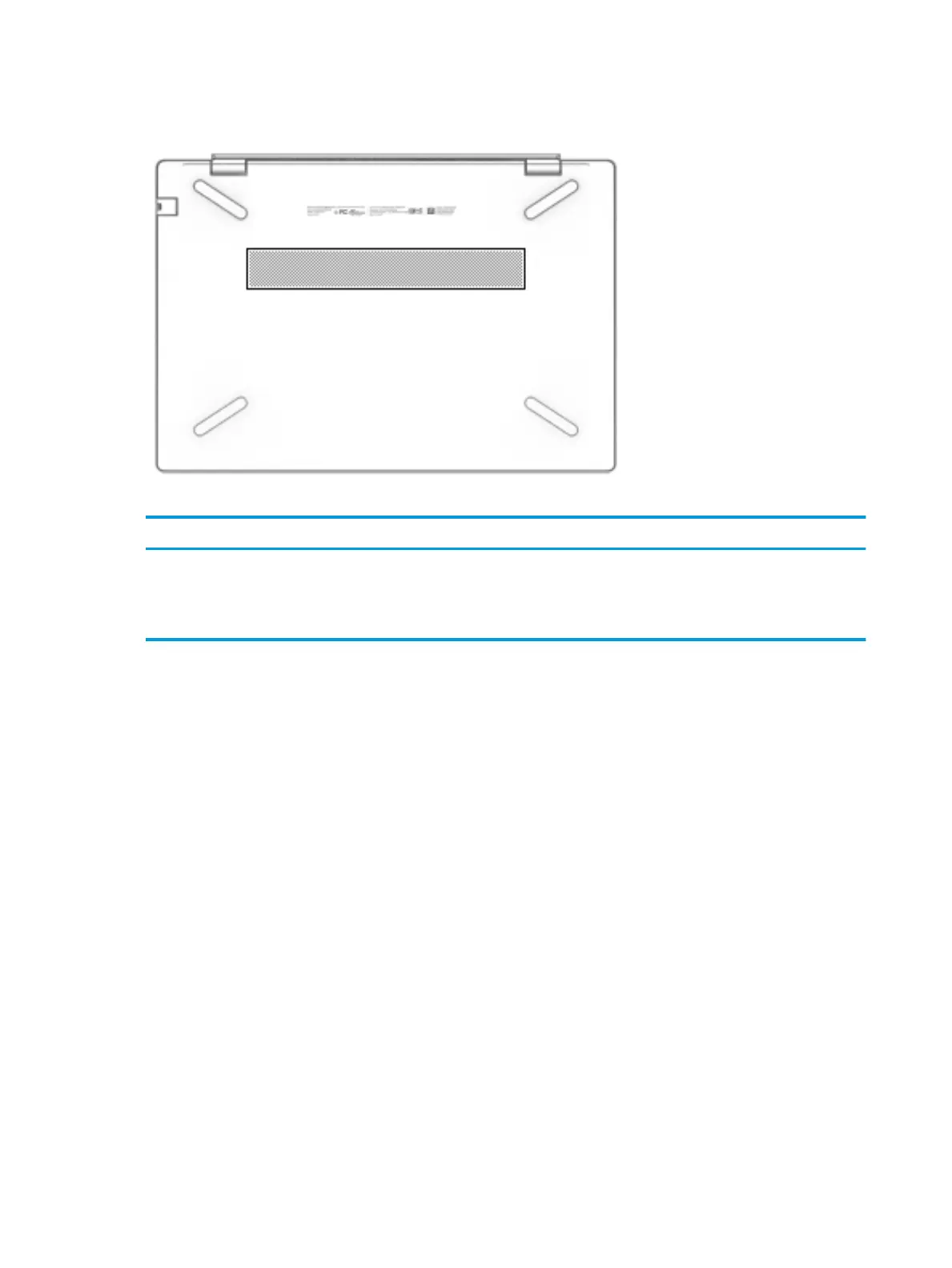

able 2-11
Bott
om component and description
Component
Description
Vent
Enables
airow
t
o cool internal c
omponents.
NO
TE:
The computer fan s
tarts up automatically t
o cool intern
al components
and prevent overhe
ating. It is normal for the intern
al fan to cycle on and
o
during routine o
peration.
20
Chapter 2 Exterior components
27
29
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 Exterior Components
17
Right Side
18
Left Side
20
Display
21
Keyboard Area
23
Touchpad
23
Lights
24
Button, Speakers, and Vent
25
Special Keys
26
Action Keys
27
Bottom
28
Labels
29
3 Illustrated Parts Catalog
31
Computer Components
31
Display Assembly Components
50
Miscellaneous Parts
52
4 Removal and Replacement Procedures Preliminary Requirements
55
Tools Required
55
Service Considerations
55
Plastic Parts
55
Cables and Connectors
56
Drive Handling
56
Grounding Guidelines
56
Electrostatic Discharge Damage
56
Packaging and Transporting Guidelines
57
Workstation Guidelines
57
5 Removal and Replacement Procedures for Authorized Service Provider Parts
59
Component Replacement Procedures
59
Bottom Cover
59
Battery
61
Display Assembly
62
Hard Drive
71
WLAN Module
74
Solid-State Drive
76
Optane Memory Module (Select Products Only)
77
Memory Module
79
Card Reader Board
81
Touchpad
82
Lock Bracket
84
Usb/Audio Board
85
Fingerprint Reader
86
Fan
87
Heat Sink
89
System Board
91
Speakers
97
Power Connector Cable
98
Keyboard/Top Cover
100
6 Using Setup Utility (BIOS)
103
Starting Setup Utility (BIOS)
103
Updating Setup Utility (BIOS)
103
Determining the BIOS Version
103
Downloading a BIOS Update
104
7 Backing Up, Restoring, and Recovering
105
Using Windows Tools for Backing Up, Restoring, and Recovering Your Computer
105
Creating Backups
105
Restoring and Recovering
105
Creating HP Recovery Media (Select Products Only)
106
Using HP Recovery Manager to Create Recovery Media
106
Before You Begin
106
Creating the Recovery Media
107
Using the HP Cloud Recovery Download Tool to Create Recovery Media
107
Restoring and Recovery
107
Restoring, Resetting, and Refreshing Using Windows Tools
107
Restoring Using HP Recovery Manager and the HP Recovery Partition
107
Recovering Using HP Recovery Manager
108
Recovering Using the HP Recovery Partition (Select Products Only)
108
Recovering Using HP Recovery Media
109
Changing the Computer Boot Order
109
Removing the HP Recovery Partition (Select Products Only)
109
8 Using HP PC Hardware Diagnostics
111
Using HP PC Hardware Diagnostics Windows (Select Products Only)
111
Downloading HP PC Hardware Diagnostics Windows
111
Downloading the Latest HP PC Hardware Diagnostics Windows Version
111
Downloading HP Hardware Diagnostics Windows by Product Name or Number (Select Products Only)
112
Installing HP PC Hardware Diagnostics Windows
112
Using HP PC Hardware Diagnostics UEFI
112
Starting HP PC Hardware Diagnostics UEFI
112
Downloading HP PC Hardware Diagnostics UEFI to a USB Flash Drive
113
Downloading the Latest HP PC Hardware Diagnostics UEFI Version
113
Downloading HP PC Hardware Diagnostics UEFI by Product Name or Number (Select Products Only)
113
Using Remote HP PC Hardware Diagnostics UEFI Settings (Select Products Only)
113
Downloading Remote HP PC Hardware Diagnostics UEFI
114
Downloading the Latest Remote HP PC Hardware Diagnostics UEFI Version
114
Downloading Remote HP PC Hardware Diagnostics UEFI by Product Name or Number
114
Customizing Remote HP PC Hardware Diagnostics UEFI Settings
114
9 Specifications
115
Computer Specifications
115
35.6-CM (14.0-In) Display Specifications
116
Hard Drive Specifications
116
M.2 Solid-State Drive Specifications
118
10 Power Cord Set Requirements
119
Requirements for All Countries
119
Requirements for Specific Countries and Regions
120
11 Recycling
123
Index
125
