Power connector cable
Table 5-17 Power connector cable description and spare part number information
Description Spare part number
Power connector cable L19162-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the following components:
a. Bottom cover (see Bottom cover on page 51)
b. Battery (see Battery on page 53)
c. Hard drive (see Hard drive on page 63)
d. Fan (see Fan on page 79)
e. System board (see System board on page 83)

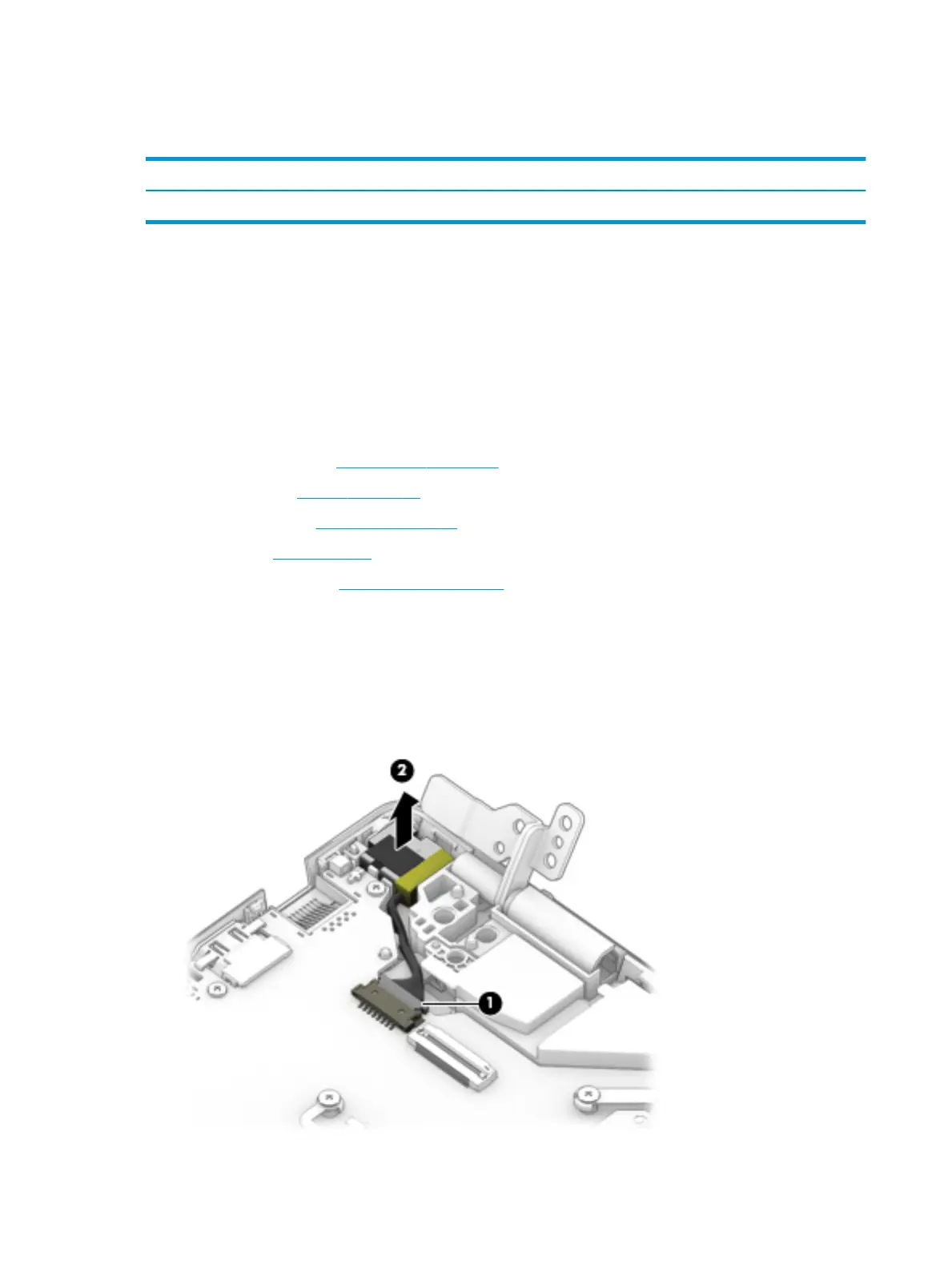

Remove the power connector cable:
1. If necessary, rotate the left display hinge upward.
2. Disconnect the power connector cable from the system board (1).
3. Remove the cable from the computer (2).
90 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
