Solid-state drive
Table 5-5 Solid-state drive description and part number
Description Spare part number
512 GB, PCIe L25329-001
512 GB, PCIe, TLC L56705-001
256 GB, SATA-3, TLC L25327-001
256 GB, PCIe L25328-001
128 GB, SATA-3, TLC L25326-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the bottom cover (see Bottom cover on page 34).
3. Remove the battery (see Battery on page 37).

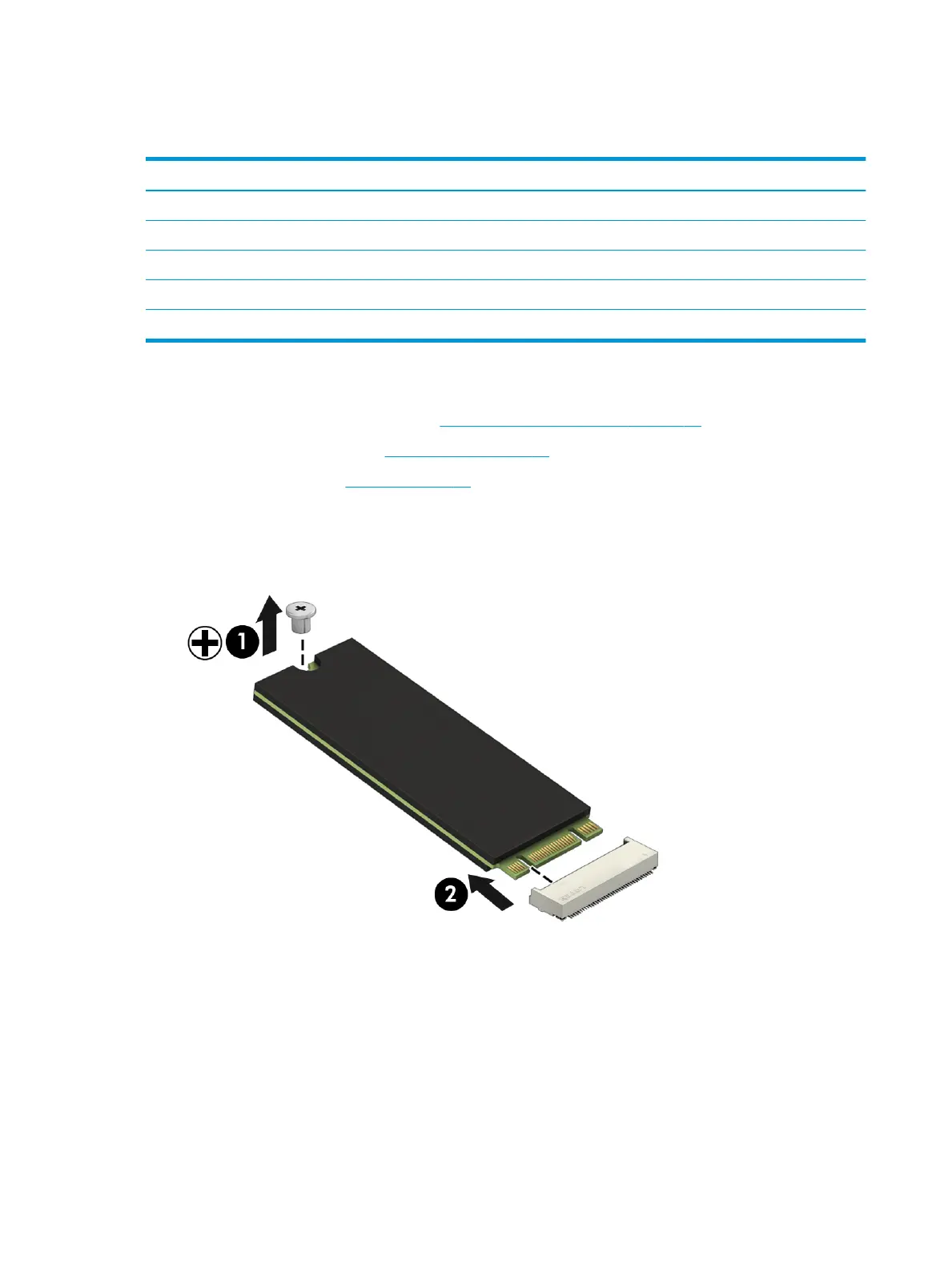

Remove the solid-state drive module:
1. Remove the Phillips M2.0 × 3.0 screw (1) that secures the drive to the computer.
2. Remove the drive (2) by pulling it away from the socket.
Reverse this procedure to reassemble and install the solid-state drive.
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
