Memory card reader board
Table 5-8 Memory card reader board description and part number
Description Spare part number
Memory card reader board L23890-001
Memory card reader board cable L23891-001
Memory card reader board cable on models equipped with GTX graphics L41586-001
Before removing the memory card reader board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the bottom cover (see Bottom cover on page 34).
3. Remove the battery (see Battery on page 37).

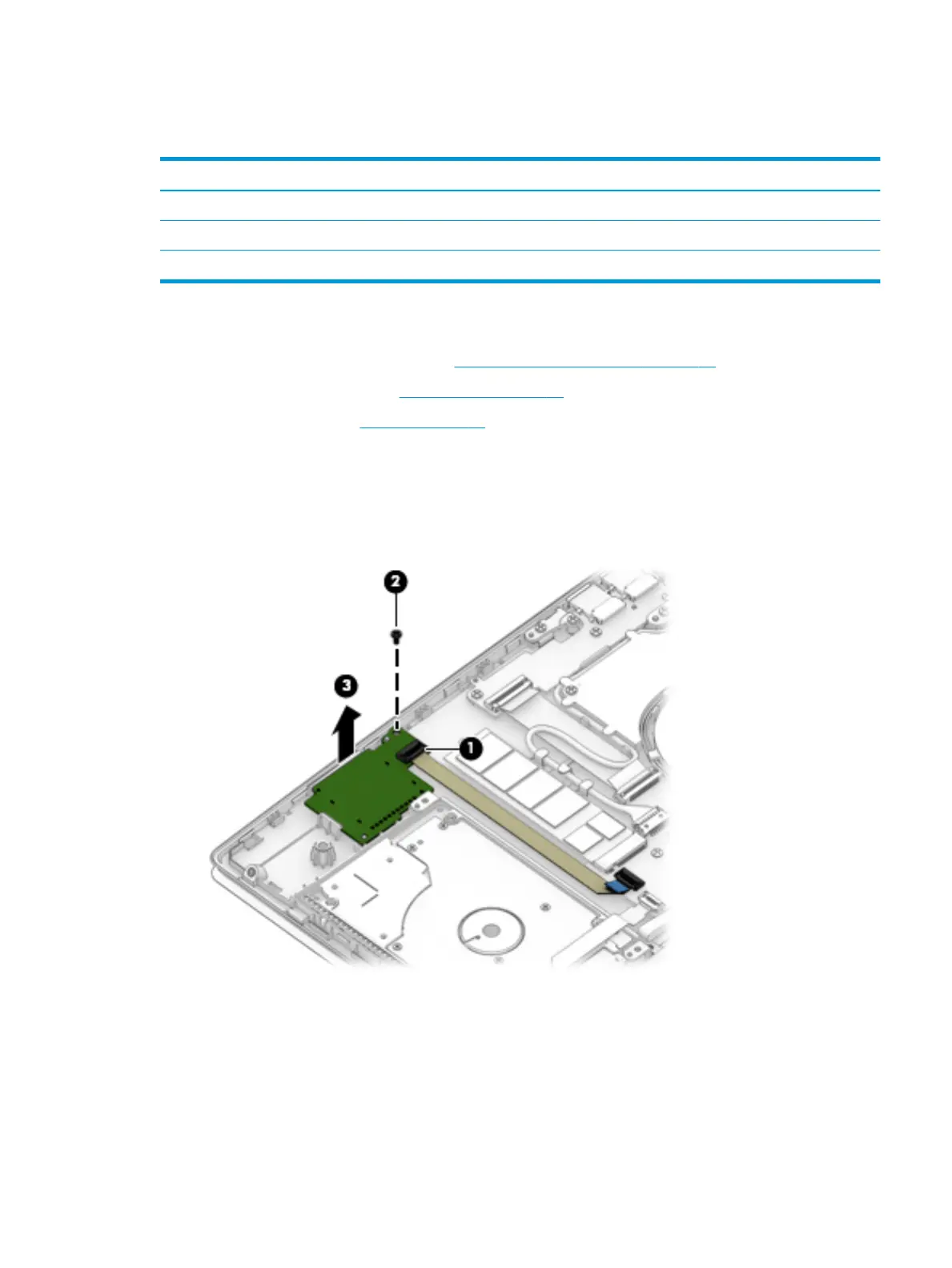

Remove the memory card reader board:
1. Disconnect the cable from the ZIF connector on the memory card reader board (1).
2. Remove the Phillips M2.0 × 4.0 screw (2) that secures the board to the computer.
3. Remove the board from the computer (3).
Remove the memory card reader board on models equipped with GTX graphics:
1. Disconnect the cable from the ZIF connector on the memory card reader board (1).
2. Remove the Phillips M2.0 × 4.0 screw (2) that secures the board to the computer.
Component replacement procedures 57
