2–8
Maintenance and Servi
ce Guide
External com
ponent identif
ication

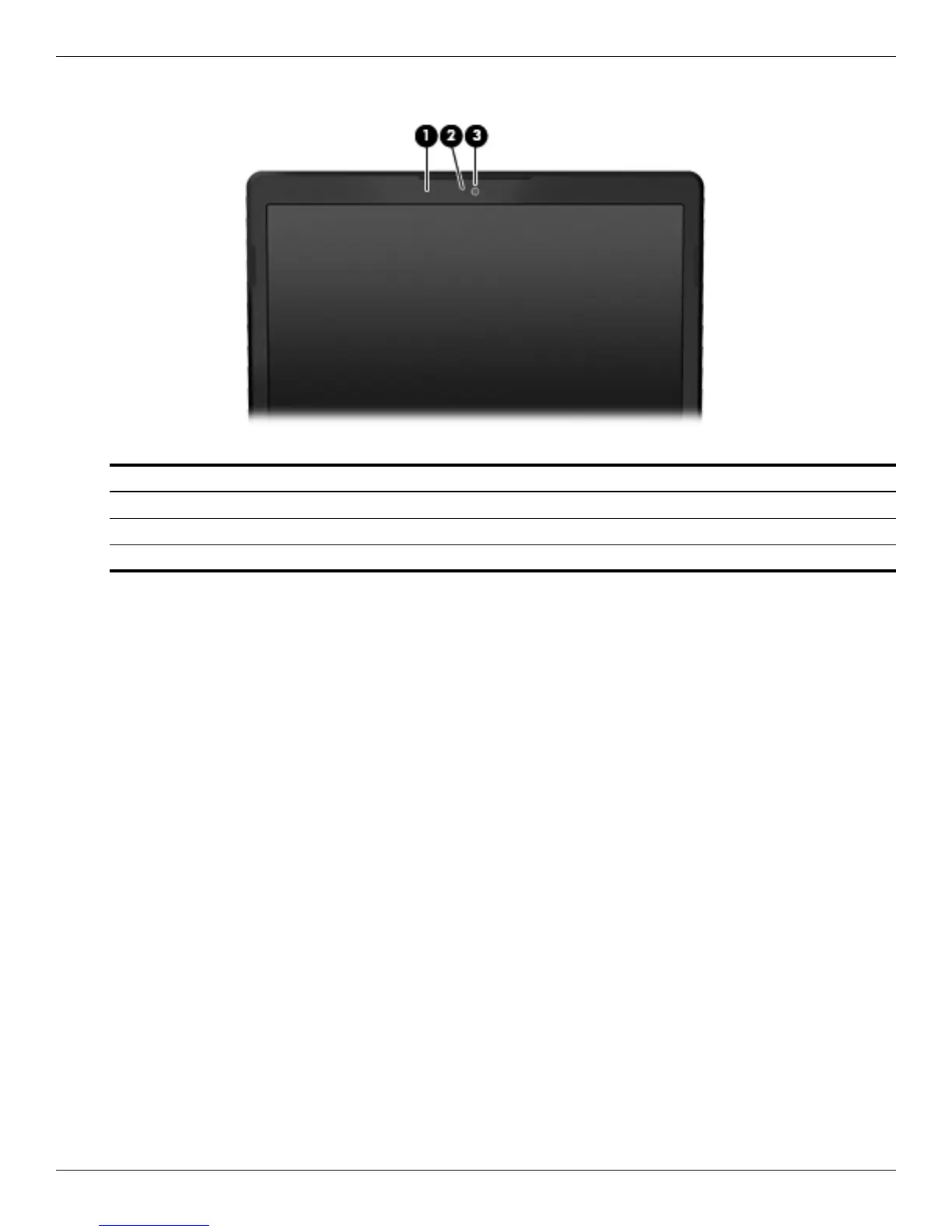

Displa
y compon
ents
Item
Component
Description
1
Internal microphone
Records sound.
2
W
ebcam light
On: The webc
am is in use
.
3
W
ebcam
Records video and captures still photographs.
21
23
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
15
Top Components
15
Pointing Devices
15
Lights
16
Keys
17
Front Components
18
Right-Side Components
19
Left-Side Components
20
Bottom Components
21
Display Components
22
Wireless Antennas
23
Additional Hardware Components
24
3 Illustrated Parts Catalog
25
Service Tag
25
Computer Major Components
26
Plastics Kit
29
Cable Kit
30
Mass Storage Devices
31
Miscellaneous Parts
32
Sequential Part Number Listing
33
4 Removal and Replacement Procedures
37
Preliminary Replacement Requirements
37
Tools Required
37
Service Considerations
37
Grounding Guidelines
38
Workstation Guidelines
40
Component Replacement Procedures
41
Service Tag
41
Computer Feet
42
Battery
42
Sim
44
Hard Drive
45
WWAN Module
47
WLAN Module
48
Memory Module
50
RTC Battery
51
Keyboard
52
Top Cover
55
Display Assembly
58
Speakers
64
Front LED Board
65
USB Board
66
Fan
67
Bluetooth Module
68
System Board
69
Power and RJ-45 Cable
71
Heat Sink
72
5 Setup Utility (BIOS)
73
Starting the Setup Utility
73
Using the Setup Utility
73
Changing the Language or the Setup Utility
73
Navigating and Selecting in Computer Setup
74
Displaying System Information
74
Restoring Default Settings in the Setup Utility
74
Exiting the Setup Utility
75
Setup Utility Menus
76
Main Menu
76
Security Menu
76
System Configuration Menu
77
Diagnostics Menu
77
6 Specifications
79
Computer Specifications
79
13.3-In LED HD Display Specifications
80
Hard Drive Specifications
81
Blu-Ray ROM DVD±R/RW Supermulti Double-Layer Drive Specifications
82
DVD±RW and CD-RW Supermulti Double-Layer Drive Specifications
83
DVD-ROM Drive Specifications
84
System DMA Specifications
85
System Memory Map Specifications
85
System Interrupt Specifications
86
System I/O Address Specifications
87
7 Screw Listing
89
Phillips PM2.0×3.0 Screw
89
Phillips PM2.0×3.0 Broadhead Screw
90
Phillips PM2.0×4.0 Screw
91
Phillips PM2.0×6.0 Screw
93
Phillips PM2.5×3.0 Screw
94
Phillips PM2.5×4.0 Screw
96
Phillips PM2.5×5.0 Screw
98
Phillips PM2.5×6.0 Screw
100
8 Backup and Recovery
101
Overview
101
Creating Recovery Discs
102
Backing up Your Information
103
Using Windows Backup and Restore
104
Using System Restore Points
104
Performing a Recovery
105
9 Connector Pin Assignments
107
Audio-In (Microphone)
107
Audio-Out (Headphone)
107
External Monitor
108
Hdmi
109
Network)
110
RJ-45 (Network)
110
Universal Serial Bus
110
10 Power Cord Set Requirements
111
Requirements for All Countries and Regions
111
Requirements for Specific Countries and Regions
112
11 Recycling
113
Battery
113
Display
113
