4–14 Maintenance and Service Guide
Removal and replacement procedures
Memory module
Before removing the memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-6).
5. Remove the memory/wireless module compartment cover (see “WLAN module” on page 4-12).
Remove the memory module:
✎
The slot nearest the front edge of the computer is for primary memory. The slot next to it is for expansion
memory.

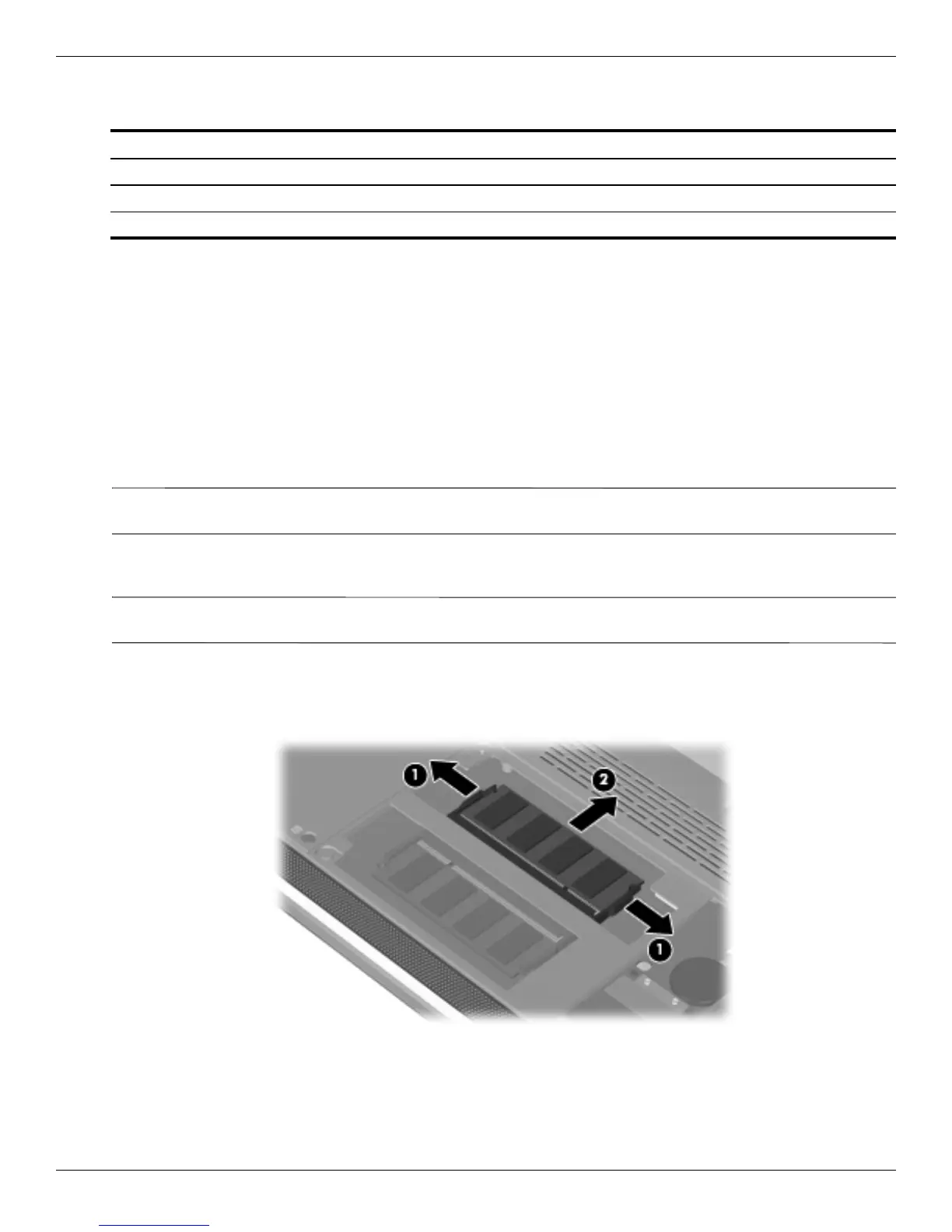

1. Pull away the retention clips 1 on each side of the memory module to release the memory module. (The
memory module tilts up.)
Ä
CAUTION: To prevent damage to the memory module, hold it by the edges only. Do not touch the components on the memory
module.
2. Grasp the edge of the memory module 2, and then pull it out of the memory module slot.
✎
Memory modules are designed with a notch to prevent incorrect insertion into the memory module slot.
Reverse this procedure to install a memory module.
Description Spare part number
1-GB memory module (800-MHz, DDR2) 580673-001
2-GB memory module (800-MHz, DDR2) 580674-001
4-GB memory module (800-MHz, DDR2) 580675-001
