4–32 Maintenance and Service Guide
Removal and replacement procedures
Bluetooth module
✎
The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth module cable is
available as spare part number 580702-001.
Before removing the Bluetooth module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-6).
5. Remove the top cover (see “Top cover” on page 4-19)
Remove the Bluetooth module and cable:

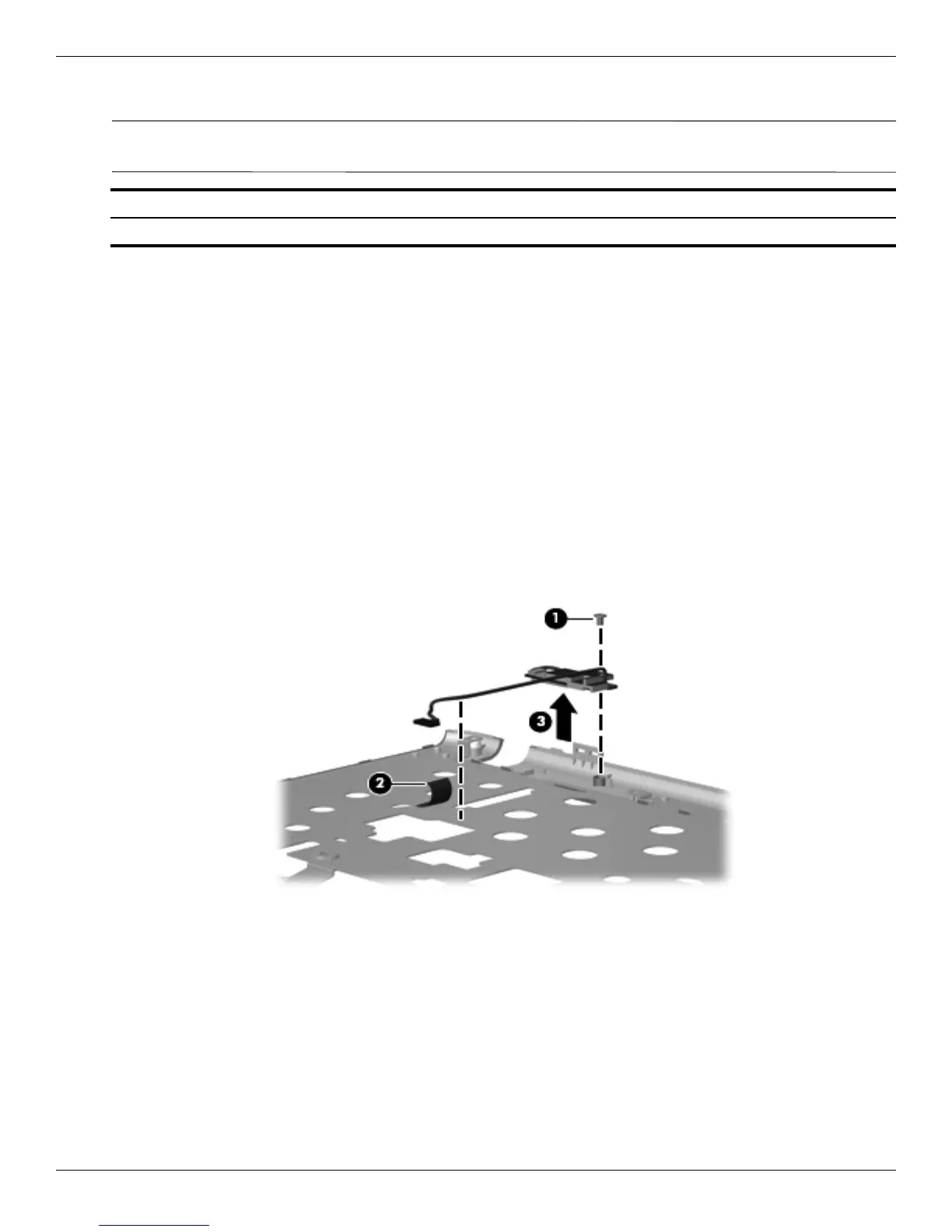

1. Remove the Phillips 2.0×4.0 screw 1 to release the Bluetooth module.
2. Lift the cable tape 2 to release the Bluetooth cable.
3. Remove the Bluetooth module 3.
4. If you are replacing the Bluetooth cable, disconnect the Bluetooth module cable from the Bluetooth module.
Reverse this procedure to install the Bluetooth module and cable.
Description Spare part number
Bluetooth module
537921-001
To Next Page
