Solid-state drive
Table 5-2 Solid-state drive descriptions and part numbers
Description Spare part number
1 TB, PCIe, Gen 3 × 4 L72515-001
512 GB, PCIe, Gen 3 × 4 L71936-001
512 GB, PCIe, Gen 3 × 2 L71934-001
256 GB, PCIe, Gen 3 × 4 L71935-001
256 GB, PCIe, Gen 3 × 2 L71933-001
128 GB, PCIe, Gen 3 × 2 L71937-001
Thermal plate for solid-state drive L84067-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (see Bottom cover on page 28).
3. Disconnect the battery (see Battery on page 37).
Remove the solid-state drive:

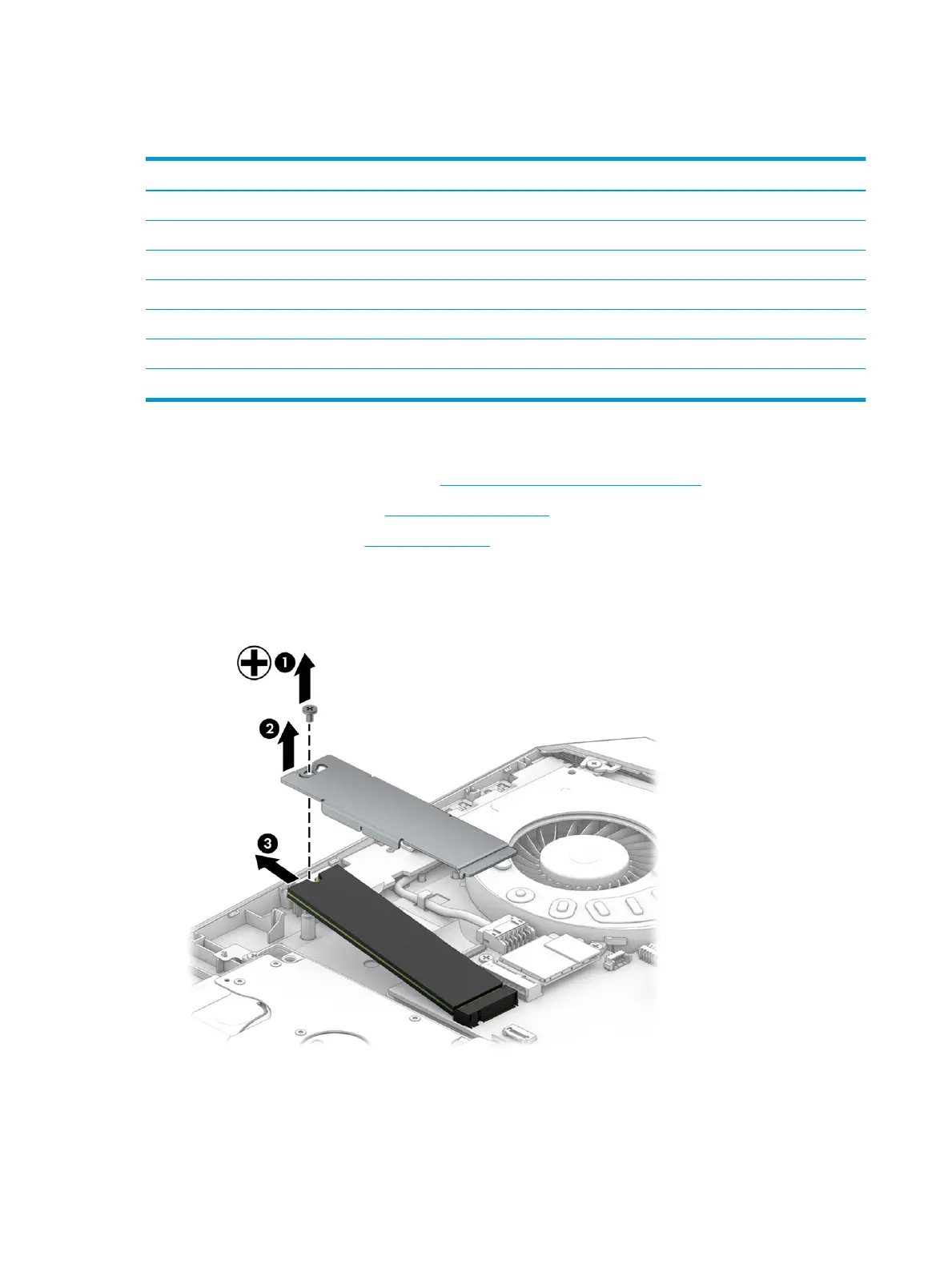

▲ Remove the Phillips M2.0 × 3.0 screw (1), lift the metal cover o the drive (2), and then pull the drive
from the socket (3).
Reverse this procedure to install the solid-state drive.
30 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
