Touchpad
NOTE: The touchpad spare part kit does not include the touchpad cable. The touchpad cable is available
using spare part number L72707-001.
Table 6-4 Touchpad description and part number
Description Spare part number
Touchpad L72709-001
Before removing the touchpad , follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (see Bottom cover on page 28).
3. Remove the battery (see Battery on page 37).

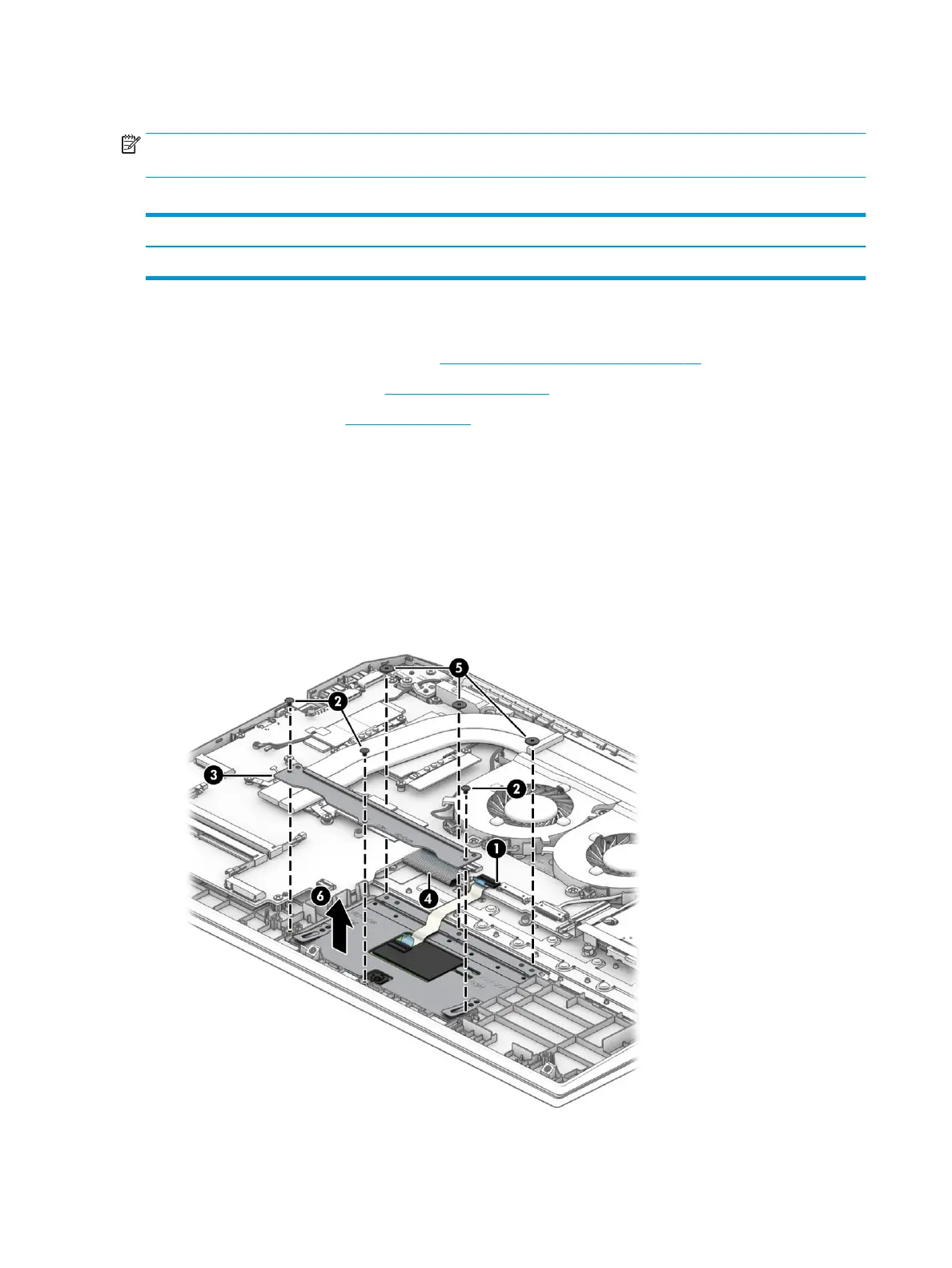

Remove the touchpad:
1. Disconnect the cable from the ZIF connector on the system board (1).
2. Remove the three Phillips M2.0 × 2.5 screws (2) that secure the touchpad bracket to the computer.
3. Remove the touchpad bracket from the computer (3).
4. Move the keyboard cable out of the way from on top of the touchpad (4).
5. Remove the three broadhead Phillips M2.0 × 2.0 screws (5) that secure the touchpad to the computer.
6. Remove the touchpad from the computer (6).
Reverse this procedure to install the touchpad.
40 Chapter 6 Removal and replacement procedures for authorized service provider parts
