Power connector
Table 6-10 Power connector description and part number
Description Spare part number
Power connector for use in 200 W models L72704-001
Power connector for use in 150 W models L72703-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (see Bottom cover on page 28).
3. Disconnect the battery (see Battery on page 37).
4. Remove the display assembly (see Display assembly on page 49).

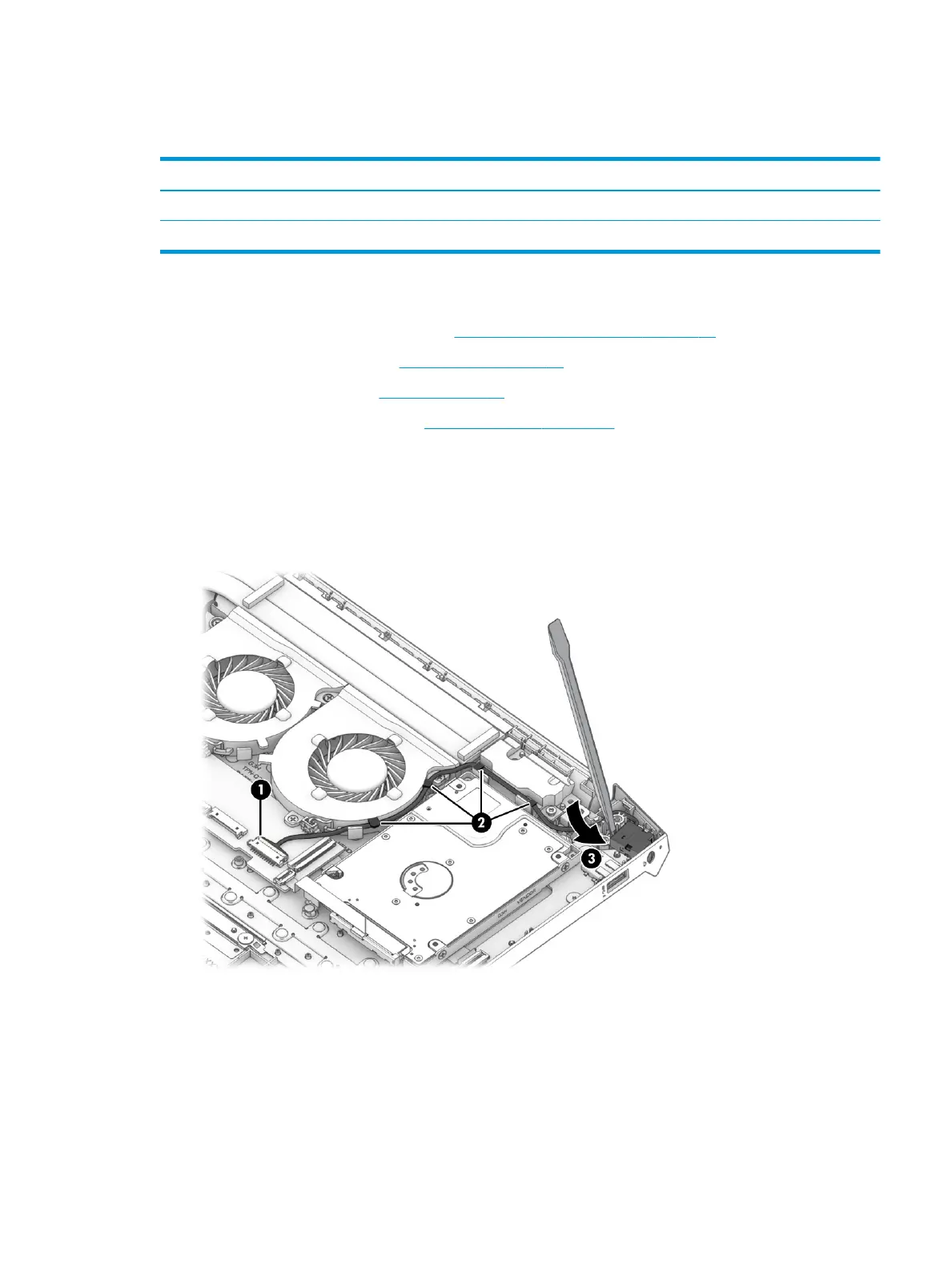

Remove the power connector cable:
1. Disconnect the cable from the system board (1).
2. Remove the cable from its routing path around the hard drive and fan (2).
3. Use a tool to release the connector (3), and then remove it from the computer.
Reverse this procedure to install the power connector cable.
