Power button/USB board
Table 6-7 USB board description and part number
Description Spare part number
Power button/USB board for use in ghost white models L72694-001
Power button/USB board for use in acid green models L72695-001
Power button/USB board for use in ultra violet models L72696-001
Before removing the power button/USB board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (see Bottom cover on page 28).
3. Disconnect the battery (see Battery on page 37).
4. Remove the hard drive (see Hard drive assembly on page 33).

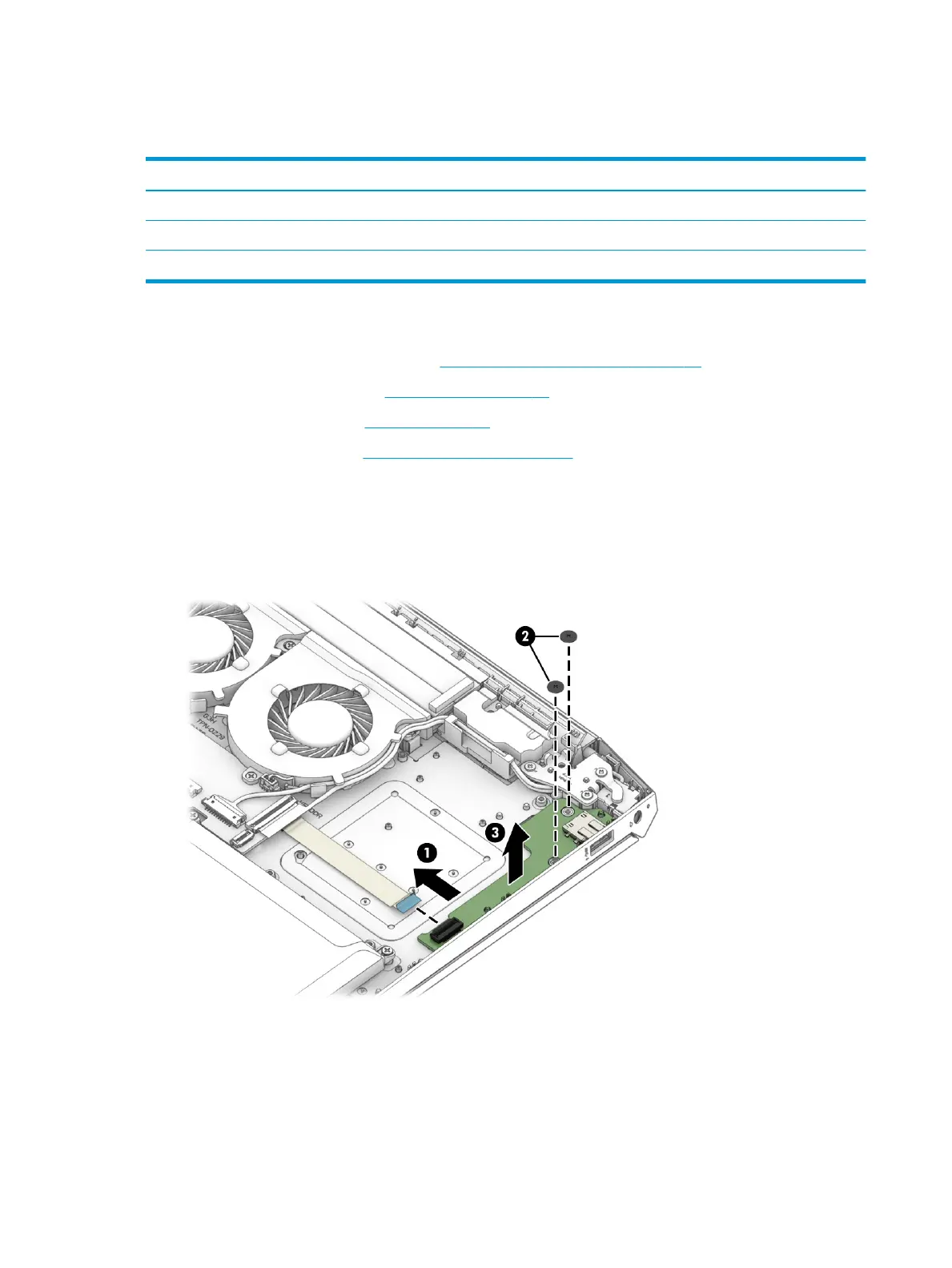

Remove the power button/USB board:
1. Disconnect the cable from the ZIF connector on the power button/USB board (1).
2. Remove the two Phillips M2.0 × 2.0 screws (2) that secure the board to the computer.
3. Remove the power button/USB board from the computer (3).
Reverse this procedure to install the power button/USB board.
44 Chapter 6 Removal and replacement procedures for authorized service provider parts
