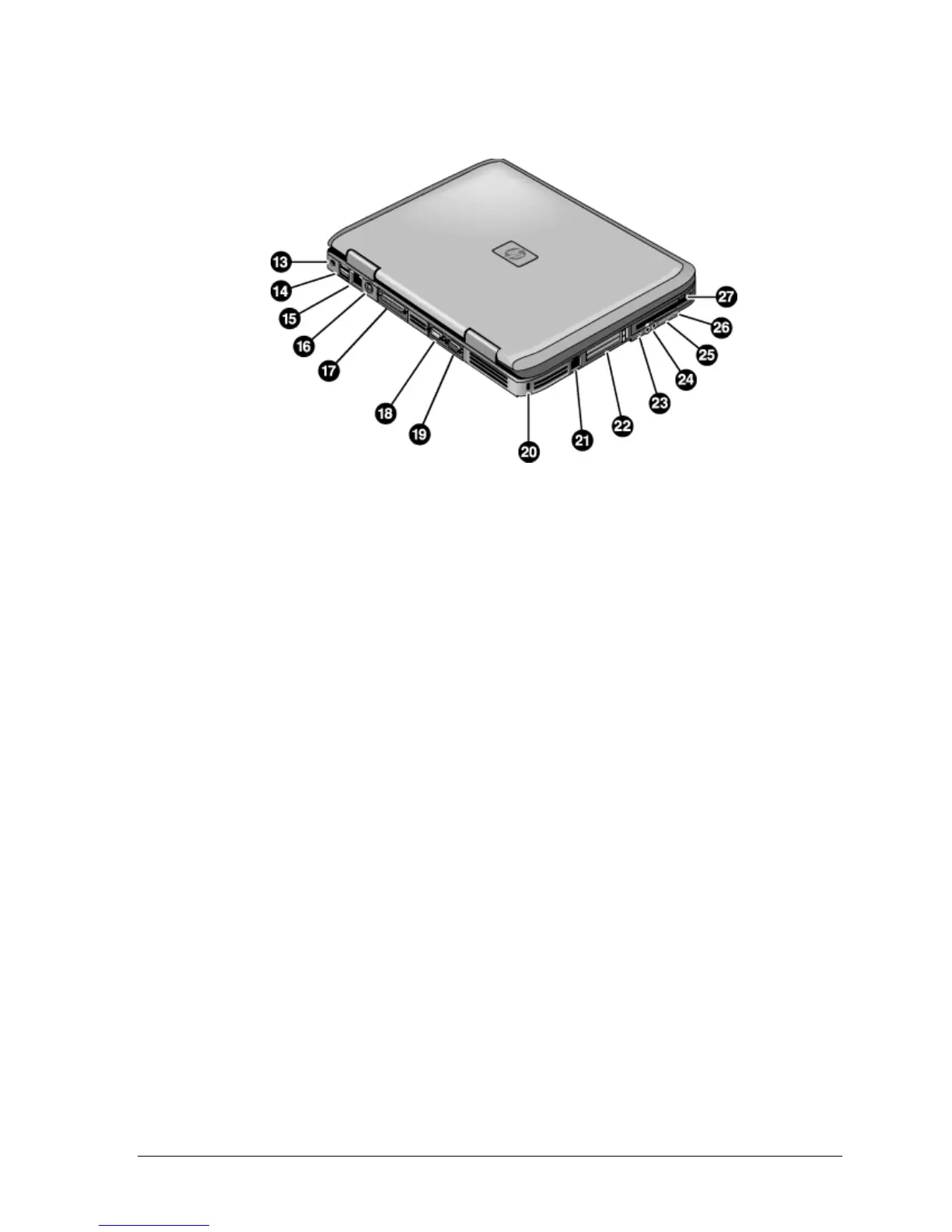

Figure 1-2. Back View
HP Pavilion 4300, 4200, and 4100, HP nx9005 and nx9000, and Compaq Presario 2100
14. Two universal serial bus (USB) ports.
15. LAN port.*
16. S-video port.*
17. Parallel port (LPT1). Use this port for a parallel
printer or other parallel device.
18. Serial port (COM1). Use this port for a serial
mouse, modem, printer, or other serial device.
19. External monitor port.
20. Kensington lock slot (security connector).
21. Modem port.*
23. IEEE 1394 port.*
24. Audio jacks (left to right): external microphone,
audio out (headphones).
25. Volume controls.*
26. Audio mute button and audio mute light.*
27. Floppy drive.*
*on certain models
13. AC adapter jack.
22. PCMCIA card and CardBus slot and button.
Service Manual Product Information 1-49
