Removing the Speaker Assembly
(User-Replaceable)
Note
The following speaker assembly removal procedures apply only to HP Pavilion 4300, 4200, and
4100, HP nx9005 and nx9000, Compaq Evo Notebook N1050 and N1010, and
Compaq Presario 2100 Series notebooks. The HP Pavilion 5300 and 5200, HP nx9010, and
Compaq Presario 2500 Series notebook speakers are integrated into the top case. Refer to the
“Removing the Top Case” section later in this chapter for procedures on removing the top case
and speakers on the HP Pavilion 5300 and 5200, HP nx9010, and Compaq Presario 2500 Series
notebooks.
Required Equipment
• #1 Phillips screwdriver.
Removal Procedure
1.
2.
3.
4.
Unplug the AC adapter, if present, and then remove the battery.
Remove the keyboard cover (page 2-12).
Remove the M2.5×6.0 mm screw that secures the speaker assembly to the top case.
Disconnect the 4-wire cable from the switchboard PCA.

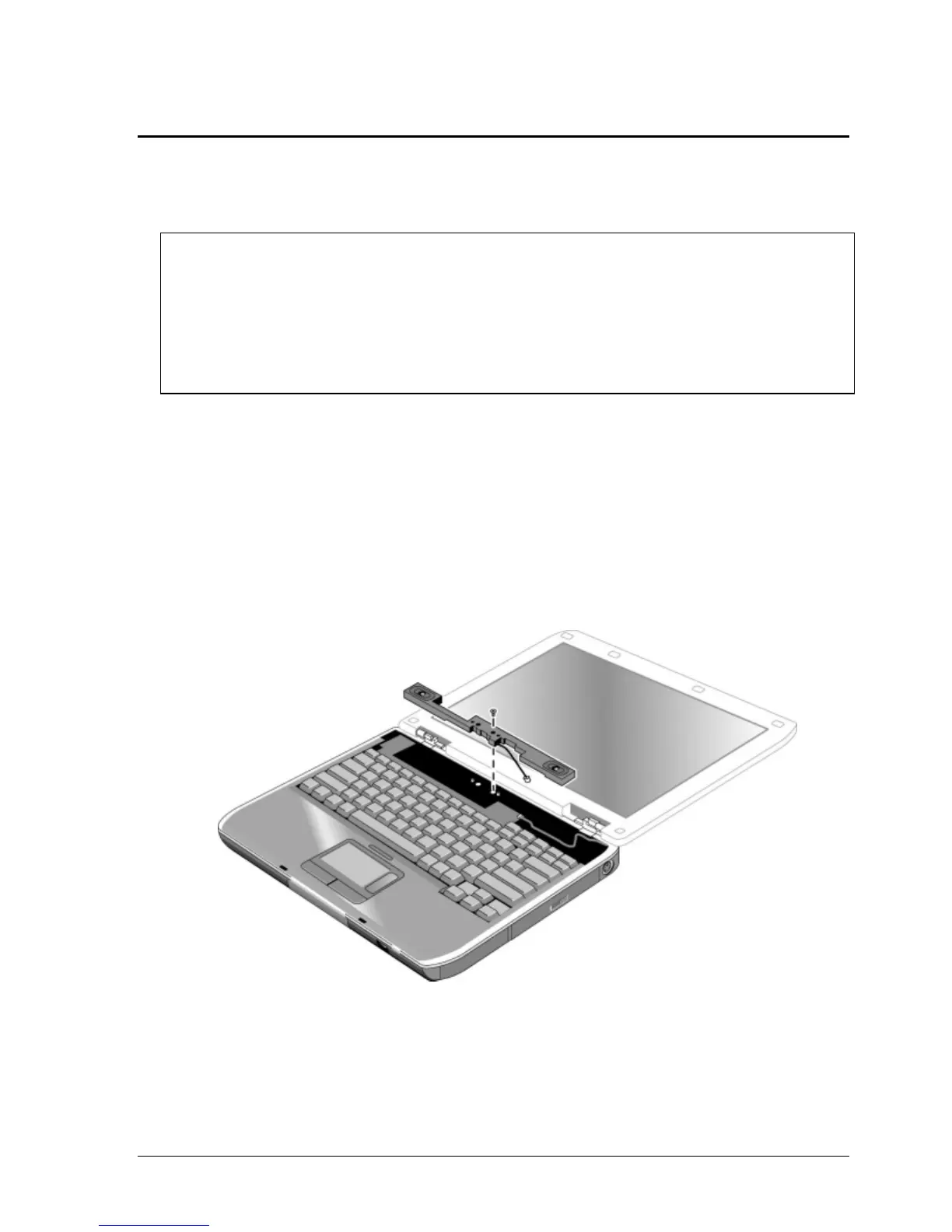

Figure 2-11. Removing the Speaker Assembly
Service Manual Removal and Replacement 2-15
