Introducing the ProCurve Wireless Access Point 530
Back of the Access Point
Introducing the ProCurve
Wireless Access Point 530
Back of the Access Point
Back Panel Covers
The access point’s ports and connectors on the back of the unit can be
protected by two removable plastic covers. One covers the Console port, Clear
and Reset buttons, RJ-45 port, and DC power connector, while allowing
twisted-pair and power cables to pass through. The other cover protects the
external antenna connectors when they are not in use.
Antennas
The access point includes internal diversity antennas for wireless communi-
cations. A diversity antenna system uses two identical antennas to receive and
transmit signals, helping to avoid multipath fading effects. When receiving,
the access point checks both antennas and selects the one with the strongest
signal. When transmitting, it will continue to use the antenna previously
selected for receiving. The access point never transmits from both antennas
at the same time.

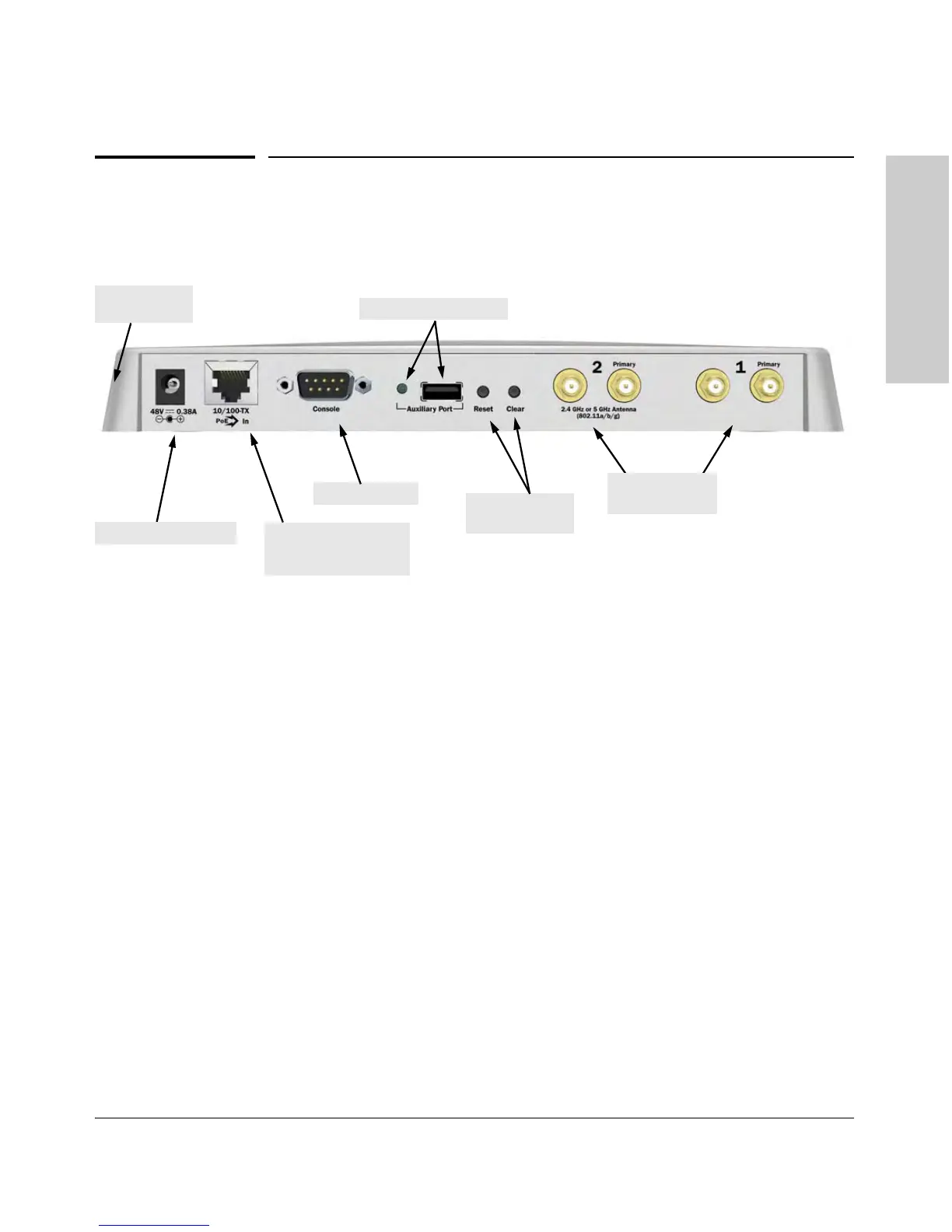

Reset and Clear
buttons
External Antenna
connectors
ProCurve Wireless Access Point 530
Network port
10/100Base-TX RJ-45
port and PoE input
DC power connector
Console port
Lock
(on side panel)
Auxiliary port and LED
