Fan
IMPORTANT: System fan only ships with select models. Most models do NOT include a system fan. On
models without a fan, Mylar covers the inside of the fan grill on the rear of the computer.
1. Prepare the computer for disassembly (Preparation for disassembly on page 23).
2. Remove the access panel (
Access panel on page 24).

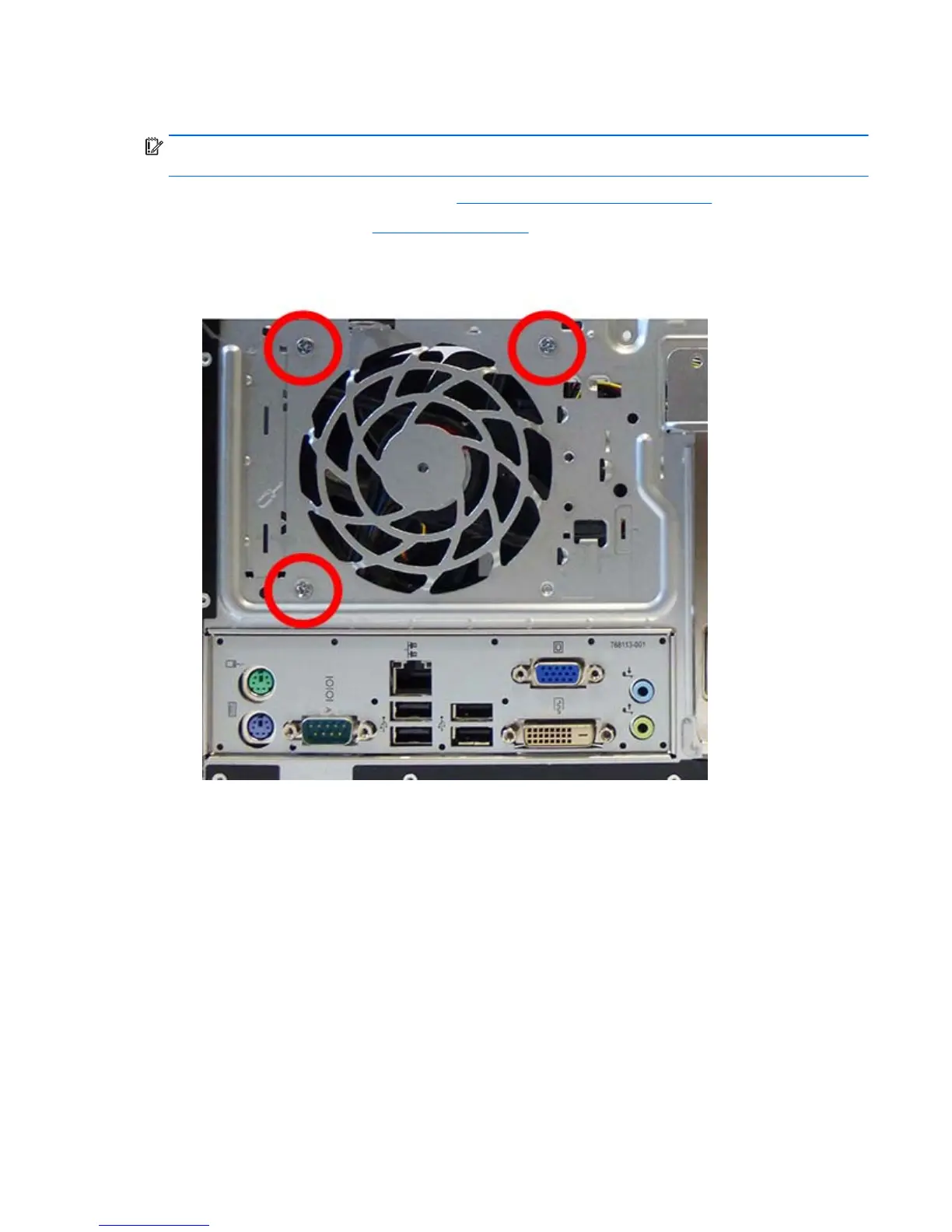

3. From the outside, rear of the chassis, remove the three Phillips screws that secure the fan to the
chassis.
4. From the inside of the chassis, disconnect the fan control cable (1) from the system board connector
labeled CHFAN2.
Fan 53
