Power supply
NOTE: System board appearance may vary.
Description
300W, Active PFC + SEPA
180W, Energy Star 5.0
180W, Active PFC
180W, regular
1. Prepare the computer for disassembly (Preparation for disassembly on page 23).
2. Remove the access panel (
Access panel on page 24).

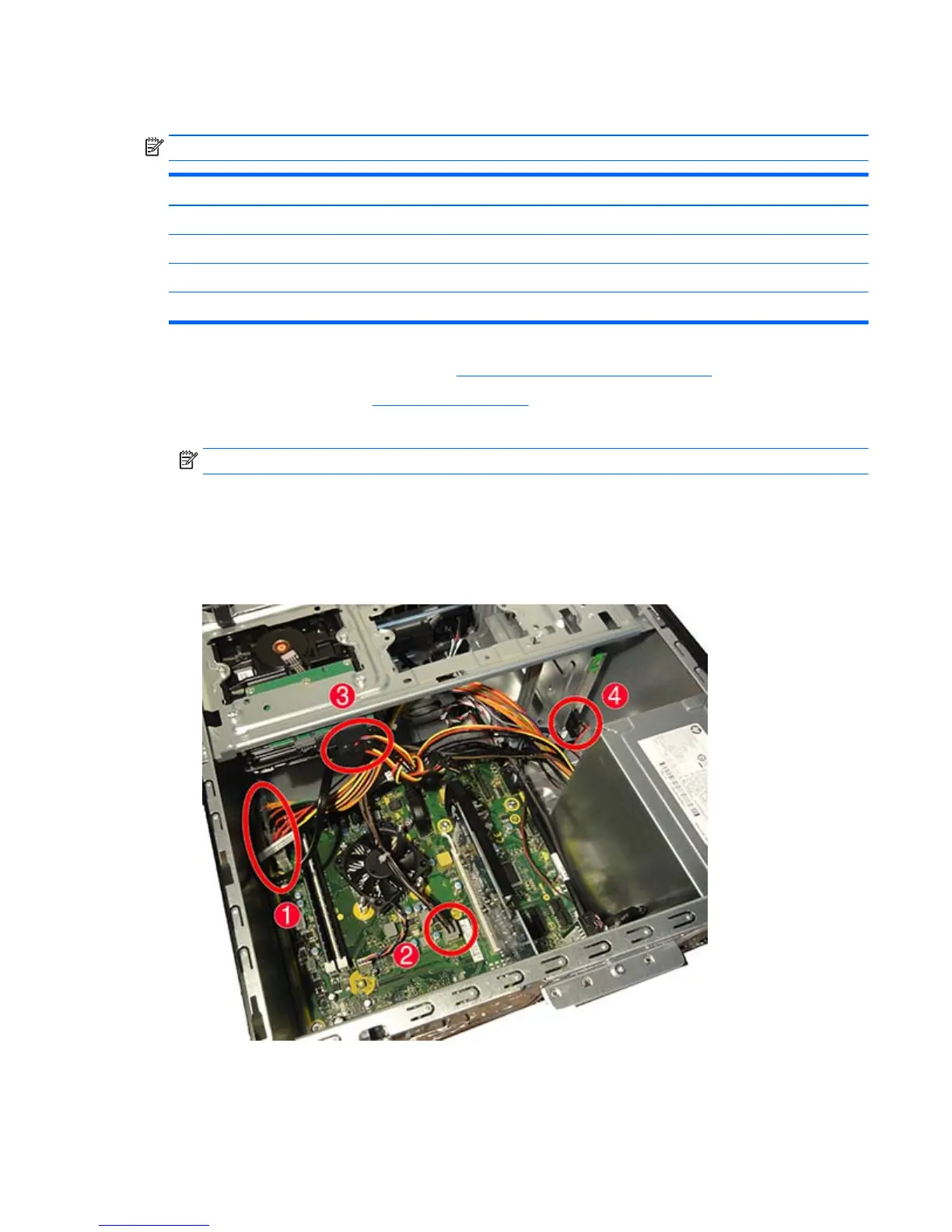

3. Disconnect the power cables from the installed drives and the system board connectors:
NOTE: Installed drives may vary.
(1): Main system board power connector (labeled ‘PWR’)
(2): Processor system board power connector (labeled ‘PWRCPU’)
(3): Primary hard drive
(4): Optical drive
Power supply 55
