Model 4342A
Section VI

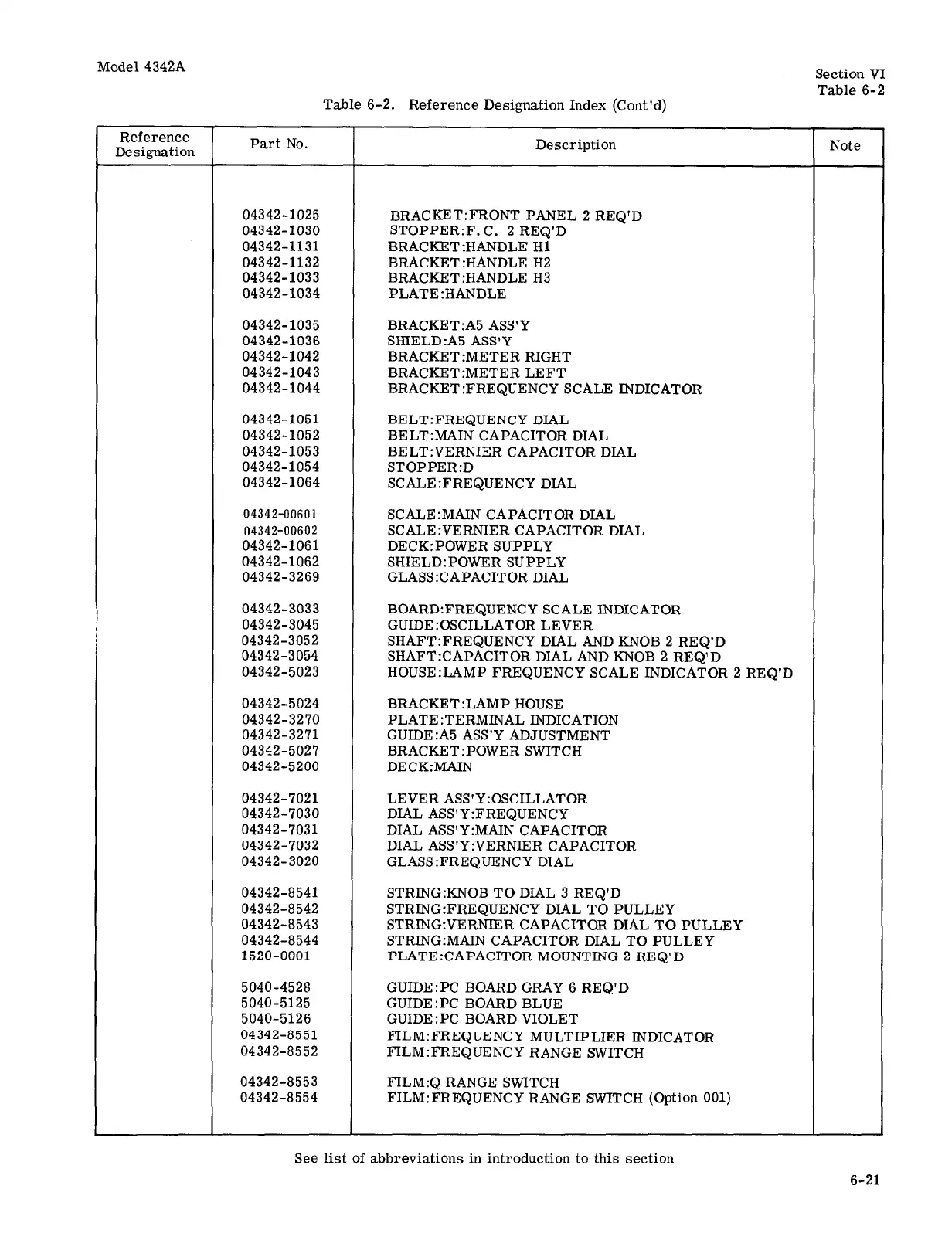

Table 6-2. Reference Designation Index (Cont’d)
Reference
Designation
Part No. Description
Note
04342-1025 BRACKET:FRONT PANEL 2 REQ’D
04342-1030 STOPPER:F. C. 2 REQ’D
04342-1131 BRACKET :HANDLE Hl
04342-1132 BRACKET :HANDLE H2
04342-1033 BRACKET:HANDLE H3
04342-1034 PLATE:HANDLE
04342-1035 BRACKET :A5 ASS’ Y
04342-1036
SHIELD :A5 ASS’Y
04342-1042 BRACKET:METER RIGHT
04342-1043 BRACKET:METER LEFT
04342-1044 BRACKET:FREQUENCY SCALE INDICATOR
04342-1051 BELT:FREQUENCY DIAL
04342-1052 BELT:MAIN CAPACITOR DIAL
04342-1053
BELT:VERNIER CAPACITOR DIAL
04342-1054 STOPPER:D
04342-1064 SCALE:FREQUENCY DIAL
04342-00601
SCALE :MAIN CAPACITOR DIAL
04342-00602
SCALE :VERNIER CAPACITOR DIAL
04342-1061 DECK:POWER SUPPLY
04342-1062 SHIELD:POWER SUPPLY
04342-3269 GLASS:CAPACITOR DIAL
04342-3033 BOARD:FREQUENCY SCALE INDICATOR
04342-3045
GUIDE :OSCILLATOR LEVER
04342-3052 SHAFT:FREQUENCY DIAL AND KNOB 2 REQ’D
04342-3054 SHAFT:CAPACITOR DIAL AND KNOB 2 REQ’D
04342-5023 HOUSE:LAMP FREQUENCY SCALE INDICATOR 2 REQ’D
04342-5024 BRACKET:LAMP HOUSE
04342-3270 PLATE:TERMINAL INDICATION
04342-3271 GUIDE:A5 ASS’Y ADJUSTMENT
04342-5027 BRACKET:POWER SWITCH
04342-5200 DECK:MAIN
04342-7021 LEVER ASS’YXXCILLATOR
04342-7030 DIAL ASS’Y:FREQUENCY
04342-7031
DIAL ASS’Y:MAIN CAPACITOR
04342-7032 DIAL ASS’Y:VERNIER CAPACITOR
04342-3020 GLASS:FREQUENCY DIAL
04342-8541 STRINGKNOB TO DIAL 3 REQ’D
04342-8542 STRING:FREQUENCY DIAL TO PULLEY
04342-8543
STRING:VERNIER CAPACITOR DIAL TO PULLEY
04342-8544 STRING:MAIN CAPACITOR DIAL TO PULLEY
1520-0001 PLATE :CAPACITOR MOUNTING 2 REQ’ D
5040-4528 GUIDE:PC BOARD GRAY 6 REQ’D
5040-5125
GUIDE:PC BOARD BLUE
5040-5126 GUIDE :PC BOARD VIOLET
04342-8551
FILM:FREQUENCY MULTIPLIER INDICATOR
04342-8552
FILM:FREQUENCY RANGE SWITCH
04342-8553 FILM:Q RANGE SWITCH
04342-8554 FILM:FREQUENCY RANGE SWITCH (Option 001)
See list of abbreviations in introduction to this section
