Model 4342A
Section VI
Figure 6-2
Item
No.
Part No.
Q’ty
Description
Note
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
04342-3267
04342-3259
04342-3256
04342-3267
2360-0185
0520-0164
*
*
*
2360-0185
*
*
05 10-0045
1410-0307
*
*
*
*
*
0510-0045
1410-0307
04342-7503
*
0434215035
04342-8524
0510-0080
04342-3222
1410-0307
*
*
0434215035
04342-8524
0510-0080
04342-3223
1410-0307
*
*
*
*
*
*
*
*
0434237205
*
*
*
*
*
*
*
3030-*0033
1
4
1
1
2
6
1
2
2
4
1
1
1
1
:
1
1
1
2
1
2
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
2
1
2
1
1
1
2
2
1
CONNECTOR:HEXAGGNAL GROUND LUG
CAP:BINDING POST
BOARD :TERMINAL TEFLON
CONNECTOR:HEXAGONAL GROUND LUG
SCREW:MACH SST 6-32 X .375
SCREW:MACH SST 2-56
CONNECTOR:BINDING POST BODY
CONNECTOR:BINDING POST BODY
1NSULATOR:BOSS
SCREW:MACH SST 6-32 X. 375
PLATE :TERMINAL
STATOR ASSEMBLY
RING:RET EXT .188 DIA
BEARING
PLATE
TRANSFORMER ASS’Y:INJECTION
NUT:HEX P=O. ‘75mm
SCREW:BRASS P=O. 75mm
BALL:SST
RING:RET EXT .188 DIA
BE ARING
GEAR ASS’Y
BRASH:PH BRZ CHEMICAL Au PLATED
NUT:HEX SST 6-32 THRD
PULLEY:MOLDED
SPRING:COIL
RING:RET EXT ,500 DIA E TYPE
SHAFT:MAIN CAPACITOR
BEARING
BALL:SST
SCREW:BRASS P=O. 75mm
NUT:HEX P=O. 75mm
PULLEY:MOLDED
SPRING:COIL
RING:RET EXT .500 DIA E TYPE
SHAFT:VERNIER CAPACITOR
BEARING
DECK:CASTING
INSULATOR:DELRIN
GEAR ASS’Y
RING:RET EXT . 188 DIA E TYPE
VERNIER CAPACITOR ASS’Y
WASHER:FLAT PHS. BRS (SELECTED)
ROTOR ASS’Y
1NSULATOR:DELRIN
SCREW:MACH SST 6-32 X .500
C DIVIDER ASS’Y
NUT:HEX lo-32 X . 375
PIN
SCREW:SET
WASHER:FLAT BRASS
WASHER:WAVY
PLATE
WASHER:LOCK EXT
SCREW:MACH 6-32 X 3/8
SCREW:SET 6-32 X .188 LG HEX SKT . DR
*: NOTSEPARATELY REPLACEABLE

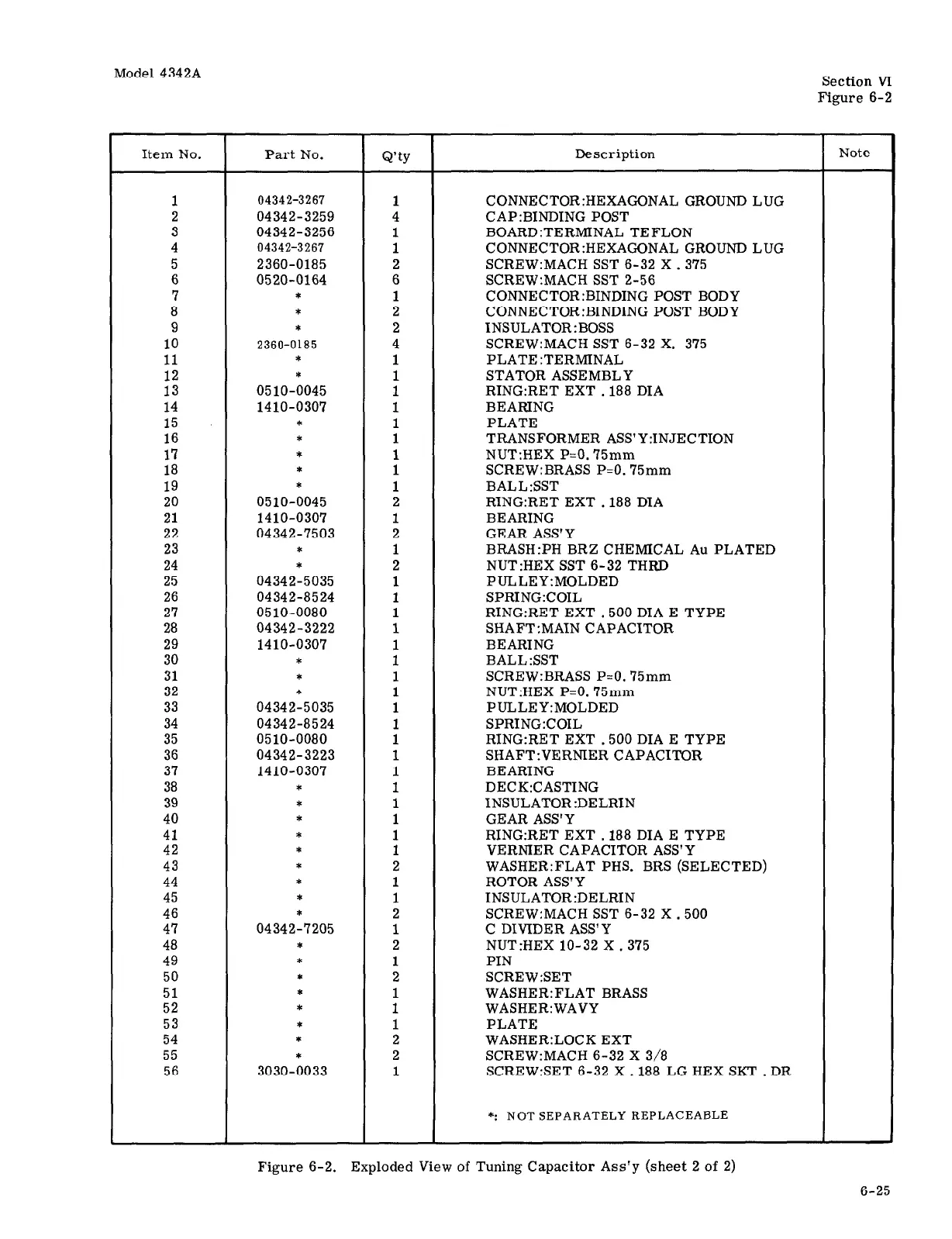

Figure 6-2. Exploded View of Tuning Capacitor Ass’y (sheet 2 of 2)
6-25
