HP Q METER 4342A User Manual

Model 4342A
Set tion
v-l
Figure 6-4
Item No. Part No.
Q’ty
Description
Note
1 04342-3020 1
2 0361-0078 2
3 2200-0166 1
4
0460-0126 2
5 0510-0741 2
6 3050-0067 1
7 2360-0113 2
8 2190-0018
2
9 3050-0016 2
10 04342-7710 1
11 04342-5022 1
12 3050-0079
3
13 2190-0223
3
14 0520-0129
3
15 0460-0126 1
16
0610-0001 1
17 2190-0223 1
18 3050-0098 1
19 04342-5023 2
20 04342-5024
1
21 0520-0183 1
GLASS:FREQUENCY DIAL
RIVET:SEMITUB ALUM. 123 DIA
SCREW:MACH SST 4-40 X .312
TAPE:POLYESTER METALIZED
BRACKET 90 DEG ANGLE
WASHER:FLAT .375 ID
SCREW:MACH SST 6-32 X 125
WASHER:LOCK HELICAL
WASHER:BRASS 147 ID .
PC BOARD ASS’Y
SEPARATOR:LAMP P/O ITEM 10
WASHER:NYLON .0937 ID
WASHER:SPRING .09 37
SCREW:MACH SST 2-56 X .321
TAPE:POLYESTER METALIZED
NUT:HEX 2-56 188 WD, .063 THK .
WASHER:SPRING
WASHER:SST 25 OD, 0313 THK .
HOUSE:LAMP FREQUENCY SCALE INDICATOR
BRACKET:LAMP HOUSE
SCREW:MACH SST 2-56 X 1.25

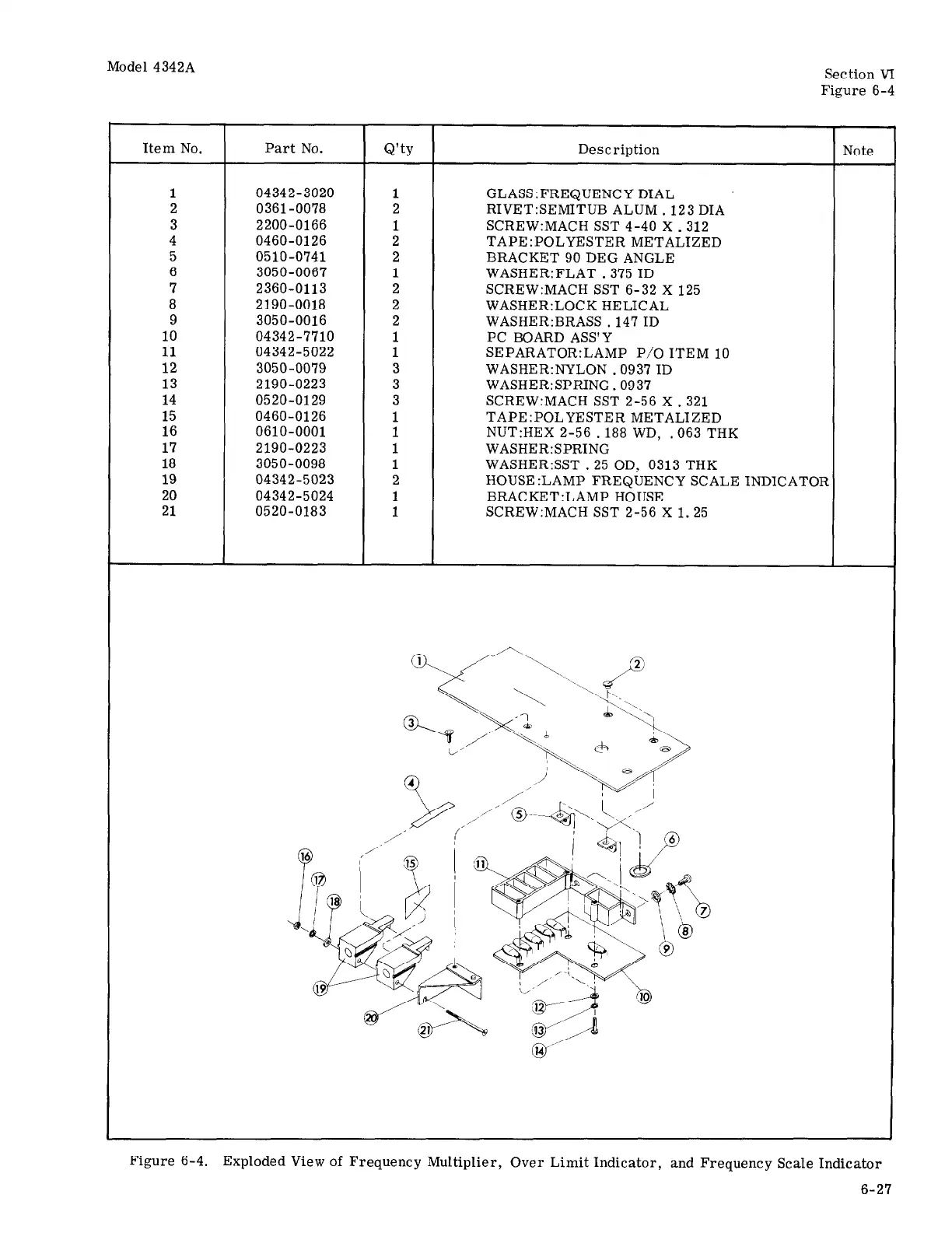

Figure 6-4. Exploded View of Frequency Multiplier, Over Limit Indicator, and Frequency Scale Indicator
6-27
