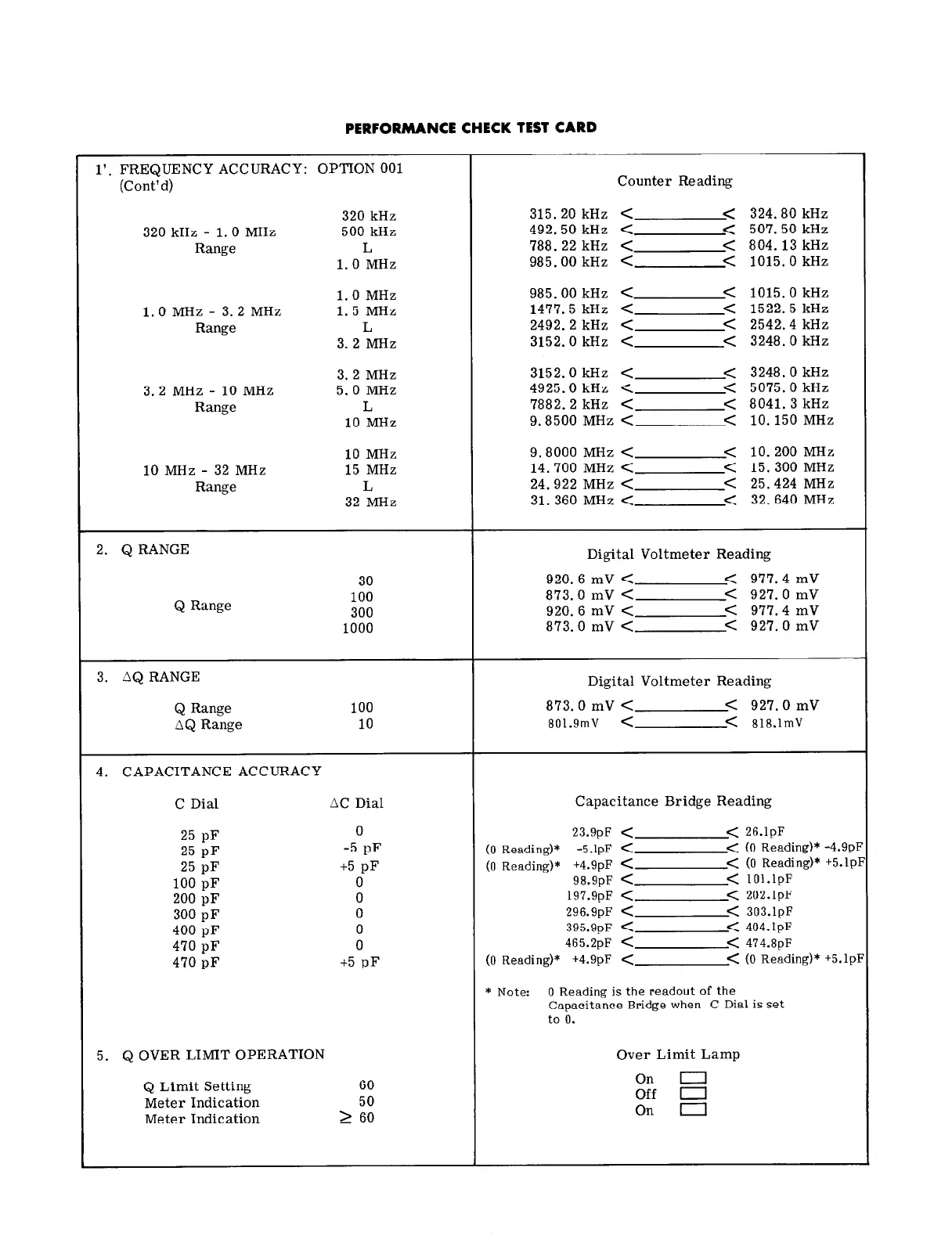

PERFORMANCE CHECK TEST CARD
1’. FREQUENCY ACCURACY: OPTION 001
(Cont’d)
320 kHz
320 kHz - 1.0 MHz
500 kHz
Range L
1.0 MHz
1.0 MHz
1.0 MHz - 3.2 MHz 1.5 MHz
Range L
3.2 MHz
3.2 MHz
3.2 MHz - 10 MHz
5.0 MHz
Range
L
10 MHz
10 MHz
10 MHz - 32 MHz 15 MHz
Range L
32 MHz
Counter Reading
315.20 kHz C < 324.80 kHz
492.50 kHz < < 507.50 kHz
788.22 kHz <
< 804.13 kHz
985.00 kHz <
< 1015.0 kHz
985.00 kHz <
< 1015.0 kHz
1477.5 kHz C < 1522.5 kHz
2492.2 kHz < < 2542.4 kHz
3152.0 kHz < < 3248.0 kHz
3152.0 kHz < < 3248.0 kHz
4925.0 kHz <
< 5075.0 kHz
7882.2 kHz < < 8041.3 kHz
9.8500 MHz < < 10.150 MHz
9.8000 MHz <
< 10. 200 MHz
14.700 MHz < < 15. 300 MHz
24.922 MHz < < 25.424 MHz
31. 360 MHz < < 32.640 MHz
2. Q RANGE
Q Range
30
100
300
1000
Digital Voltmeter Reading
920. 6 mV < < 977.4 mV
873.0 mV < < 927.0 mV
920.6 mV <
< 977.4 mV
873.0 mV < < 927.0 mV
3. aQ RANGE
Q Range
nQ Range
100
10
Digital Voltmeter Reading
873.0 mV < < 927.0 mV
801.9mV < < 818.lmV
4. CAPACITANCE ACCURACY
C Dial
AC Dial Capacitance Bridge Reading
25 pF
0 23.9pF < < 26.lpF
25 pF
-5 pF
(0 Reading)* -5.lpF <
< (0 Reading)* -4.9pE
25 pF
+5 pF (0 Reading)* +4.9pF <
< (0 Reading)* +5.lpE
100 pF
0 98.9pF < < lOl.lpF
200 pF 0
197.9pF < < 202.lpF
300 pF
0 296.9pF <
< 303.lpF
400 pF
0 395.9pF <
< 404.lpF
470 pF
0 465.2pF <
< 474.8pF
470 pF 15 pF
(0 Reading)* +4.9pF <
< (0 Reading)* +5.lpF
* Note: 0 Reading is the readout of the
Capacitance Bridge when C Dial is set
to 0.
5. Q OVER LIMIT OPERATION
Over Limit Lamp
Q Limit Setting 60
On I
Meter Indication 50
Off 0
Meter Indication
2 60
On 0
