Drive connector and cables
The drive connector and cables assembly is connected to the bottom of the drive cage.
1. Prepare the computer for disassembly (
Preparation for disassembly on page 19).
2. Remove the front panel (
Front panel on page 31).

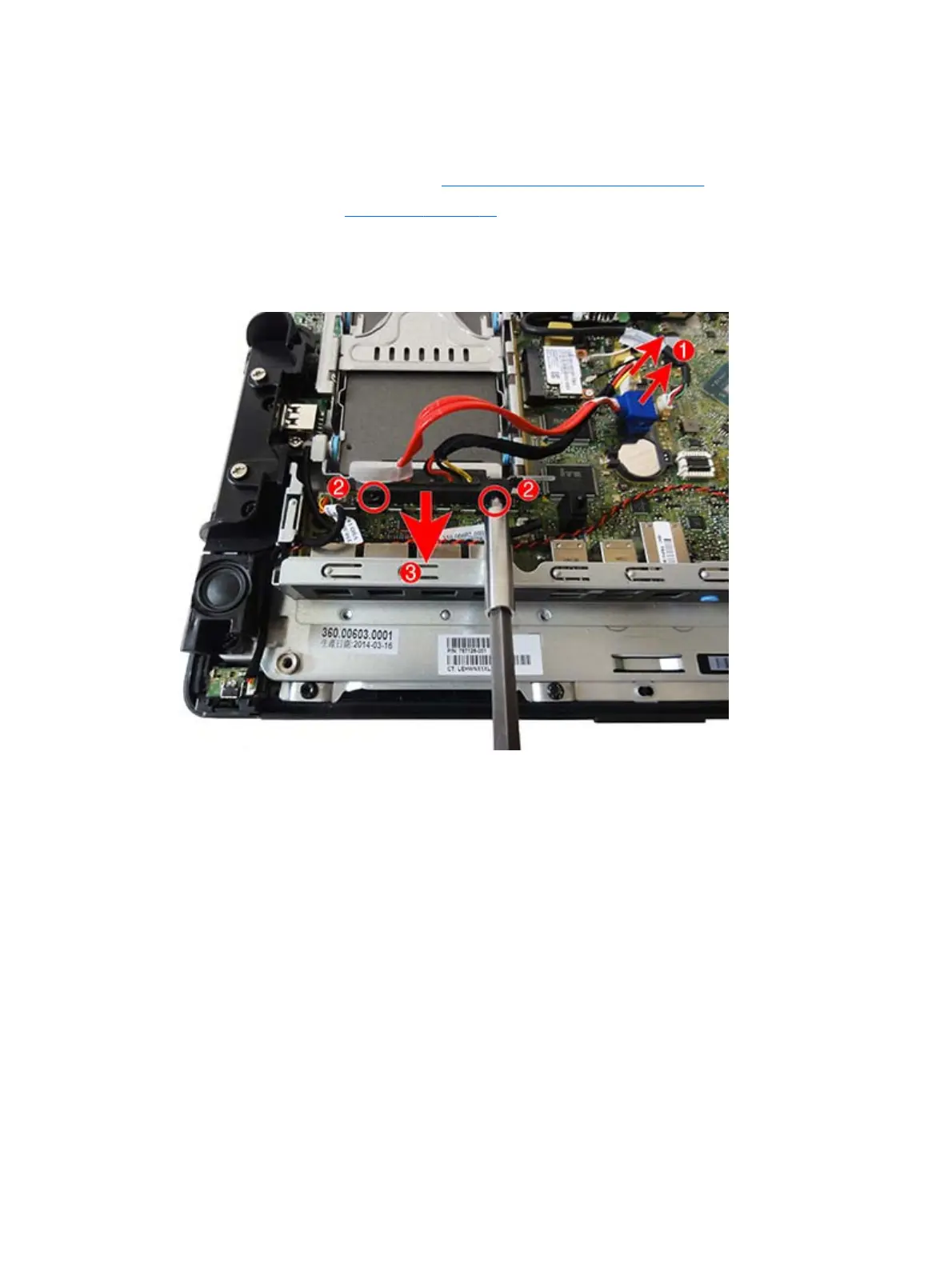

3. Disconnect the drive data cable and drive power cable (1) from the system board.
4. Remove the two Torx screws that secure the connector to the drive cage (2), and then remove the drive
connector and cables from the computer (3).
42 Chapter 5 Removal and replacement procedures
