Tape Drive Installation and Replacement
34 1U Rackmount Tape Enclosure Reference Guide
Note: Each SCSI device on the same SCSI bus must have a unique SCSI ID. Be sure that
the SCSI ID is different for each drive and that neither is set to SCSI ID 7
Two drives on two SCSI buses
Use the configuration shown in Figure 24 when connecting each drive to separate
SCSI buses.

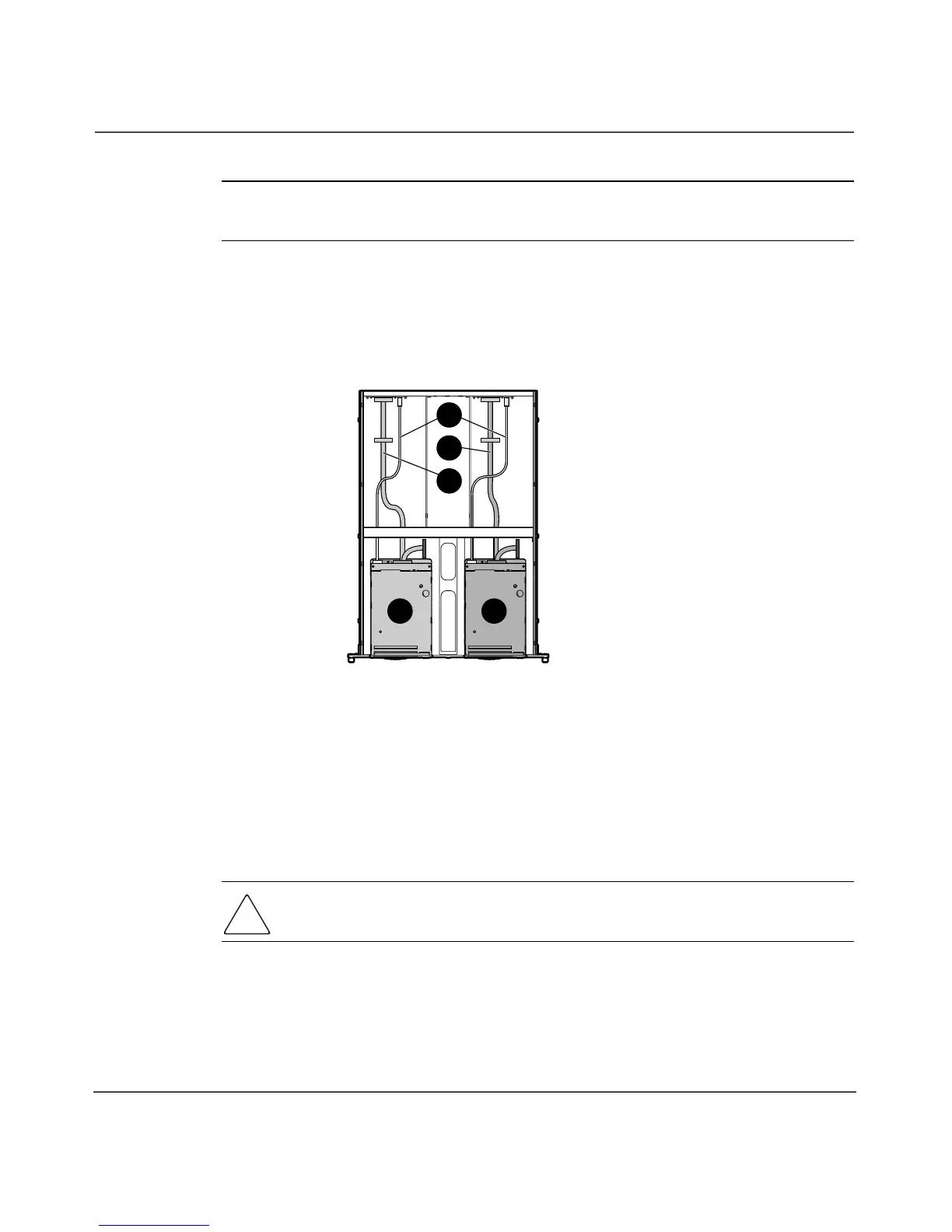

Figure 24: Two drives on two SCSI buses
1 Tape drive 1
2 Tape drive 2
3 SCSI bus 1 cable, SCSI connector nearest terminator is used for drive 1
4 SCSI bus 2 cable, SCSI connector nearest terminator is used for drive 2
5 SCSI ID cables, one for each tape drive
Caution: To prevent possible data errors, when there is only one drive on a
SCSI bus that drive must be connected to the SCSI port closest to the terminator.
15105
1 2
5
4
3
