2. Lift the drive bracket latch (1) and slide the drive bracket out of the retention bracket (2).

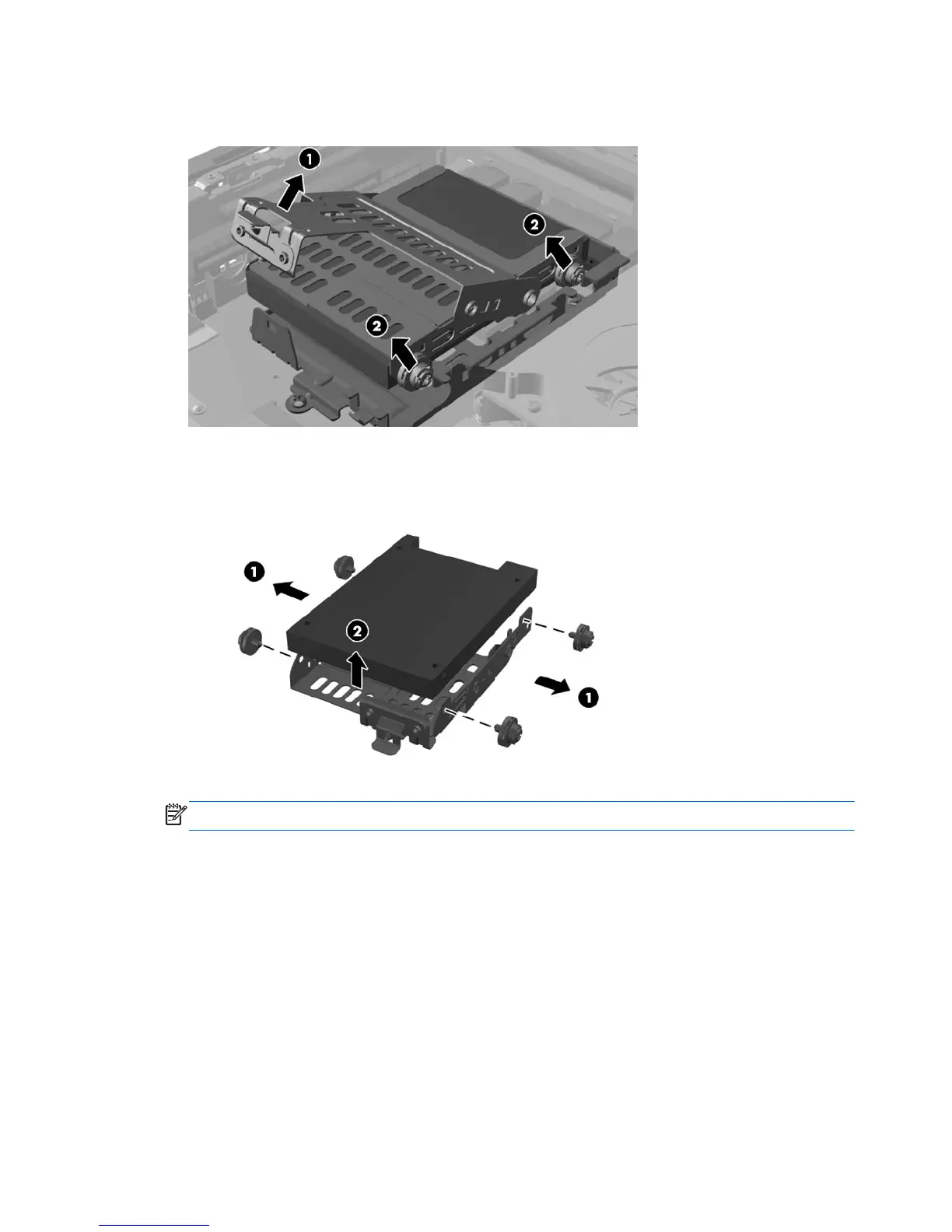

Figure 2-15 Removing the hard drive bracket from the retention assembly
3. Remove the four screws that secure the hard drive in the drive bracket (1) and remove the hard
drive from the bracket (2).
Figure 2-16 Removing the hard drive from the drive bracket
NOTE: Keep the four screws to use to install another hard drive.
Installing an internal hard drive
To install an internal hard drive:
1. If a PCIe card is installed, remove it.
