Base enclosure
Description Spare part number
Base enclosure 906112-001
Before removing the base enclosure, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Service door (see Service door on page 30).
b. Battery (see Battery on page 31).
Remove the base enclosure:

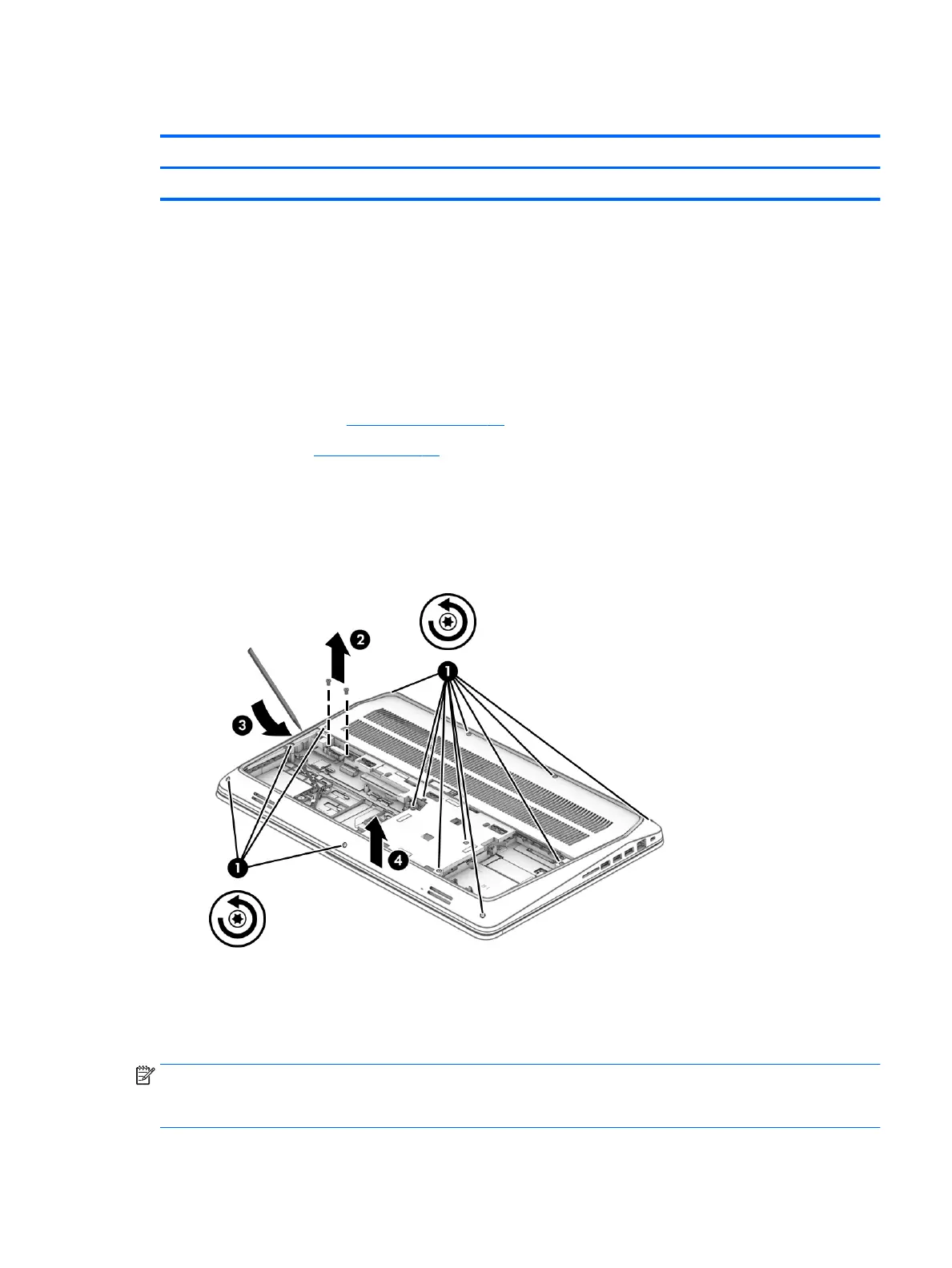

1. Loosen 14 Torx screws(1), and then remove 2 Phillips screws(2) from the base enclosure.
2. Using a plastic tool (3), loosen the base enclosure, and then remove it from the computer (4).
Reverse this procedure to install the base enclosure.
Hard drive(s) and internal frame
NOTE: The hard drive spare kit does not include the hard drive bracket or hard drive cable. The hard drive
bracket, screws, and hard drive cable are included in the Hard Drive Hardware Kit, spare part number
848351-001.
Component replacement procedures 33
